The Angle-Ease fi ts
motors from these routers:
Router Model
Porter Cable 7518
Milwaukee 5625
Porter Cable 892
Porter Cable 690
DeWalt 616/618
Bosch 1617/1618
Makita RF1100
Hitachi M12VC
Ridgid 2900/2930
Part#
Description
Qty.
WB002
Washer
4
FITS 3.5"
FITS 4.2"
ANGLE-
ANGLE-
EASE
EASE
No
Yes
No
W/ Shim
Yes
W/ Adapter R1
Yes
W/ Adapter R1
Yes
W/ Adapter R1
Yes
W/ Adapter R1
No
W/ Adapter R2
No
W/ Adapter R3
No
W/ Adapter R4
Part#
Description
Ringpin1 Pin

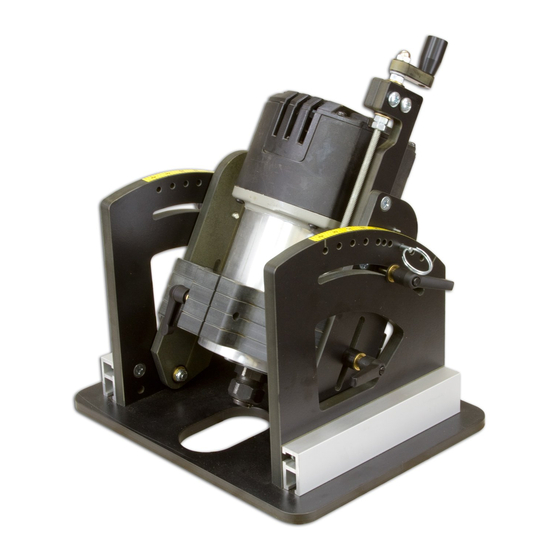

1470 & 1472 Angle-Ease™
576 & 577 Angle-Ease™
Owners Manual
U.S. Patent #6,742,558
Please Read Carefully!
Additional Parts List:
Parts listed below are not shown in the hardware
drawings. Refer to photos in the instructions:
Part
Description
1470AS
Side/Arm Assembly, pair . . . . . . . . . . . . . . . . 1
1470C
7-1/2" Double Track . . . . . . . . . . . . . . . . . . . . . 2
1475
Height Adjuster (in it's own package) . . . . . 1
In addition, you will get ONE of the motor
blocks and plates below, depending on the
Angle-Ease model you purchased:
1470B
3.5" Motor Block . . . . . . . . . . . . . . . . . . . . . . . . 1
1472B
4.2" Motor Block . . . . . . . . . . . . . . . . . . . . . . . 1
1470P
Angle Ease Router Table Plate . . . . . . . . . . . 1
576P
Horizontal Table Angle-Ease Plate . . . . . . . . 1
Part#
Description
MF010
3/4" Screw
Part#
Description
5760B
Oval Nut
Part#
Description
5791B
Barrel Nut
Qty.
Part#
Description
2
5863
Knob - 1-1/8"
or
Quantity
Qty.
Part#
Description
8
MF015
1" Screw
Qty.
Part#
Description
12
BUSH002 1/4" Spacer
Part#
Description
Qty.
WN001
Nylon washer
3
Qty.
Part#
Description
2
5864
Knob - 1-5/8"
Qty.
6
Qty.
4
Qty.
4
Qty.
2
Advertisement
Table of Contents
Related Manuals for Woodhaven Angle-Ease 1470
Summary of Contents for Woodhaven Angle-Ease 1470
- Page 1 1470 & 1472 Angle-Ease™ 576 & 577 Angle-Ease™ Owners Manual U.S. Patent #6,742,558 Please Read Carefully! Additional Parts List: Parts listed below are not shown in the hardware drawings. Refer to photos in the instructions: Part Description Quantity 1470AS Side/Arm Assembly, pair ....1 1470C 7-1/2”...
- Page 2 BEFORE BEGINNING Identify and verify that you have all the parts listed. Read the instructions at least once, familiarizing yourself with the parts, before beginning assembly. You’ll need two 7/16" wrenches, a #3 Phillips screwdriver and a flat blade screwdriver. ASSEMBLY Find the side/arm assembly (1470AS) that has the arm with the squared-off corner.
- Page 3 Install a washer (WB002) and two 1/4" spacers (BUSH002) on the knobs (5864). Using the side/arm assembly with the height adjuster arm attached to it, set the arm in the groove in the router block. Install the ratchet handle thru the slot in the arm, screwing it into the barrel nut.
- Page 4 To reduce the risk of injury we recommend that you tilt the cutter into the fence (or table) hiding more of the cutter compared to tilting the cutter away from the fence (or table) and exposing more of the cutter. ©Copyright WOODHAVEN INC. 9/18/07 (800)344-6657 or WWW.WOODHAVEN.COM...
