AETEK C60-244-30-600U L2 PRO Quick Installation Manual

INTRODUCTION
The C60-244-30-600U is a 24 port 10/100/1000BaseT L2 PRO Managed PoE Switch capable of feeding 15.4/30W
(54V max.per port) power to Power over Ethernet (PoE) devices. It comes with 2xGbE Combo RJ45/SFP +
2xGbE SFP port. The switch is capable of a total of 370 Watts power budget
PACKAGE CONTENTS
* 1x PoE switch
* 2x rack mount ears
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. C60-244-30-600U 56VDC input
5. 56VDC Power Module AC input (90-132V/AC or 180-264V/AC, 50~60Hz, 7A)

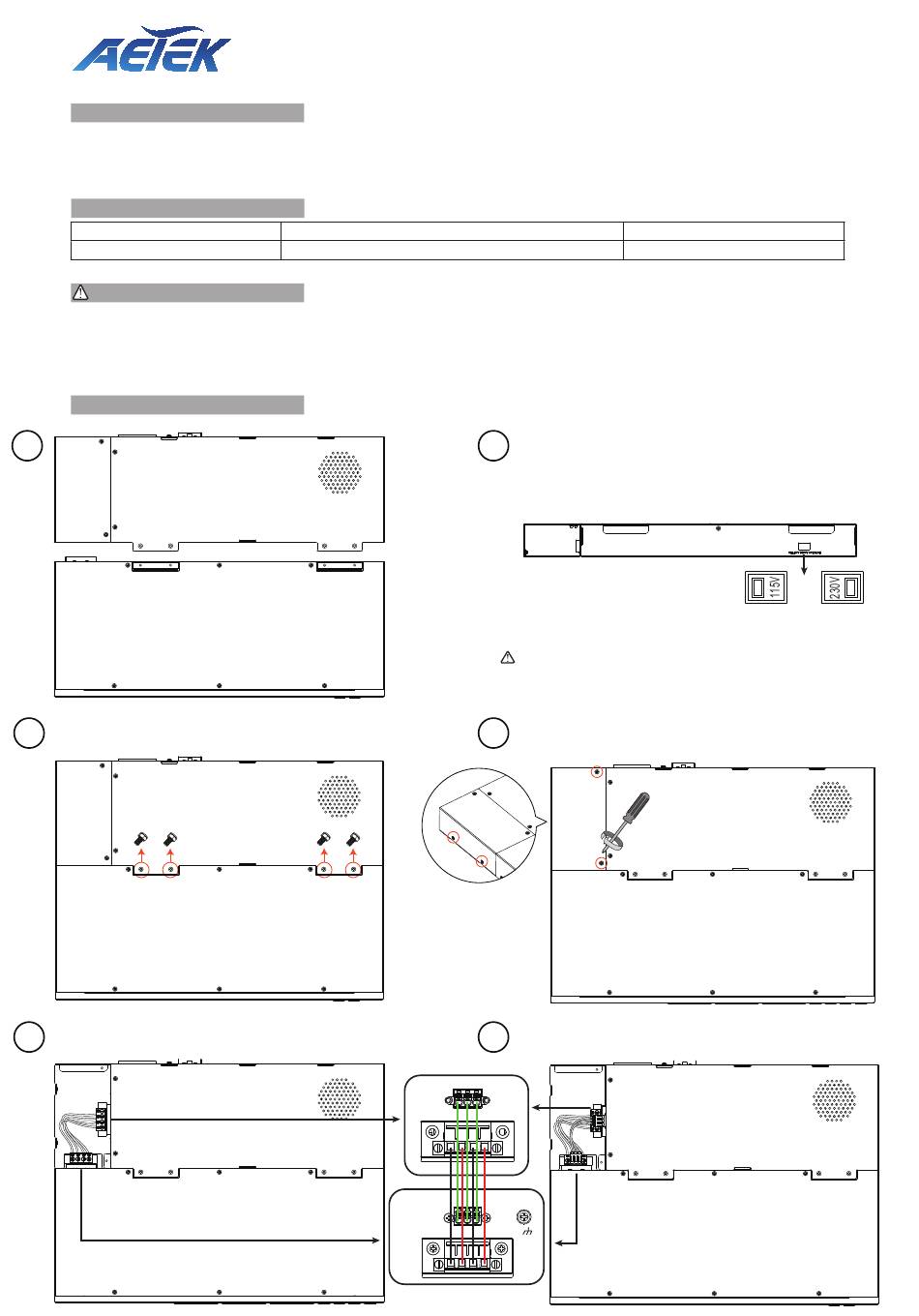

INSTALLATION
1
56VDC Power Module
C60-244-30-600U
Install the 56VDC Power Module onto the
3
C60-244-30-600U and secure it with M4 screws.
Lock the screw
Connect the C60-244-30-600U and the
5
56VDC Power Module using the C60U Power Cable.
C60-244-30-600U L2 PRO Managed PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
Lock the screw
UART
56VDC
Input
Set 56VDC Power Module the AC input voltage to either
2
115VAC or 230VAC.
If the voltage is different, it may cause the power module
to burn out.
Remove the screws on the top and side of the 56VDC
4
Power Module and take off the cover.
Connect the C60-244-30-600U and the
6
56VDC Power Module using the C60U UART Cable.
TX RX GND
56VDC Output
V- V+ V- V+
TX RX GND
UART
V- V+ V- V+
P/N: 5019053700
* 1x C60U Power Cable
* 1x C60U Uart Cable
or
SELECT INPUT VOLTAGE
