AETEK D62-084-30-DC Quick Installation Manual

Quick Installation Guide
Model Description
D62-084-30-DC 8xGbE 30W PoE + 2xGbE SFP + 2xGbE RJ45 + 4x24VDC output + 2x12VDC output w/ 12-48 VDC Input Managed Switch
INTRODUCTION
The D62-084-30-DC is a 8 port 10/100/1000BaseT at PoE switch capable of feeding 15.4/30W (54Vmax. per port)
power to Power over Ethernet (PoE) devices.
It comes with another 1xGbE RJ45 port or 2xGbE RJ45 ports+2xGbE SFP ports.
PACKAGE CONTENTS
* 1x PoE switch
* 1x DB9F-RJ45 console cable
IMPORTANT :
1. To prevent potential damage, ensure that all 12VDC, 24VDC, and Digital Input/Output (DI/DO) devices are properly
connected before applying or turning on the DC input power. Connecting these devices after the power is on may result
in malfunction or damage.
2. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
3. Make sure the ventilation openings on the converter are not blocked.
4. Use fiber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850nm;
Single-mode): 9/125um, 1310nm.
5. DC input (12~48VDC). Follow the printed polarity for V+, V-, and Ground.
6. Digital output : ON/OFF, support 12VDC/1A. Digital input: level 0(Low), level 1(High).

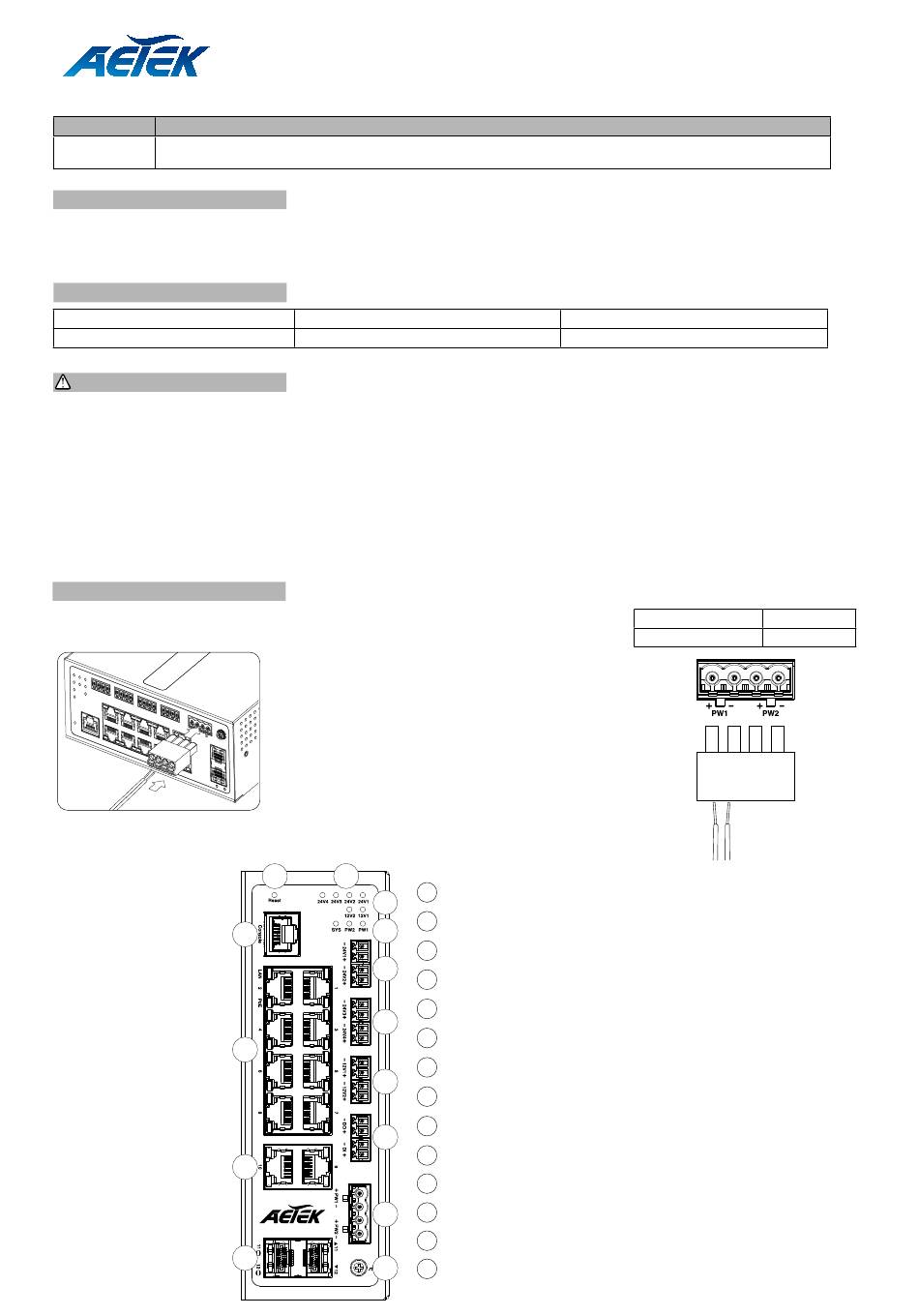

CONNECTION
DC Power Input
D62-084-30-DC L2 PRO Gigabit PoE Switch
* 1x Quick Installation Guide
* 1x DIN rail bracket
1. Pull out the 4-pin terminal block.
2. Connect power wires to V+, and V-.
3. Connect SFP transceivers to the fiber port.
4. install the 4-pin terminal block.
E F
G
H
D
I
J
C
K
L
B
M
A
N
* 1x 4-pin terminal block
* 8x 2-pin terminal block
A 100/1000 SFP ports
B 10/100/1000 RJ45 ports
10/100/1000 PoE RJ45 ports
C
Console port
D
Reset button
E
24V4 / 24V3 / 24V2 / 24V1 LED
F
12V2 / 12V1 LED
G
Power2 / Power1 / SYS LED
H
24VDC output ports
I
24VDC output ports
J
12VDC output ports
K
DI / DO ports
L
12~48VDC Input
M
N GND
P/N: 5019039501
DC Power Cable Spec.
Wire Size 12~24AWG
Wire Strip Length 10mm
