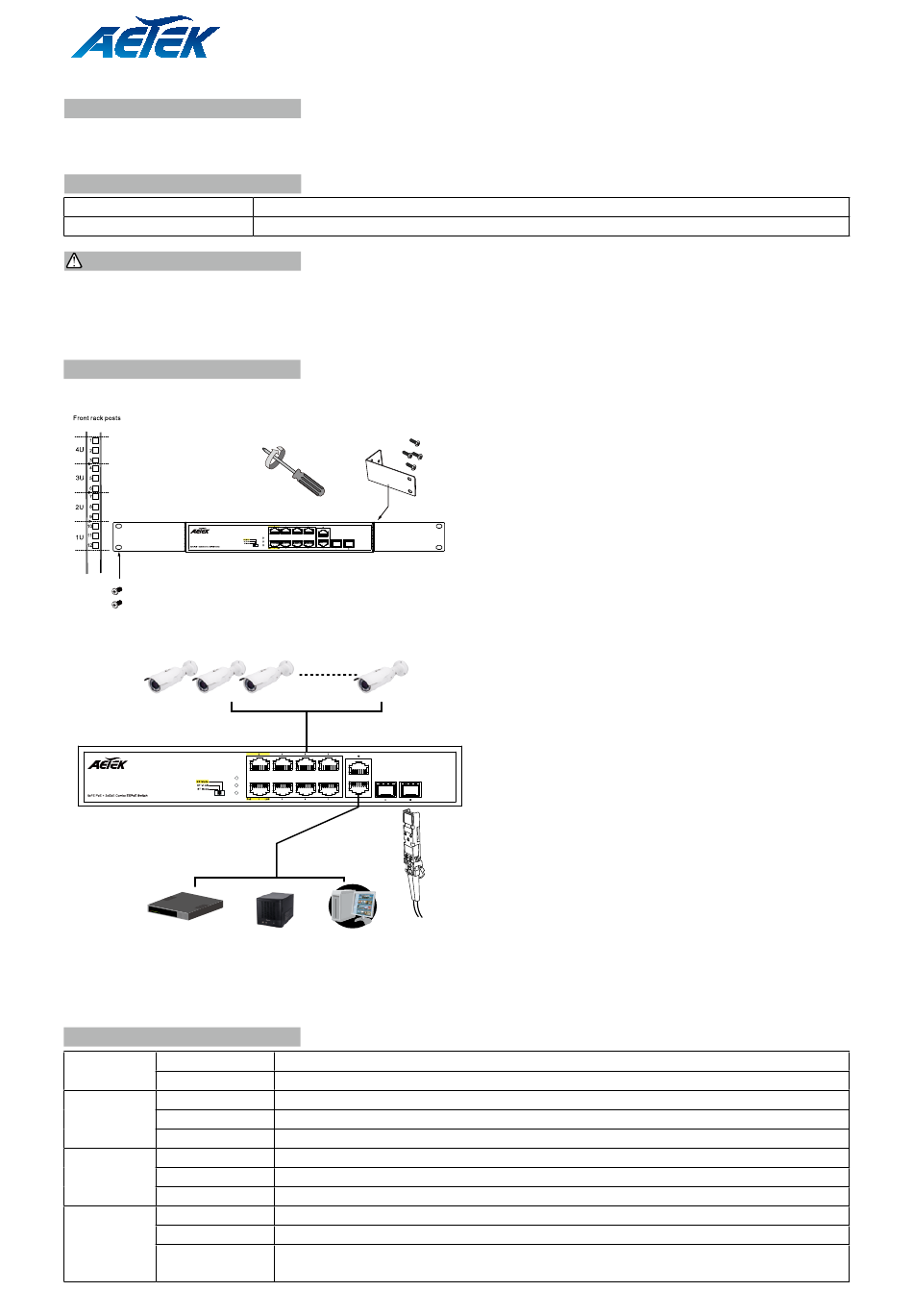

AETEK C11-082-32-120 Quick Installation Manual

INTRODUCTION

The C11-082-32-120 is a 8xFE PoE + 2xGbE Combo Ex PoE switch capable of feeding 15.4/30W (56V max. per port)
power to Power over Ethernet (PoE) devices.

PACKAGE CONTENTS

* 1x PoE switch
* 2x rack mount ears

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 6 UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz, 2.5A)

CONNECTION

Rack-mounting
Connections
- OR -
Router / switch
Use SFP, LC type transceiver with 100Mbps or 1Gbps transfer speed in Single mode (10km,30km,50km,80km) or Multi
mode (0.5m or 2km) or Bidi (10km,30km,50km,80km).

LED DEFINITIONS

PWR Green ON
Green OFF
LAN Green ON
Blinking
Green OFF
GbE Green ON
9,10
Blinking
Green OFF
PoE Orange ON
Blinking
Orange OFF
C11-082-32-120 PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
- OR -
NVR Console
Power is on and normal.
Power is off.
Ethernet port is connected.
Data is being transmitted and received.
No connection.
Ethernet port is connected
Data is being transmitted and received
No connection
Port is enabled and supplying power to connected device.
An abnormal state, such as overload status, has been detected in the switch.
Port has no active network cable connected, or it is not established a link to connected
device.
