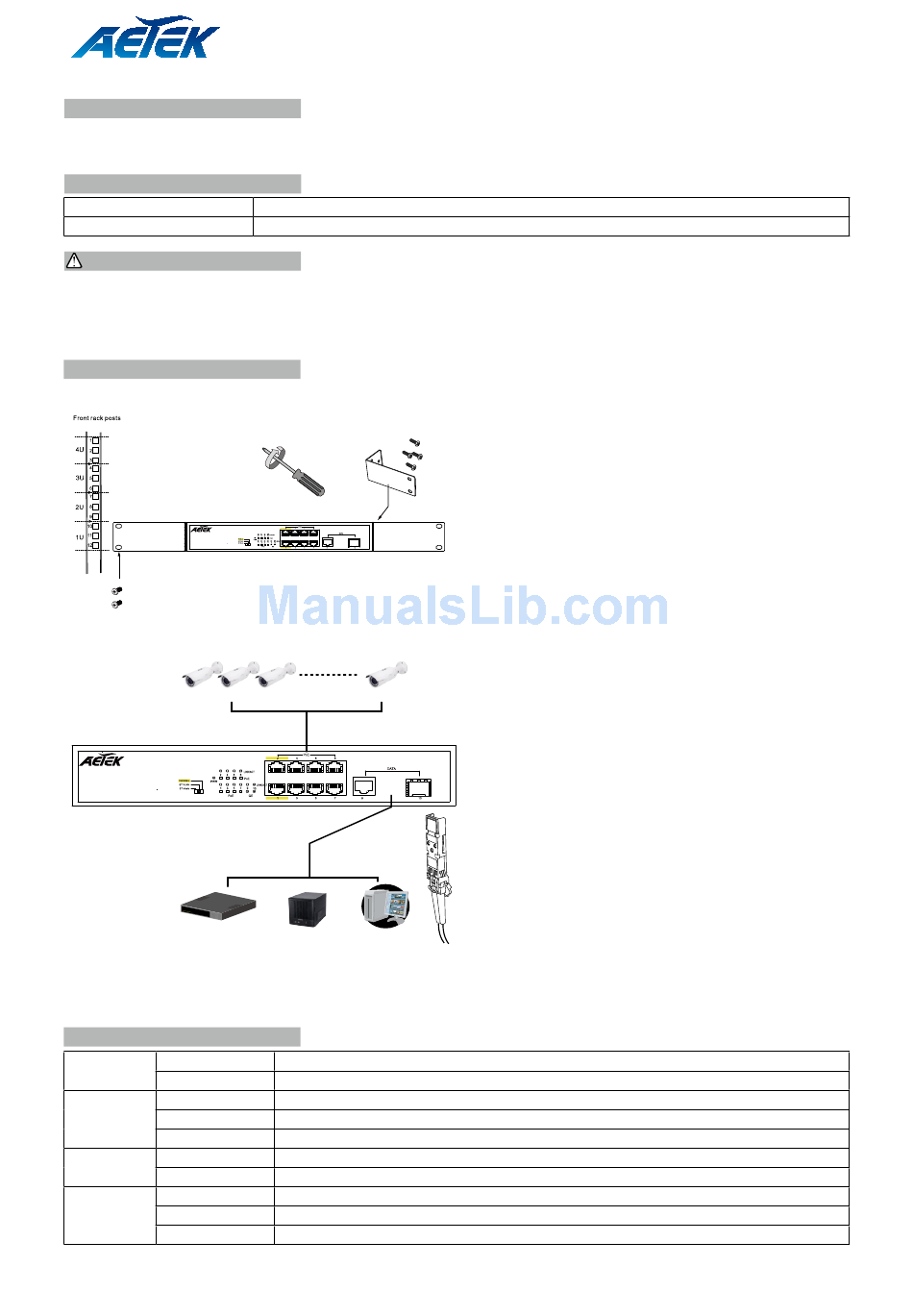

AETEK C11-082-31-120 Quick Installation Manual

INTRODUCTION

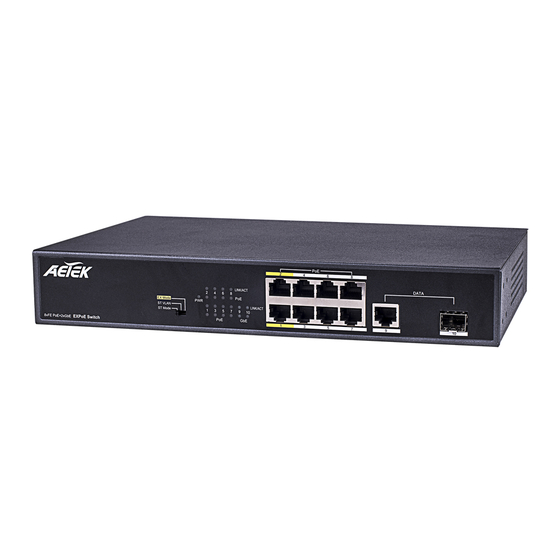

The C11-082-31-120 is a 8xFE PoE + 1xGE UTP + 1xGE SFP unmanaged PoE switch capable of feeding 15.4/30W (56V
max. per port) power to Power over Ethernet (PoE) devices. The switch is capable of a total of 120 Watts power budget.

PACKAGE CONTENTS

* 1x PoE switch
* 2x rack mount ears

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 6 UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 120W.

CONNECTION

Rack-mounting
8xFE PoE+2xGbE EXPoE Switch
Connections
8xFE PoE+2xGbE EXPoE Switch
Router / switch
Use SFP, LC type transceiver with 100Mbps or 1Gbps transfer speed in Single mode (10km,30km,50km,80km) or Multi
mode (0.5m or 2km) or Bidi (10km,30km,50km,80km).

LED DEFINITIONS

Power Green ON
Green OFF
LINK/ACT Orange ON
Blinking
Orange Off
Speed Green ON
Green OFF
PoE Orange ON
Blinking
Orange OFF
C11-082-31-120 PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
- OR - - OR -
NVR Console
Power is on and normal.
Power is off.
Ethernet port is connected.
Data is being transmitted or received.
No connection.
Link speed at 1000Mbps
Link speed at 10/100Mbps
Port is linked to a powered device.
Abnormal power supply is detected
No device is connected.
