INTRODUCTION
The C50 Series is a 8/16/24 port 10/100/1000BaseT Web smart PoE switch capable of feeding 15.4/30W (54V max.
per port) power to Power over Ethernet (PoE) devices. It comes with 2x GbE SFP port. The switch is capable of a total of
130/250/370 Watts power budget.
PACKAGE CONTENTS
* 1x PoE switch
* 1x Quick Installation Guide
* 2x rack mount ears
* 1x power cord (type by the shipped-to area)
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 150/300/430W.
C50-242-30-370 CONNECTION
Front Panel
C50-182-30-250 CONNECTION
Front Panel
All manuals and user guides at all-guides.com

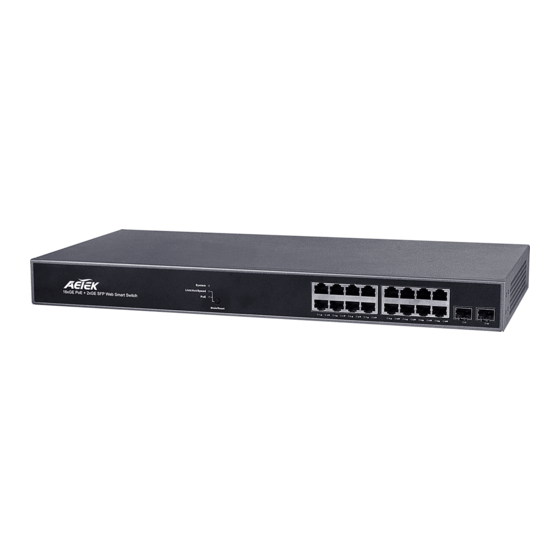

C50-082-30-130 Smart PoE Switch
C50-162-30-250 Smart PoE Switch
C50-242-30-370 Smart PoE Switch
Quick Installation Guide
Rear Panel
Rear Panel
