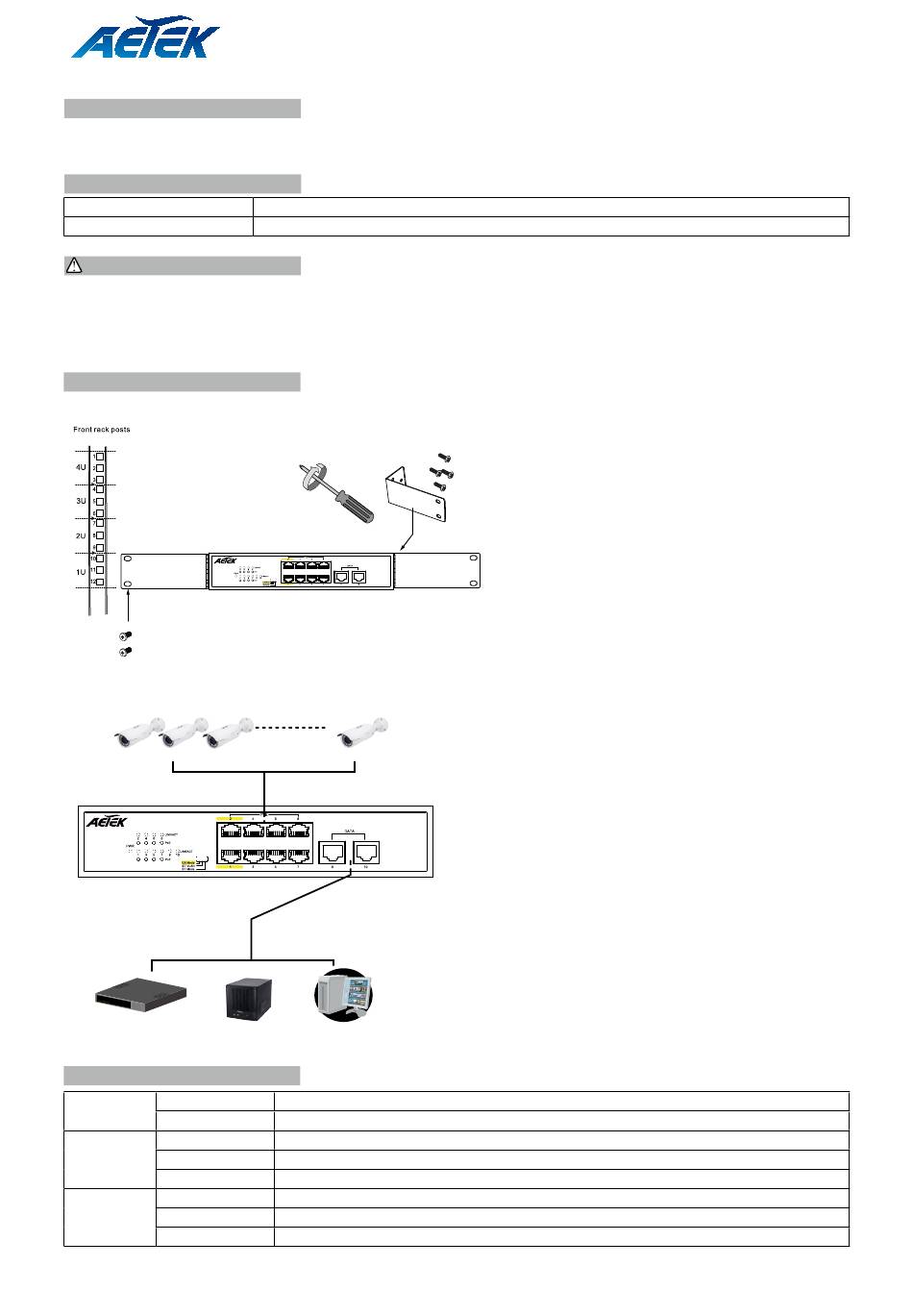

AETEK C11-082-30-120 Quick Installation Manual

INTRODUCTION

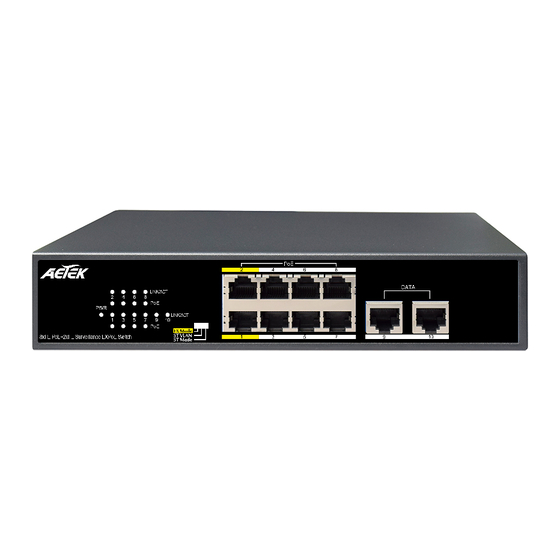

The C11-082-30-120 is a 8xFE PoE + 2xFE unmanaged PoE switch capable of feeding 15.4/30W (56V max. per port)
power to Power over Ethernet (PoE) devices. The switch is capable of a total of 120 Watts power budget.

PACKAGE CONTENTS

* 1x PoE switch
* 2x rack mount ears

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 6 UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 120W.

CONNECTION

Rack-mounting
EXPoE Switch
8xFE PoE+2xFE
Connections
EXPoE Switch
8xFE PoE+2xFE
- OR -
Router / switch

LED DEFINITIONS

Power
Green ON
Green OFF
LINK/ACT Orange ON
Blinking
Orange Off
PoE Orange ON
Blinking
Orange OFF
C11-082-30-120 PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
- OR -
NVR Console
Power is on and normal.
Power is off.
Ethernet port is connected.
Data is being transmitted or received.
No connection.
Port is linked to a powered device.
Abnormal power supply is detected
No device is connected.
