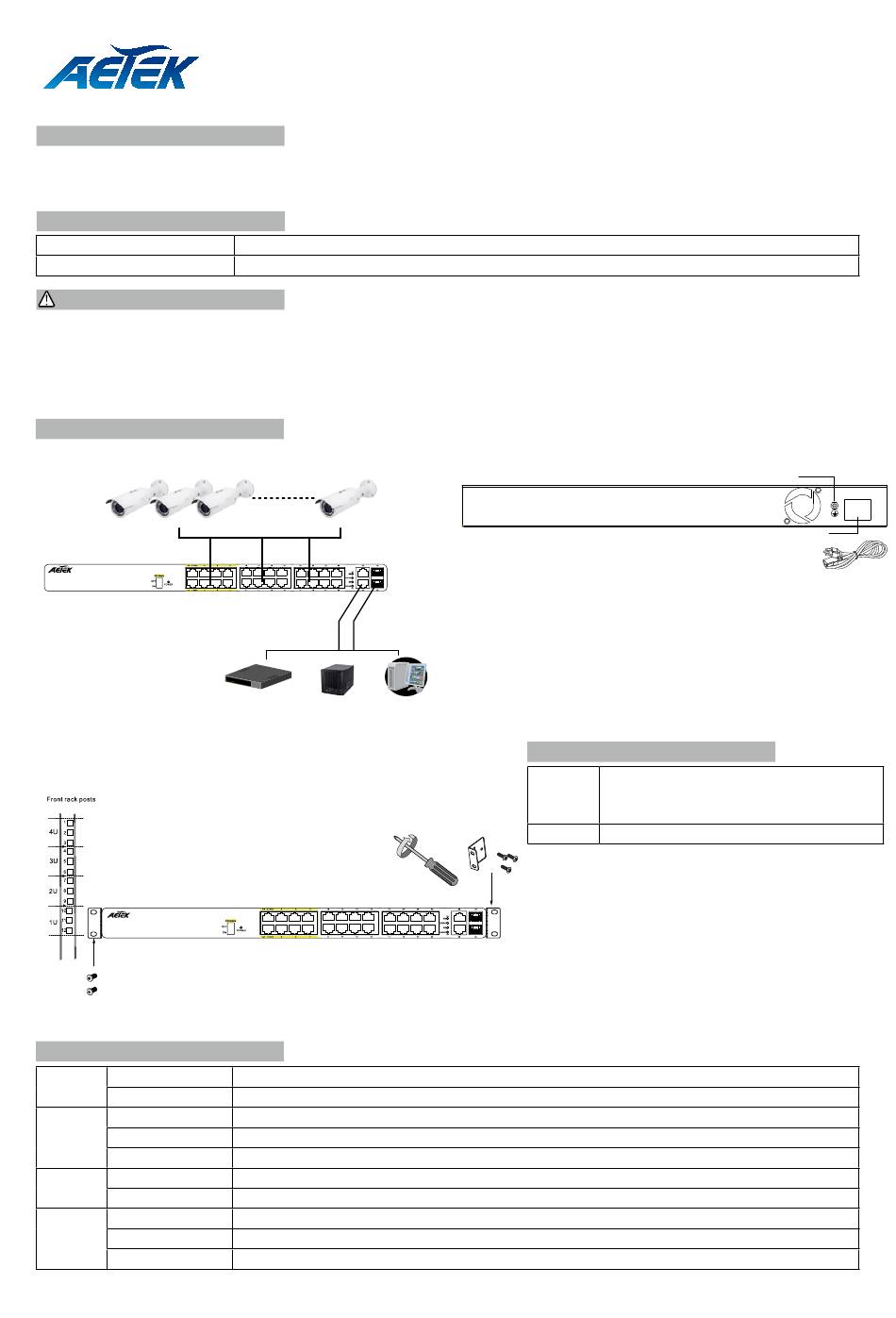

AETEK C11-242-30-380 Quick Installation Manual

INTRODUCTION

The C11-242-30-380 is a 24 port 10/100BaseT unmanaged PoE switch capable of feeding 15.4/30W (54V max. per port)
power to Power over Ethernet (PoE) devices. It comes with another 2 GbE combo SFP ports.

PACKAGE CONTENTS

* 1x PoE switch
* 2x rack mount ears

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 6 UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz, 5A)

CONNECTION

Front Panel
24xFE PoE+2xCombo GbE EXPoE Switch
16xFE PoE+2xCombo GbE EXPoE Switch

LED DEFINITIONS

POWER Orange ON
Orange Off
Link/Act Green ON
Green Off
Green Blinking
GbE Green ON
Green Off
PoE Orange ON
Orange Off
Orange Blinking Abnormal power supply is detected.
C11-242-30-380 PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
- OR - - OR -
Router / switch NVR
Power is on and normal.
Power is off.
Ethernet port is connected.
No connection
Data is being transmitted or received.
Link speed at 1000Mbps.
Link speed at 10/100Mbps.
Port is linked to a powered device.
No device is connected.
Rear Panel
The switch already comes with lightning protection mechanism.
You can also gorund the switch. through the PE (Protecting
Earth) cable of AC cord or with Ground Cable.
Console
EX mode DIP switch
EX ON
EX OFF Normal communication for ports 1 ~ 24
• EX mode in 802.3af(15.4): camera connection up to
250m@10Mbps via EXPoE ports
• EX mode in 802.3at(24W): camera connection up to
200m@10Mbps via EXPoE ports
Restart the switch after changing the Extensive
mode.
Grounding screw
Ports 1 ~ 8 up to 250m PoE distance.
When enabled, each port is isolated, but
is linked to the uplink ports.
100-240VAC
Power socket
