AETEK C11-162-30-250 Quick Installation Manual

INTRODUCTION

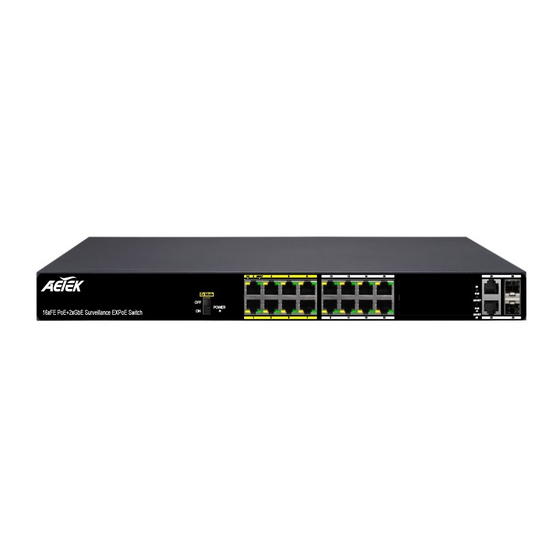

The C11-162-30-250 is a 16 port 10/100BaseT unmanaged PoE switch capable of feeding 15.4/30W (54V max. per port)
power to Power over Ethernet (PoE) devices. It comes with an addition of 2 GbE combo ports.

PACKAGE CONTENTS

* 1x PoE switch
* 2x rack mount ears

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 6 UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz, 5A)

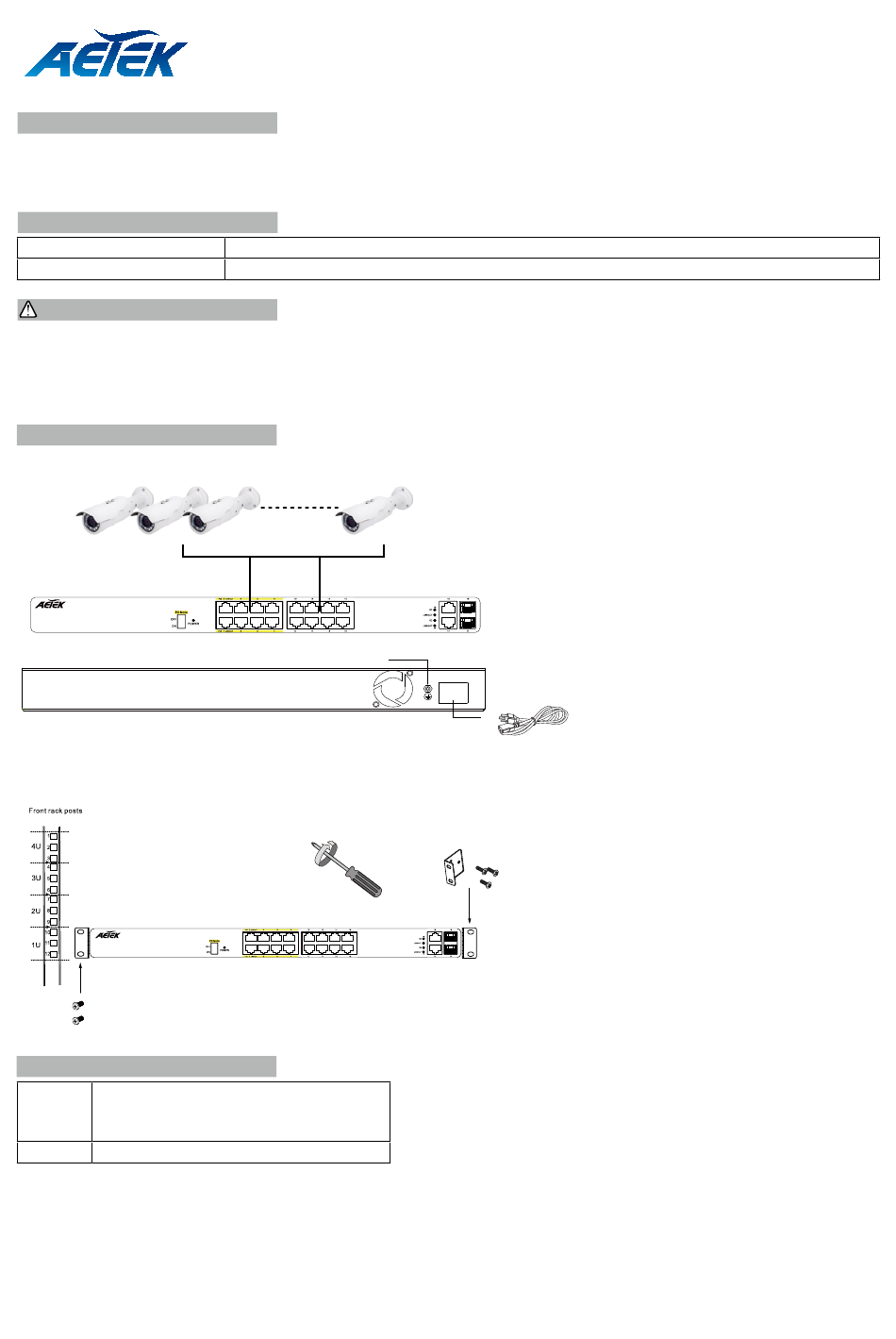

CONNECTION

Front Panel
EXPoE Switch
16xFE PoE+2xCombo GbE
Rear Panel
The switch already comes with lightning protection mechanism. You can also gorund the
switch. through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
16xFE PoE+2xCombo GbE EXPoE Switch
EX mode DIP switch
EX ON Ports 1 ~ 8 up to 250m PoE distance.
When enabled, each port is isolated, but
is linked to the uplink ports.
EX OFF Normal communication for ports 1 ~ 18
• EX mode in 802.3af(15.4): camera connection up to
250m@10Mbps via EXPoE ports
• EX mode in 802.3at(24W): camera connection up
to 200m@10Mbps via EXPoE ports
Restart the switch after changing the Extensive
mode.
C11-162-30-250 PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
Grounding screw
100-240VAC
Power socket
