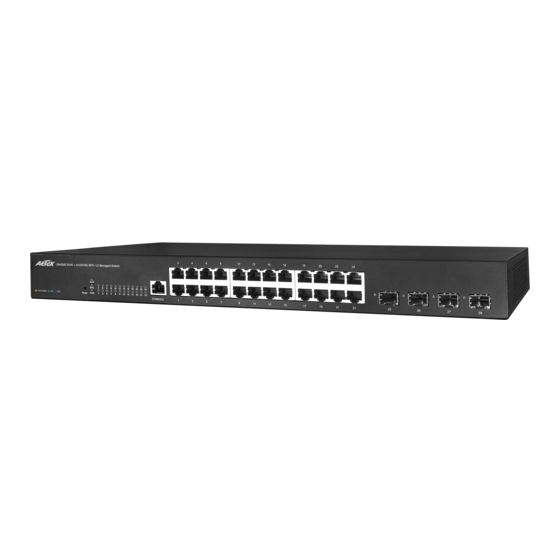

L2 PRO Gigabit PoE Switch Series
Copyright© AETEK Inc. 2021｜All rights reserved. All brand and product names are trademarks or registered
trademarks of their respective companies
C60-00F-01
C60-082-30-130
C60-164-30-250
C60-244-30-370
D60-044-30
D60-044-90
D60-084-30
H60-044-30-150
H60-044-90-250
H60-084-30-250
Network Topology System
User Manual
Advertisement
Table of Contents
Related Manuals for AETEK C60-00F-01
Summary of Contents for AETEK C60-00F-01
- Page 1 C60-082-30-130 C60-164-30-250 C60-244-30-370 D60-044-30 D60-044-90 D60-084-30 H60-044-30-150 H60-044-90-250 H60-084-30-250 L2 PRO Gigabit PoE Switch Series Network Topology System User Manual Copyright© AETEK Inc. 2021｜All rights reserved. All brand and product names are trademarks or registered trademarks of their respective companies...
-
Page 2: Table Of Contents
Table of Contents NTS OVERVIEW ......................... 1 GRAPHICAL MONITORING ..................... 2 Topology View ............................2 Floor View ..............................9 Map View ..............................11 MANAGEMENT........................ 12 Device List ............................... 12 MAINTENANCE ....................... 14 Floor Image ............................14 Traffic Monitor ............................15... -
Page 3: Nts Overview
NTS Overview 1. NTS is an intelligent management tool embedded in switches to intuitively help IT/TS reduce support cost/time/effort. 2. All devices connected to the switches can be discovered and displayed by NTS automatically using standard networking protocols such as LLDP, ONVIF, etc. 3. -
Page 4: Graphical Monitoring
Graphical Monitoring Topology View NTS can automatically discover all IP devices and display the devices by graphic networking topology view. User could manage and monitor them by the Topology View, such as to remotely diagnose the cable connection status, auto alarm notifications on critical events, remotely reboot PoE device when it’s not alive. - Page 5 Parameter description: Icon with plus and minus marks: Zoom in and zoom out the topology view, user can scroll up/down with mouse to achieve the same purpose. Icon with screen view type: Click it to change to Full Screen View of Topology or return to the Normal View.
- Page 6 Icon with black mark: Device link up. User can select function and check issues. ⚫ Icon with red mark: Device link down. User can diagnose the link status. ⚫ Icon with numbers: It means some events happened (e.g. Device Off-line, IP ⚫...
- Page 7 select type from a pre-defined list. Device Name: Create your own Device Name or alias for easy management such as, ◆ 1F_Lobby_Cam1. Model Name, MAC Address, IP Address, PoE Supply and PoE Used are displayed automatically ◆ by NTS. Http Port: Re-assign http port number to the device for better security. ◆...
- Page 8 Green icon: Cable is connected correctly. Red icon: Cable is not connected correctly. User can check the distance info (XX meters) to identify the broken cable location. Connection: ⚫ Green icon: Device is pinged correctly. Red icon: Device is not transmitted /receiving data correctly. Which means it might not be pinged successfully.
- Page 9 Figure 8: The Notification Console Monitor Console: It displays the traffics for device health check purpose. ⚫ For each IP device except NTS switches, User can set a threshold of throughput for IP devices, ◆ and get notification when throughput is lower or higher than settings. If both values are “0”, it means the function is disabled.
- Page 10 In the upper right corner, there is a “Setting icon”. When user clicks the icon, it will pop-up Device, Group, Config, export topology view and advanced search functions for the topology. Device Search Console ⚫ All devices and info. It will show on the list. Function Test02 Filter devices by Device Type...
-
Page 11: Floor View
Floor View User can easily plan IP devices installation location onto the custom uploaded floor images. Test01 Test01 Test02 Test02 Figure 13: The Floor View Anchor Devices onto Floor Maps ⚫ Find Device Location Instantly ⚫ 10 Maps can be Stored in Each Switch ⚫... - Page 12 Test01 Test01 Figure 14: The Device Icon to Remove a Device If there are more than two floor images, it can be selected from the field. ⚫ Test01 Test01 Figure 15: The Device Icon to Select floor...
-
Page 13: Map View
Map View It can help to find the location of the devices even they are installed in different building. User can place the device icon on the Map View of which navigated by Google map. Test02 Test02 Figure 16: The Map View Anchor Devices onto Google Map. -
Page 14: Management
Management Device List It will show all devices and their information which are detected by NTS. Figure 17: The Devices List If you want to auto-refresh the information then you need to evoke the “Auto refresh”. Click this icon to Refresh the status of all devices. Click this icon to Edit Device Name and http Port. - Page 15 doesn’t provide “Edit HTTP port” function for configuring it. Figure 18: The Edit of Devices List Search devices by key words with full text search. Only Offline devices provide “Remove” function to remove from NTS device list. Note: The device name will not save until you click Apply button. Please do not click refresh, auto- refresh or edit button before you apply new device name.
-
Page 16: Maintenance
Maintenance Floor Image In this page, user can add or delete a floor image. Figure 19: The Floor Image Each NTS switch provides 10 files space for uploading. ⚫ Only support JPG and PNG formats. ⚫ File size is limited to 256KB. ⚫... -
Page 17: Traffic Monitor
Traffic Monitor In this page, user can see traffic results on every connected devices. Figure 19: The Traffic Image...
