AETEK H21-082-31-150 Quick Installation Manual

INTRODUCTION

The H21-082-31-150 is an 8 port 10/100BaseT PoE switch capable of feeding 15.4/30W (54V max. per port) power to
Power over Ethernet (PoE) devices. It comes with another 2x GbE combo ports.

PACKAGE CONTENTS

* 1x PoE switch
* 1x T25 L-wrench

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz)
5. IP67 rated housing
6. Although housing is IP67 rating , this is not suitable for water jets.

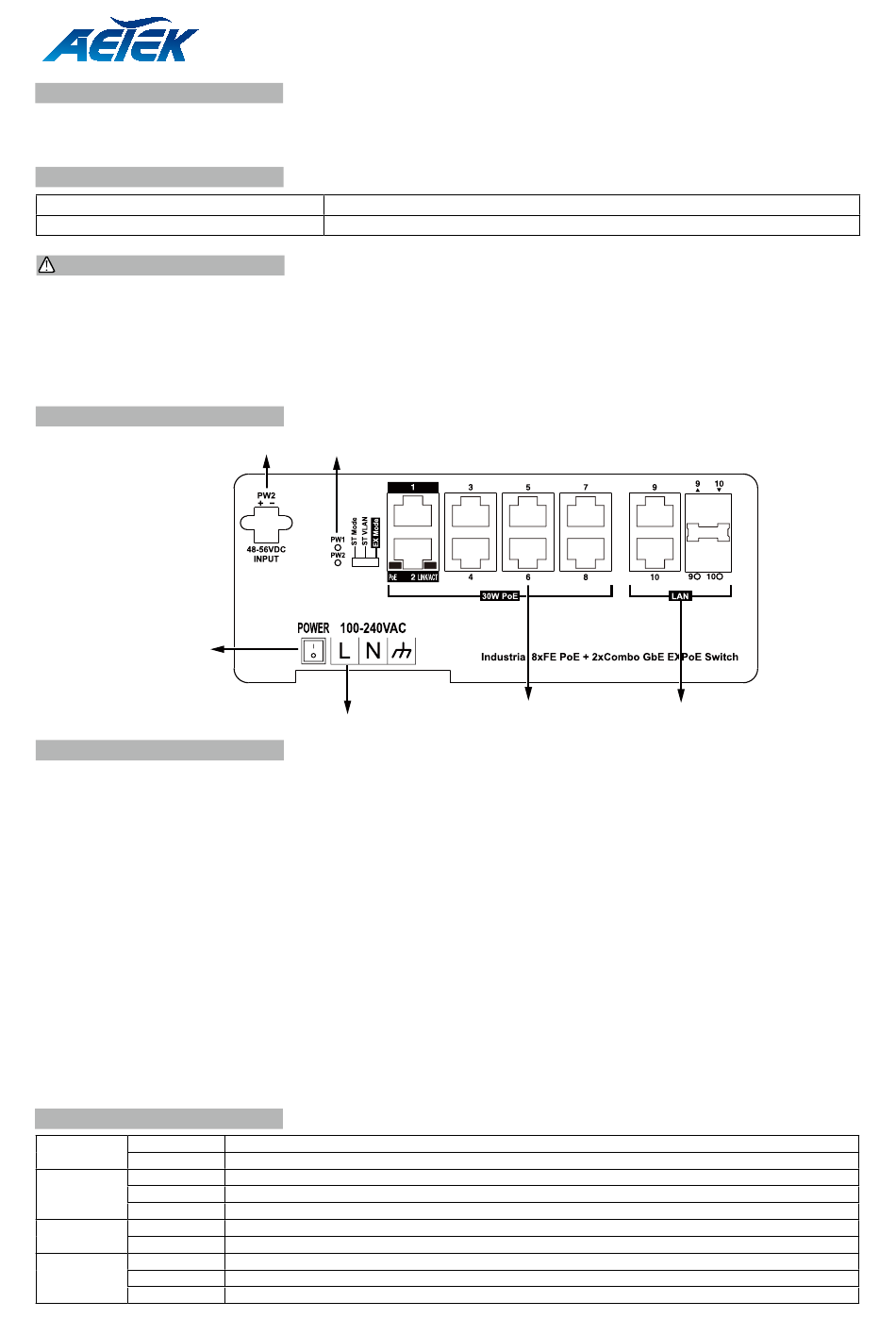

CONNECTION

AC on/off switch

EXTENSIVE MODE DIP SWITCH

EX Mode OFF: normal communication between port 1~6.
EX Mode ON : 1-4 port can be isolated each other but 1-4 port can connect to 5~ 6 port after enable EX Mode to stop
broadcast storm to increase forwarding rate of frame. The EX mode(Port 1 & 2), Up to 250m PoE distance allows you to
expand you network via Ethernet cable to where there is no power line or outlet but where you want to fix device such as
IP Camera.
• EX mode reaches 802.3af(12.95W) camera up to 250m@10Mbps via EXPoE ports
• EX mode reaches 802.3at(24W) camera up to 200m@10Mbps via EXPoE ports
Restart the switch after changing the Extensive mode.
*Effect factors
1.Must connect af PoE PD.
2.Poor cabling quality with insufficient copper.
3.IP camera's networking design could not support 10Mbps@250m transmission.
**Suggestion
1.Checking the interoperability reaching 10Mbps@250m before physical deployment.
2.Adjust to "EX Mode OFF" reaching 10/100Mbps@100m if "EX Mode ON" is fail.

LED DEFINITIONS

Power Orange ON
Orange Off
Link/Act Green ON
Green Off
Green blinking
9/10 Green ON
Green Off
PoE
Orange ON
Orange Off
Orange blinking

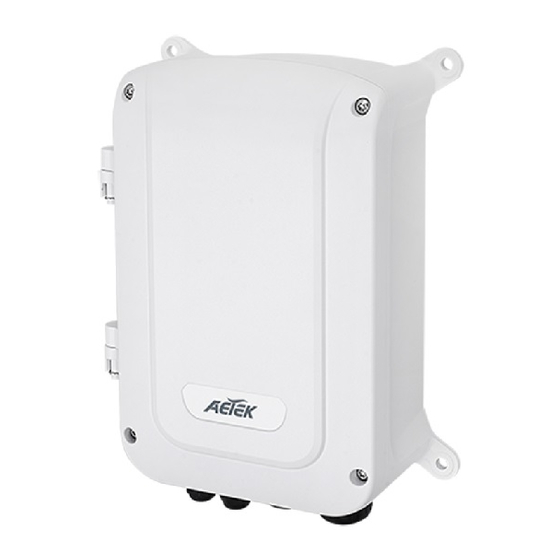

H21-082-31-150 Outdoor Unmanaged PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
DC input LEDs
100~240VAC power input
Power is on and normal.
Power is off.
Ethernet port is connected.
No connection.
Data is being transmitted or received.
Link speed at 10/100/1000Mbps.
No connection.
Port is linked to a powered device.
No device is connected.
Abnormal power supply is detected.
FE RJ45
GbE Combo
PoE ports
RJ45/SFP ports
P/N: A625015400G
