AETEK H21-041-30-120 Quick Installation Manual

INTRODUCTION

The H21-041-30-075/120 is a 4 port 10/100BaseT PoE switch capable of feeding 15.4/30W (54V max. per port)
power to Power over Ethernet (PoE) devices. It comes with another 1x FE RJ45 uplink port.

PACKAGE CONTENTS

* 1x PoE switch
* 1x T25 L-wrench
Important:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz)

CONNECTION

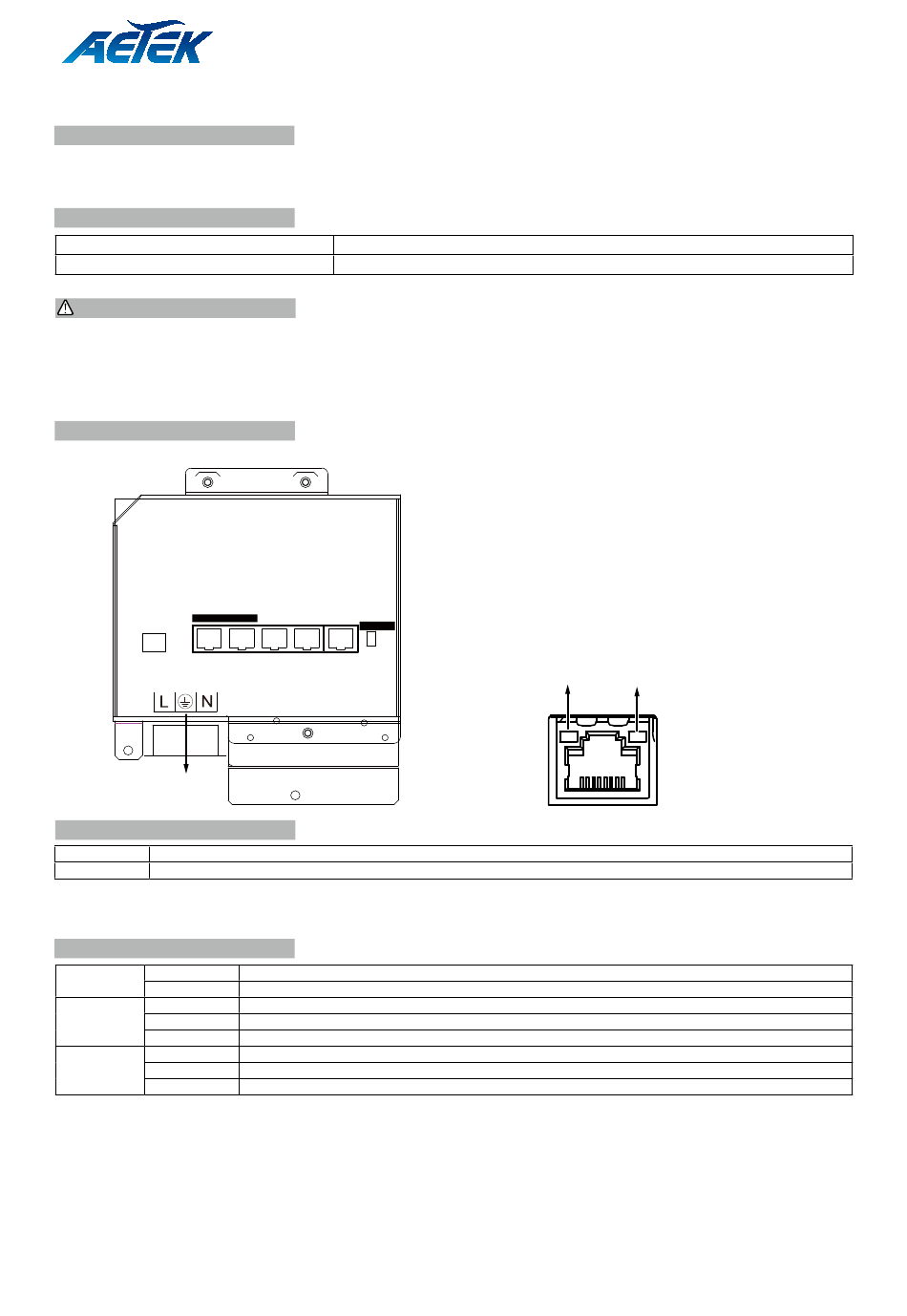

Industrial 4xFE PoE + 1xFE
EXPoE Switch
1
+ -
LINK/ACT PoE
100-240VAC
VAC 100~240 power input

EX MODE DIP SWITCH

EX ON Ports 1 & 2 up to 250m PoE distance. When enabled, each port is isolated, but is linked to the uplink ports.
EX OFF Normal communication for ports 1 ~ 5.
* EX mode in 802.3af (15.4W): camera connection up to 250m@10Mbps via EXPoE ports.
* EX mode in 802.3at (30W): camera connection up to 200m@10Mbps via EXPoE ports.

LED DEFINITIONS

Power Orange ON
Orange Off
Link/Act Green ON
Green Off
Green blinking
PoE
Orange ON
Orange Off
Orange blinking
H21-041-30-075
H21-041-30-120
Quick Installation Guide
* 1x Quick Installation Guide
2 3 4 5
EX Mode
OFF
ON
PWR
Power is on and normal.
Power is off.
Ethernet port is connected.
No connection.
Data is being transmitted or received.
Port is linked to a powered device.
No device is connected.
Abnormal power supply is detected.
Outdoor Unmanaged PoE Switch
Port LED1 Port LED2
