INTRODUCTION

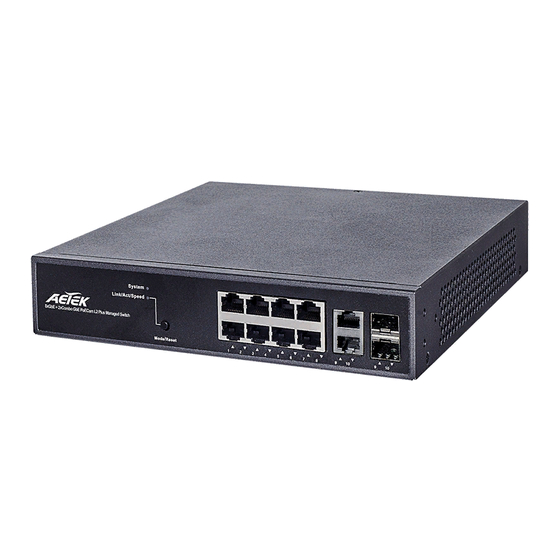

The C70-00A-01/C70-00E-01 is a 10/26 port 10/100/1000BaseT managed switch. It provides a reliable infrastructure for
your business network and deliver intellilgent features. Moreover, this switch also comes with the functionality specifically
designed for managing IP cameras and for a quick access to connected devices.
PACKAGE CONTENTS
* 1x Switch
* 2x rack mount ears
IMPORTANT:
1. Install the Switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 30W / 65W.
C70-00A-01 CONNECTION
Front Panel
C70-00E-01 CONNECTION
Front Panel
C70-00A-01
C70-00E-01
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
Master PoECam L2+ Managed Switch
Rear Panel
Rear Panel
Advertisement
Table of Contents
Related Manuals for AETEK C70-00A-01
Summary of Contents for AETEK C70-00A-01
- Page 1 Quick Installation Guide INTRODUCTION The C70-00A-01/C70-00E-01 is a 10/26 port 10/100/1000BaseT managed switch. It provides a reliable infrastructure for your business network and deliver intellilgent features. Moreover, this switch also comes with the functionality specifically designed for managing IP cameras and for a quick access to connected devices.
-
Page 2: Port Led
Blinking Green All LEDs ON All specifications are subject to change without noice. Copyright © 2017 AETEK INC. All rights reserved. AETEK INC. 3F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. |T: +886-2-82452822| W: www.aetektec.com| E: sales@aetektec.com...
