INTRODUCTION

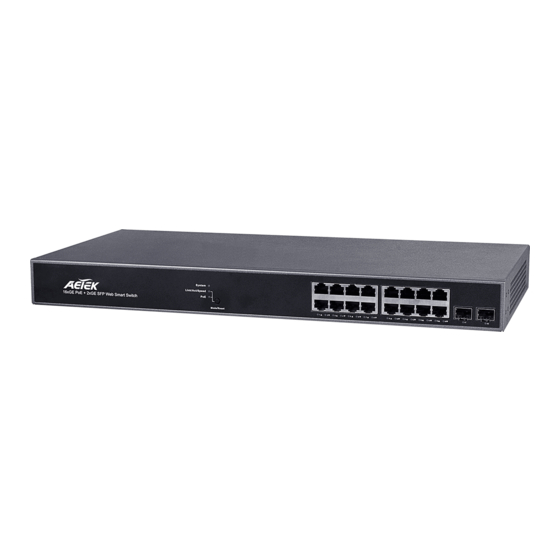

The C50 Series is a 8/16/24 port 10/100/1000BaseT Web smart PoE switch capable of feeding 15.4/30W (54V max.
per port) power to Power over Ethernet (PoE) devices. It comes with 2x GbE SFP port. The switch is capable of a total of
130/250/370 Watts power budget.
PACKAGE CONTENTS
* 1x PoE switch
* 2x rack mount ears
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 150/300/430W.
C50-242-30-370 CONNECTION
Front Panel
C50-182-30-250 CONNECTION
Front Panel
C50-082-30-130 Smart PoE Switch
C50-162-30-250 Smart PoE Switch
C50-242-30-370 Smart PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x power cord (type by the shipped-to area)
Rear Panel
Rear Panel
Advertisement
Table of Contents
Related Manuals for AETEK C50-082-30-130
Summary of Contents for AETEK C50-082-30-130
- Page 1 C50-082-30-130 Smart PoE Switch C50-162-30-250 Smart PoE Switch C50-242-30-370 Smart PoE Switch Quick Installation Guide INTRODUCTION The C50 Series is a 8/16/24 port 10/100/1000BaseT Web smart PoE switch capable of feeding 15.4/30W (54V max. per port) power to Power over Ethernet (PoE) devices. It comes with 2x GbE SFP port. The switch is capable of a total of 130/250/370 Watts power budget.
- Page 2 Restore defaults 7 ~ 12 seconds Green blinking All LEDs stay ON Copyright © 2017 AETEK INC. All rights reserved. AETEK INC. 3F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. |T: +886-2-82452822| W: www.aetektec.com |E : sales@aetek.com.tw...
