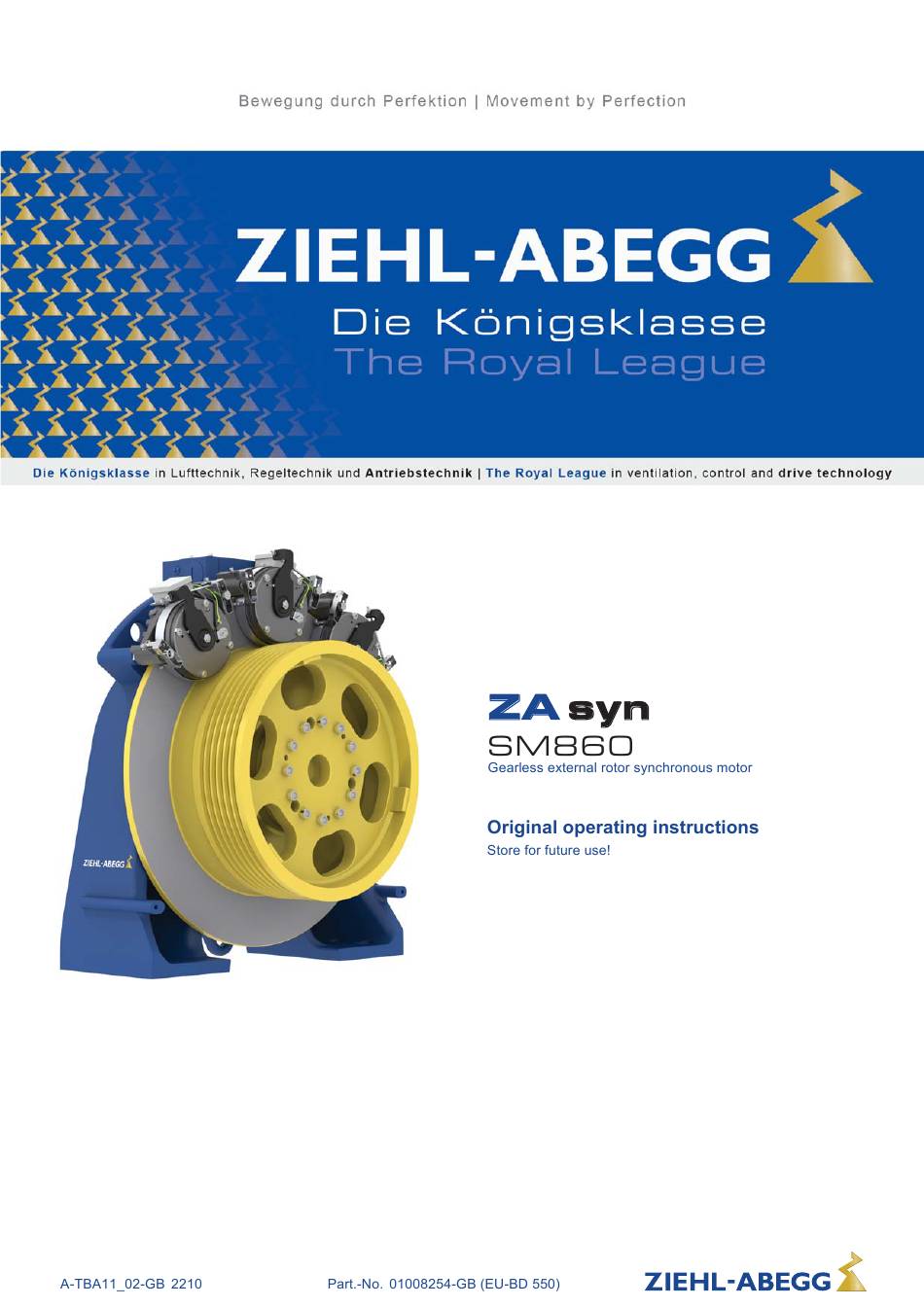

    Translation of the original operating instructions ZETASYN – model series SM860 Content General ..............Scope of application .
  • Page 3 Translation of the original operating instructions ZETASYN – model series SM860 Faults and remedy ............Service and maintenance .

  • Page 4: General

    The operating instructions address persons entrusted with planning, installation, start-up, mainte- nance and servicing, who have the corresponding qualifications and skills for their job. Exclusion of liability Ziehl-Abegg is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications. Copyright The copyright to this manual is held by Ziehl-Abegg, Künzelsau.

  • Page 5: Pictographs

    Translation of the original operating instructions ZETASYN – model series SM860 Safety instructions Pictographs Safety instructions are highlighted with warning triangles and are depicted according to the degree of hazard as follows. Danger! General hazardous area. Death or severe injury or significant property damage can occur if the corresponding precautions are not taken! Danger! Risk of moderate or minor injury if the corresponding precautions are not taken!

  • Page 6: Requirements Placed On The Personnel / Due Diligence

    Transport " Ziehl-Abegg electric motors are packed by the manufacturer for the types of transport and storage agreed upon. " Transport the motor(s) either with the original packing or at the casted eyelets or eyebolts using adequate hoists.

  • Page 7: Patent Situation

    Please pay attention to the patent situation concerning the use of elevator machines in the shaft. When using the ZETASYN according to our installation examples there are no problems with patents. In doubt please contact Ziehl-Abegg. " When installing the drive in the elevator shaft, the motor should be installed preferably at the lowest stopping point.

  • Page 8: Fastening The Brake

    Translation of the original operating instructions ZETASYN – model series SM860 Mechanical installation Fastening the brake The drive will be delivered with the mounted brake. Brake fixation in accordance with the brake operating instructions. Please leave sufficient room for swinging out the brakes. See section 9.2 Dimension Sheets. Mounting bowden cable Bowden cables for mechanical release of the brakes are optional avaiable.

  • Page 9: Fastening Rope Guard

    Translation of the original operating instructions ZETASYN – model series SM860 Mechanical installation Delivery status with mounted fixing plate Fastening rope guard • The drive unit is equipped with a rope protection hood. • The base support (1) is fastened to the motor housing in two places with one spacer sleeve (2), one M12 screw (3) and one washer (4) each.

  • Page 10: Electrical Installation

    Translation of the original operating instructions ZETASYN – model series SM860 Electrical installation 5 Electrical installation Safety precautions Mounting, electrical connection and commissioning are only to be performed by trained service personnel. Adhere to all machinery-related requirements and specifications supplied by the system manufacturer or machine builder.

  • Page 11: Sensor Connection

    If the absolute encoder has been detached, the new encoder-offset has to be deter- mined with the frequency inverter. Please see the inverter operation instructions for this proce- dure. Contacts SV120 round connector at absolute encoder ECN1313 (Ziehl-Abegg standard) Signal Designation...

  • Page 12: Brake Connection

    Translation of the original operating instructions ZETASYN – model series SM860 Electrical installation Brake connection " Please also refer to the operating instructions of the brake. " The brake is designed for static applications only. Any dynamic braking must be re- stricted to emergency braking and test braking.

  • Page 13: Adjusting The Brake

    " Reduced cooling when installed 1000 m above sea level. Therefore, from 1000 m above sea level, the torque must be reduced by 1 % per 100 m or the duty cycle time of 1.5 % per 100 m. " For all usage conditions that differ from the order, please contact Ziehl-Abegg. First Start-up Before first-time start-up, check the following:...

  • Page 14: Drive Approval Test

    As an example take a look at simplified diagram. The diagram is to be understood analogously. Their adaptation to other applications must be investigated. Ziehl-Abegg does not guarantee their suitability in such circumstances. If the circuitry is made corresponding simplified diagram: Press one of the key buttons at nominal speed until the elevator stops.

  • Page 15: Pull Out Of Safety Gear

    Translation of the original operating instructions ZETASYN – model series SM860 Start-up Brake control principle circuit diagram 1 Voltage supply 2 Button two circuit test/emergency evacuation 3 / 4 “Open brake” button 3. Testing the microswitches / inductive proximity switches The micro switches/inductive proximity switches have to be single tested.

  • Page 16: Emergency Evacuation

    Translation of the original operating instructions ZETASYN – model series SM860 Start-up Emergency evacuation Danger! The measures for emergency evacuation described below may only be performed by instructed persons for maintenance of the elevator or qualified personnel of elevator companies. 6.5.1 Emergency evacuation by release of the brakes In case of power failure or failure of the inspection mode, emergency rescue is only possible by...

  • Page 17: Faults And Remedy

    (and transformer) Brake control wrong / defective Check brake actuation Brake coil defective Replace brake (Special tools necessary! Contact Ziehl-Abegg customer service) Brake worn out Replace brake rotors(Special tools nec- essary! Contact Ziehl-Abegg customer service) Brake release monitoring...

  • Page 18: Inspection Intervals

    Spare parts Spare parts and accessories not supplied by Ziehl-Abegg have not been tested or approved by us. These parts may be lower in function or quality and therefore can reduce functionality or safety of the installation.

  • Page 19: Replacement Of The Traction Sheave

    Refasten external ventilation (optional) with six M6 cylinder-head screws (hexagon socket size • Determine the encoder offset again in accordance with the frequency inverter description. • If a different encoder system is installed, please contact Ziehl-Abegg. 8.3.2 Replacement of the traction sheave Danger! Incorrect assembly of the traction sheave can cause the sheave to come loose.

  • Page 20: Enclosure

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure Mounting the traction sheave • Clean the traction sheave and rotor flange. • Place the traction sheave at the centring of the rotor flange. Attention: Note the position of the clamping pins! •...

  • Page 21: Ground

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure Ground A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 21/48...

  • Page 22: Ec/Eu Declaration Of Conformity

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure EC/EU declaration of conformity A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 22/48...
  • Page 23 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 23/48...

  • Page 24: Operating Instructions Brake

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure Operating instructions brake A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 24/48...
  • Page 25 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 25/48...
  • Page 26 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 26/48...
  • Page 27 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 27/48...
  • Page 28 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 28/48...
  • Page 29 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 29/48...
  • Page 30 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 30/48...
  • Page 31 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 31/48...
  • Page 32 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 32/48...
  • Page 33 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 33/48...
  • Page 34 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 34/48...
  • Page 35 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 35/48...
  • Page 36 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 36/48...

  • Page 37: Eu Declaration Of Conformity For Brake

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure EU Declaration of Conformity for Brake A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 37/48...
  • Page 38 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 38/48...

  • Page 39: Eu Type Examination Certificate

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure EU Type Examination Certificate 9.6.1 EU type-examination certificate EU-BD 550 A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 39/48...
  • Page 40 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 40/48...
  • Page 41 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 41/48...
  • Page 42 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 42/48...
  • Page 43 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 43/48...

  • Page 44: Statement On Type Examination Certificates

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure 9.6.2 Statement on type examination certificates The rated brake torques can be found on the name plate. The switching times are assigned to the brake torque in the type examination certificate. Increases in the index (added with “/”) for a type examination certificate are only used for technical improvements and are approved by the authorised body with this condition.

  • Page 45: Housing Calculation

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure Housing calculation A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 45/48...

  • Page 46: Calculation Of Tight Fit

    Translation of the original operating instructions ZETASYN – model series SM860 Enclosure Calculation of tight fit Tight fit between brake disk and traction sheave with 3 heavy clamping pins, hole circle 230 mm 1 = tight fit with 3 heavy clamping pins on hole circle 230 mm 2 = traction sheave 3 = single-part rotor with brake disk Given:...
  • Page 47 Translation of the original operating instructions ZETASYN – model series SM860 Enclosure A-TBA11_02-GB 2210 Part.-No. 01008254-GB (ABV 550-2 / ESV 550) 47/48...
  • Page 48 Customer Service phone +49 7940 16-308 +49 7940 16-249 drives-service@ziehl-abegg.com Headquarters Ziehl-Abegg Heinz-Ziehl-Straße · 74653 Künzelsau Germany phone +49 7940 16-0 · fax +49 7940 16-249 drives@ziehl-abegg.de · www.ziehl-abegg.com...
