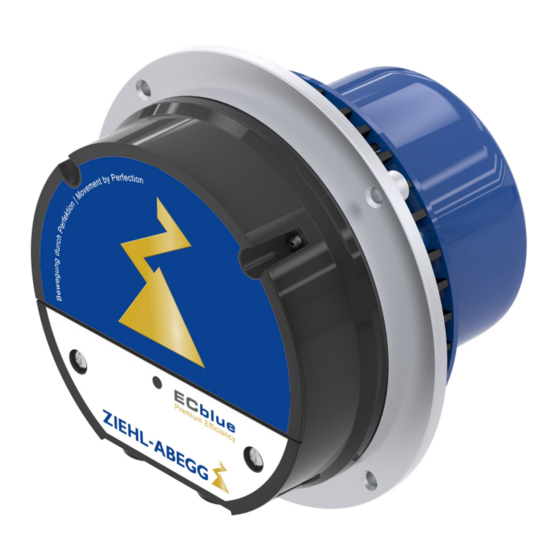

ZIEHL-ABEGG ECblue Series Quick Start Manual

Motor size b (ip54)
Hide thumbs Also See for ECblue Series:
Table of Contents

Advertisement

Quick Links

|
|
|
|
|
BRA
CZ
D
DK
E
ECblue
Motor size B (IP54)
Quick Start Guide
Detailed Assembly instructions on www.ziehl-abegg.com
Content
1
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1
Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2
Structure of the short operating instructions . . . . . . . . . . . . . . . . . .
1.3
Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2
Improper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3
Explanations of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
Transport, storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3
Disposal / recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2
4.3
Installation of axial fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.1
4.3.2
4.4
Mounting of centrifugal fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5
Mounting the motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1
Version with connection cables . . . . . . . . . . . . . . . . . . . . . . . . . . .
L-BAL-F055-GB 1634 Index 004
|
|
|
|
|
|
|
|
F
FIN
GB
H
I
LT
NL
P
ZAplus fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Part.-No. 00700561-GB
|
|
|
|
|
|
PL
RU
S
SK
TR
VRC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
☞
www.ziehl­abegg.com
. . . . . . . . . .
english
3
3
3
3
4
6
6
7
7
7
7
8
8
8
9
10
10
10
10
11
12
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECblue Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZIEHL-ABEGG ECblue Series

Summary of Contents for ZIEHL-ABEGG ECblue Series

  • Page 1: Table Of Contents

    Motor size B (IP54) Quick Start Guide Detailed Assembly instructions on www.ziehl-abegg.com Content General notes ..........
  • Page 2 Quick Start Guide ECblue Version without connection cables ..... . . Connection diagram ........Diagnostics / Faults .

  • Page 3: General Notes

    We do not accept any liability for possible errors or omissions in the information con- tained in data, illustrations or drawings provided. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications.

  • Page 4: Safety Instructions

    Quick Start Guide ECblue Safety instructions 2 Safety instructions This chapter contains instructions to prevent personal injury and property damage. These instructions do not lay claim to completeness. In case of questions and problems, please consult our company technicians. Information Mounting, electrical connection, and start-up operation may only be carried out by an electrical specialist in accordance with electrotechnical regulations (e.g.
  • Page 5 Quick Start Guide ECblue Safety instructions 3. That safety devices -if necessary- are mounted (EN ISO 13857)? 4. The impeller is out of reach? 5. Are the condensation water drains holes open or respectively closed according to the suitable installation position? 6.

  • Page 6: Intended Use

    Quick Start Guide ECblue Safety instructions 2.1 Intended use Attention! • The fans are only intended for the conveyance of air or mixtures similar to air. • Any other use above and beyond this is considered not for the intended purpose unless agreed otherwise by contract.

  • Page 7: Explanations Of Symbols

    The fans may not be operated until they are installed in line with their intended use. The supplied and certified guard grille of ZIEHL-ABEGG SE fans is designed in accordance with DIN EN ISO 13857 Table 4 (from the age of 14 up). In the event of deviations, further structural protective measures must be taken for safe operation.

  • Page 8: Disposal / Recycling

    Quick Start Guide ECblue Mounting • Fix pallets during transport. • Do not stack pallets. • Only handle with suitable hoisting gear. • Design RG.. / RD.. / ER.. / GR.. : Fan unit may only be lifted and transported when using a suitable hoisting device (load spreader).

  • Page 9: Connecting Lead, Position Terminal Compartment

    Quick Start Guide ECblue Mounting • Prior to installing the fan, it is to be checked whether the safety zone as per EN ISO 13857 and in household appliances as per EN 60335 are met. If the installation height (danger zone) above the reference level is greater than or equal to 2700 mm and is not reduced by auxiliary means such as chairs, ladders, work platforms or bases on vehicles, a guard grille against accidental contact is not necessary at the fan.

  • Page 10: Installation Of Axial Fans

    Quick Start Guide ECblue Mounting 4.3 Installation of axial fans 4.3.1 Fans design A, D, K, S and W (without nozzles) For attachment to fixed motor flange use screws with property class 8.8 or A2-70 (stainless steel) to EN ISO 4014 and provide with suitable screw locking. Permissible tightening torques M Thread size Property class 8.8, friction coefcient µges = 0.12...

  • Page 11: Mounting The Motor

    • The max. permissible mass of the impeller ort he component to be driven must be inquired from and confirmed in writing by ZIEHL-ABEGG. Design K (with rotor flange) or D (with offset rotor flange) as a drive for fans: •...

  • Page 12: Electrical Installation

    Quick Start Guide ECblue Electrical installation 5 Electrical installation 5.1 Version with connection cables In versions with connecting lead the connection is made to the colour coded wires. i_1360-402 28.08.2013 The bands around the cables show national colour codes which may be available on the field side. Do not loosen the safety screws from the housing! For line and relay: hose cable 5 x 1.0 mm (18 AWG) comparable LiYY-JB...

  • Page 13: Version Without Connection Cables

    Quick Start Guide ECblue Electrical installation 5.2 Version without connection cables 29.08.2013 v_anchluss_ecblue_B.vsd 1 Cover for terminal compartment 2 Cable glands (2 x M16) seal insert with two holes 5 mm for two cables applicable if necessary 3 Do not loosen the safety screws from the housing! 4 Connection control system 5 Connection alarm relay and mains connection 6 Status LED...
  • Page 14 Quick Start Guide ECblue Electrical installation Connection data of terminals Line, relay Modulation Terminal Stripping length 10 mm 10 mm Conductor cross-section rigid min. 0.2 mm 0.2 mm Conductor cross-section rigid max. 4 mm 1.5 mm Conductor cross-section flexible min. 0.2 mm 0.2 mm Conductor cross-section flexible max.
  • Page 15 Quick Start Guide ECblue Electrical installation Push-In Terminals Rigid conductors and conductors with wire end ferrules can be plugged directly into the terminal without tools. Permissible tightening torques M Thread size Tightening Remarks torque M Cable gland Sealing area: cable diameter 4…10 mm 2.5 Nm Cover for terminal com- 2.5 Nm...

  • Page 16: Connection Diagram

    Quick Start Guide ECblue Electrical installation 5.3 Connection diagram ECblue (_ _ _ _ _-_I_.B_._ _ _ _) (_ _ _ _ _-_I_.D_._ _ _ _) max. AC 250 V 2 A 10V GND E1 (D+) (D-) 10 k Signal 0...10 V Netzspannung Leistungsschild...
  • Page 17 Quick Start Guide ECblue Electrical installation Terminal Function / connection L1, N, PE Mains connection (observe the line voltage indicated rating plate). 11, 14 Relay output “K1” for fault indication. • “11” “14” For operation the relay is energized, connections bridged.

  • Page 18: Diagnostics / Faults

    Quick Start Guide ECblue Diagnostics / Faults 6 Diagnostics / Faults Status output with flashing code 22.06.2012 v_flash_expl_red_1_x.VSD LED Code Relays K1* Cause de-energized, 11 - 14 interrupted No line voltage energized, 11 - 14 bridged Normal operation without fault energized, 11 - 14 bridged No enable = OFF energized, 11 - 14 bridged...

  • Page 19: Enclosure

    Quick Start Guide ECblue Enclosure 7 Enclosure 7.1 Technical data Line voltage* Voltage spezifications see rating DC voltage range plate (DC supply not UL and VDE ap- proved!) 1 ~ 200...277 V, 50/60 Hz 280...400 V (+/- 2 %) 1 ~ 100...130 V, 50/60 Hz 140...400 V (+/- 2 %) DC 110 V 110...400 V (+/- 2 %)
  • Page 20 Quick Start Guide ECblue Enclosure Harmonics current Active power factor adjustment for sinusoidal input current (PFC = Power - Factor - controller), harmonic current in accordance with EN 61000-3-2 are guaranteed. Max. leakage current according to < 3.5 mA the defined networks of EN 60990 dB(A) values product catalog Ball bearings grease service-life...

  • Page 21: Ec Declaration Of Incorporation

    Electronically commutated internal or external rotor motor (also with integrated EC controller) complies with the requirements in Appendix I, Articles 1.1.2, 1.1.5, 1.4.1, 1.5.1 in EG Machinery Directive 2006/42/EG. ZIEHL-ABEGG SE The manufacturer is the Heinz-Ziehl-Strasse D-74653 Künzelsau The following harmonised standards have been used: EN 60204- Safety of machinery;...
  • Page 22 Quick Start Guide ECblue EC Declaration of Incorporation It is prohibited to commission this incomplete machine until it has been secured that the machine into which it was incorporated complies with the stipulations of the EC Machinery Directive. Dr. W. Angelis - Technical Director Ventilation Division Künzelsau, 29.01.2016 L-BAL-F055-GB 1634 Index 004 Part.-No.

  • Page 23: Manufacturer Reference

    Email: fan-controls-service@ziehl-abegg.de Our worldwide contacts are available in our subsidiaries for deliveries outside of Ger- many, see www.ziehl-abegg.com. If you make returns for inspections or repairs we need certain information in order to facilitate focused trouble shooting and fast repair. Please use our repair ticket for this. It is provided to you after you have consulted our support department.
