Tree Frogs CABIN LOFT Install Manual

Hide thumbs

Advertisement

Table of Contents

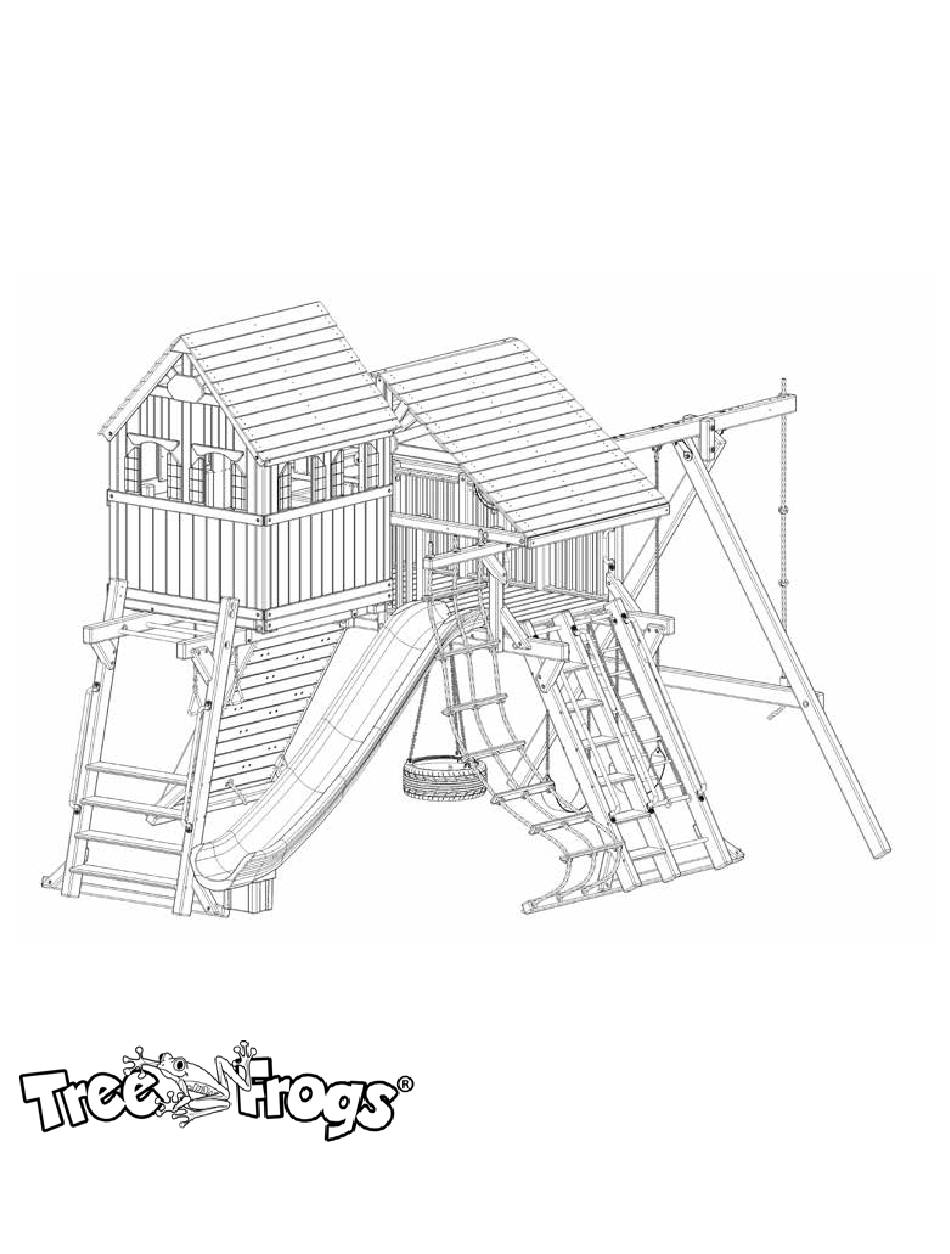

CABIN LOFT INSTALL MANUAL
4465 West Sam Houston Parkway N.
Houston, Texas 77041
WWW.TREEFROGSSHOWROOMS.COM
© 2018 KID STRUCTURES INC.
Version 1:20
Sections
Section 1: Cover & Liability Info
Section 2: Product Parts
Section 3: Sub-Assemblies
Section 4: Main Assebmly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CABIN LOFT and is the answer not in the manual?

Questions and answers

Related Manuals for Tree Frogs CABIN LOFT

Summary of Contents for Tree Frogs CABIN LOFT

  • Page 1 CABIN LOFT INSTALL MANUAL Version 1:20 Sections Section 1: Cover & Liability Info Section 2: Product Parts Section 3: Sub-Assemblies 4465 West Sam Houston Parkway N. Section 4: Main Assebmly Houston, Texas 77041 WWW.TREEFROGSSHOWROOMS.COM © 2018 KID STRUCTURES INC.

  • Page 2: Important - Please Read

    Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 3 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 4 ● Be sure that the sealant you select is non-toxic and child safe. Your local Tree Frogs Wooden Swing Set Factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 5 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.
  • Page 6 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 7 And for a period of 1-Year Tree Frogs warranties all ropes, structural foam molded slides to be free of defects in material and workmanship. Fading is not considered a defect and may occur with seasonal and geographical conditions.
  • Page 8 Picture Description QTY. 048-1 31 1/4” Slim Lower Rail 048-2 6” Chimney Block #2 048-3 7” Chimney Block #1 048-4 14 5/16” Above Window Filler 048-5 10” Short Fan Board 048-6 15” Center Fan Board 048-7 18” Slide Side Short Facia...
  • Page 9 Picture Description QTY. 048-8 18” Entry Side Short Facia 048-9 19 3/4” Side Upper Center 048-10 20” Window Arch 048-11 23 1/2” Spiral Slide Filler 048-12 31 1/4” Lower Rail 048-13 32 3/4” End Center 048-14 38 3/8” Bottom Fan Board...
  • Page 10 Picture Description QTY. 048-15 40 1/4” Panel Support 048-16 44” Center Wood Roof Support 048-17 51 1/4” Side End Board 048-18 54 1/4” Slim Deck Board 048-19 57 1/4” Deck Support 048-20 58 5/8” End Side Board 048-21 61” Slim Facia...
  • Page 11 Picture Description QTY. 048-22 9 3/4” Wood Roof Peak (CC-057) 048-23 14” Left Shutter (CC-058) 048-24 14” Left Shutter 048-25 19 3/4” Side Shutter Support 048-26 31 1/4” Wide Lower Panel Board 048-27 32 3/4” End Shutter Board 048-28 51 1/4” Side Outside Shutter Board...
  • Page 12 Picture Description QTY. 048-29 54 1/4” Large Deck Board 048-30 61” Slide Side Wide Facia 048-31 63 3/4” End Long Shutter Board (CC-198) 048-32 14” Center Fan Facia 048-33 47 7/16” Wood Roof Support 048-34 40 1/4” Monkey Bar 048-35 40 1/4”...
  • Page 13 Picture Description QTY. 048-36 40 1/4” Entrapment Filler-2 048-37 41 1/2” Ladder Step 048-38 17 1/2” Short Joist (CC-149) 048-39 19” Left Gusset (CC-148) 048-40 19” Right Gusset 048-41 19” Gusset for Short Joist 048-42 31 3/4” Underneath Slide Support...
  • Page 14 Picture Description QTY. 048-43 32” Slide Support Post 048-44 54” Mainbeam Facia 048-45 56 1/2” Corner Post 048-46 61” Mainbeam 048-47 61 7/16” Long Joist 048-48 67 1/2” Trapeze Replacement 048-49 71 1/2” Monkey Bar Ground Runner...
  • Page 15 Picture Description QTY. 048-50 9 11/16” Chimney Block #3 048-51 13” Chimney Block (CC-190) 048-52 16” Monkey Bar Left Gusset (CC-191) 048-53 16” Monkey Bar Right Gusset 048-54 28 1/4” Entrapment Block 048-55 98” Left Monkey Bar Overhead 048-56 98” Right Monkey Bar Overhead...
  • Page 16 Picture Description QTY. 048-57 98” Left Ladder Leg 048-58 98” Right Ladder Leg 048-59 67” Wood Roof Board-Ripped 048-60 67” Wood Roof Board...
  • Page 17 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag A-1 Bag A-2 Bag A-3 1/2” Acorn Nut Plated 1/2” x 7” Carriage Bolt 1/2” Hex Nut QTY.
  • Page 18 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag A-13 Bag A-14 Bag B-1 Bag B-2 3/4” USS Flatwasher #2 & 3 Drive Bit 90 Degree Bracket 1/2”...
  • Page 19 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag B-8 Bag B-9 3/8” x 3 1/2” Hex Lag Screw 3/8” x 5” Hex Lag Screw QTY.
  • Page 20 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag C Bag D-1 Bag D-2 1 1/2” Coated Deck Screw 3/8” Acorn Nut Plated 3/8” x 5” Carriage Bolt QTY.
  • Page 21 Picture Description QTY. 048-A Cabin Loft Bracket 048-B 36 1/2” Playgrip Tube 048-C Playgrip Ladder Handle...

  • Page 22: Parts Needed

    Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED 048-38- 17 1/2” Short Joist- 6A-4- 1/2” x 6 1/2” Carriage Bolt- 6Q- 3/4” USS Flatwasher- 048-47- 61 7/16” Long Joist- 6P- 1/2” USS Flatwasher- 6M- 1/2” Split Lockwasher- 458-29- 119 1/2” SB Top Joist- 6C- 1/2”...
  • Page 23 Mega Jaguar Cabin Setup PARTS NEEDED FROM PLAYCENTER HARDWARE CC-148- 19” Right Gusset- 6F- 3/8” x 3 1/2” Hex Lag Screw- 6O- 3/8” USS Flatwasher- CC-149- 19” Left Gusset- A-2- 1/2” x 6 1/2” Carriage Bolt- A-11- 3/4” USS Flatwasher- 458-21- 38 7/8”...
  • Page 24 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED 048-48- 67 1/2” Trapeze Replacement- (1) 6A-4- 1/2” x 6 1/2” Carriage Bolt- 6Q- 3/4” USS Flatwasher- CC-176- 100” Upper Rope Arm- 6P- 1/2” USS Flatwasher- 6M- 1/2” Split Lockwasher- CC-149- 19” Right Gusset- 6C- 1/2”...
  • Page 25 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED 458-7- 11 1/2” Mid Rail Bottom- A-4- 1/4” x 3” Hex Lag Screw- CC-100- 25” Rail Bottom- A-8- 1/4” USS Flatwasher- 6N- 1/4” USS Flatwasher- 6D- 1/4” x 3” Hex Lag Screw-...
  • Page 26 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED CC-142- 25” Entrapment Block- FROM PLAYCENTER HARDWARE 048-41- 19” Gusset for Short Joist- 6G- 3/8” x 5” Hex Lag Screw- 6O- 3/8” USS Flatwasher- FROM CABIN HARDWARE B-14- 3/8” USS Flatwasher- B-8- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 27 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED REMOVE THE GUSSET NEXT TO THE ROCKWALL FINSHED CABIN SETUP...

  • Page 28: Ladder Assembly

    Ladder Assembly PARTS NEEDED HARDWARE NEEDED 048-57- 98” Left Ladder Leg- A-4- 1/4” x 4 1/2” Hex Lag Screw- (16) 048-58- 98” Right Ladder Leg- A-10- 1/4” USS Flatwasher- (16) 048-37- 41 1/2” Ladder Step- A-6- 3/8” x 5” Hex Lag Screw- 048-49- 71 1/2”...

  • Page 29: Overhead Assembly

    Ladder Assembly Overhead Assembly PARTS NEEDED HARDWARE NEEDED CC-148- 19” Right Gusset- B-14- 3/8” USS Flatwasher- CC-149- 19” Left Gusset- B-8- 3/8” x 3 1/2” Hex Lag Screw- 048-56- 98” (R) Monkey Bar Overhead- A-15- 2” Metal Tap Screw- (12) 048-55- 98”...

  • Page 30: Monkey Bar Assembly

    Monkey Bar Assembly PARTS NEEDED HARDWARE NEEDED Ladder Assebmly- B-3- 1/2” x 7” Carriage Bolt- A-13- 3/4” USS Flatwasher- Overhead Assembly- A-12- 1/2” USS Flatwasher- A-9- 1/2” Split Lockwasher- CC-190- 16” Monkey Bar Left Gusset- A-3- 1/2” Hex Nut- A-1- 1/2” Acorn Nut Plated- CC-191- 16”...
  • Page 31 Monkey Bar Assembly Cabin Inside Wall PARTS NEEDED HARDWARE NEEDED 048-C- Playgrip Ladder Handles- B-13- 1/4” USS Flatwasher- B-11- #14 x 1” Pan Phillips T/S- 048-45- 56 1/2” Corner Post- B-2- 1/2” Acorn Nut Plated- B-4- 1/2” Hex Nut- 048-46- 61” Mainbeam- SB-12- 1/2”...
  • Page 32 Cabin Inside Wall PARTS NEEDED HARDWARE NEEDED 048-44- 56” Mainbeam- B-14- 3/8” USS Flatwasher- 048-21- 61” Slim Facia- B-9- 3/8” x 5” Hex Lag Screw- B-7- 3/8” x 2 1/2” Hex Lag Screw-...
  • Page 33 Cabin Inside Wall PARTS NEEDED HARDWARE NEEDED 048-8- 18” Entry Side Short Facia- B-7- 3/8” x 2 1/2” Hex Lag Screw- C- 1 1/2” Coated Deck Screw- (32) 048-1- 31 1/4” Slim Lower Rail- B-14- 3/8” USS Flatwasher- 048-20- 58 5/8” End Side Board- 048-31- 63 3/4”...
  • Page 34 Cabin Outside Wall PARTS NEEDED HARDWARE NEEDED 048-46- 61” Mainbeam- B-3- 1/2” x 7” Carriage Bolt- B-16- 3/4” USS Flatwasher- 048-45- 56 1/2” Corner Post- B-15- 1/2” USS Flatwasher- B-12- 1/2” Split Lockwasher- 048-44- 54” Mainbeam Facia- B-4- 1/2” Hex Nut- B-2- 1/2”...
  • Page 35 Cabin Outside Wall PARTS NEEDED HARDWARE NEEDED 048-21- 61” Slim Facia- B-14- 3/8” USS Flatwasher- 048-20- 58 5/8” End Side Board- B-7- 3/8” x 2 1/2” Hex Lag Screw- 048-31- 63 3/4” End Long Shutter Board- C- 1 1/2” Coated Deck Screw- (44) 048-26- 31 1/4”...
  • Page 36 Monkey Bar Install PARTS NEEDED HARDWARE NEEDED Monkey Bar- A-2- 1/2” x 7” Carriage Bolt- A-13- 3/4” USS Flatwasher- A-12- 1/2” USS Flatwasher- A-9- 1/2” Split Lockwasher- A-3- 1/2” Hex Nut- A-1- 1/2” Acorn Nut Plated- ATTACH THE MONKEY BAR TO THE UNIT AS SHOWN BELOW PLACE THE MONKEY BAR ON THE DECK OF THE UNIT.
  • Page 37 Monkey Bar Install PARTS NEEDED HARDWARE NEEDED 048-34- 40 1/4” Monkey Bar Cap- A-11- 3/8” USS Flatwasher- 048-35- 40 1/4” Entrapnment Filler-1 A-5- 3/8” x 3 1/2” Hex Lag Screw- 048-36- 40 1/4” Entrapment Filler-2- B-8- 3/8” x 3 1/2” Hex Lag Screw- B-14- 3/8”...
  • Page 38 Cabin Install PARTS NEEDED HARDWARE NEEDED Cabin Inside Wall- B-9- 3/8” x 5” Hex Lag Screw- 048-A- Cabin Loft Bracket- B-14- 3/8” USS Flatwasher- B-8- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 39 Cabin Install PARTS NEEDED HARDWARE NEEDED Cabin Outside Wall- B-14- 3/8” USS Flatwasher- 048-21- 61” Slim Facia- B-7- 3/8” x 2 1/2” Hex Lag Screw- B-9- 3/8” x 5” Hex Lag Screw- 61” Across...
  • Page 40 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-A- Cabin Loft Bracket- B-14- 3/8” USS Flatwasher- 048-18- 54 1/4” Side End Board- B-8- 3/8” x 3 1/2” Hex Lag Screw- 048-29- 54 1/4” Large Deck Board- C- 1 1/2” Coated Deck Screw-...
  • Page 41 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-7- 18” Slide Side Short Facia- B-14- 3/8” USS Flatwasher- 048-30- 61” Slide Side Wide Facia- B-7- 3/8” x 2 1/2” Hex Lag Screw-...
  • Page 42 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-21- 61” Slim Facia- B-14- 3/8” USS Flatwasher- 048-43- 32” Slide Support Post- B-7- 3/8” x 2 1/2” Hex Lag Screw- B-13- 1/4” USS Flatwasher- B-6- 1/4” x 3” Hex Lag Screw-...
  • Page 43 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-42- 31 3/4” Underneath Slide Support- B-14- 3/8” USS Flatwasher- 048-1- 31 1/4” Slim Lower Rail- B-9- 3/8” x 5” Hex Lag Screw- 048-28- 51 1/4” Side Outside Shutter Board- C- 1 1/2” Coated Deck Screw- (24) 048-17- 51 1/4”...
  • Page 44 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-19- 57 1/4” Deck Support- B-11- #14 x 1” Pan Phillips T/S- B-13- 1/4” USS Flatwasher- C- 1 1/2” Coated Deck Screw- (13)
  • Page 45 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-26- 31 1/4” Wide Lower Panel Board- C- 1 1/2” Coated Deck Screw- (60) D-2- 3/8” x 5” Carriage Bolt- 048-17- 51 1/4” Side End Board- B-15- 1/2” USS Flatwasher- B-14- 3/8” USS Flatwasher- 048-28- 51 1/4”...
  • Page 46 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-22- 9 3/4” Wood Roof Peak- D-4- 2” Coated Deck Screw- CC-198- 14” Center Fan Facia- C- 1 1/2” Coated Deck Screw- (24) 048-6- 15” Center Fan Board- 048-5- 10” Short Fan Board- 048-14- 38 3/8” Bottom Fan Board- MAKE 2 FAN ASSEMBLIES 17 1/2”...
  • Page 47 Cabin Install PARTS NEEDED HARDWARE NEEDED Fan Assembly- C- 1 1/2” Coated Deck Screw- (32) 048-13- 32 3/4” End Center- 048-27- 32 3/4” End Shutter Board-...
  • Page 48 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-15- 40 1/4” Panel Support- C- 1 1/2” Coated Deck Screw- (24) 048-4- 14 15/16” Above Window Filler- (16)
  • Page 49 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-10- 20” Window Arch- C- 1 1/2” Coated Deck Screw- (72) CC-057- 14” Left Shutter- CC-058- 14” Rigth Shutter-...
  • Page 50 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-21- 61” Slim Facia- B-14- 3/8” USS Flatwasher- 048-9- 19 3/4” Side Upper Center- B-7- 3/8” x 2 1/2” Hex Lag Screw- 048-25- 19 3/4” Side Shutter Support- C- 1 1/2” Coated Deck Screw-...
  • Page 51 Cabin Install PARTS NEEDED HARDWARE NEEDED CC-057- 14” Left Shutter- C- 1 1/2” Coated Deck Screw- (112) CC-058- 14” Right Shutter- 048-60- 67” Wood Roof Board- (10)
  • Page 52 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-16- 44” Center Wood Roof Support- D-3- 1 1/4” Coated Deck Screw- (20) 048-60- 67” Wood Roof Board- (10) C- 1 1/2” Coated Deck Screw- (20)
  • Page 53 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-59- 67” Wood Roof Board- Ripped- C- 1 1/2” Coated Deck Screw- 048-11- 23 1/2” Spiral Slide Filler- B-13- 1/4” USS Flatwasher- B-5- 1/4” x 2” Hex Lag Screw-...
  • Page 54 MEGA JAGUAR PLAYCENTER WITH CABIN LOFT...
