MotionCam Outdoor HighMount (PhOD)
Jeweller user manual
Updated May 9, 2025

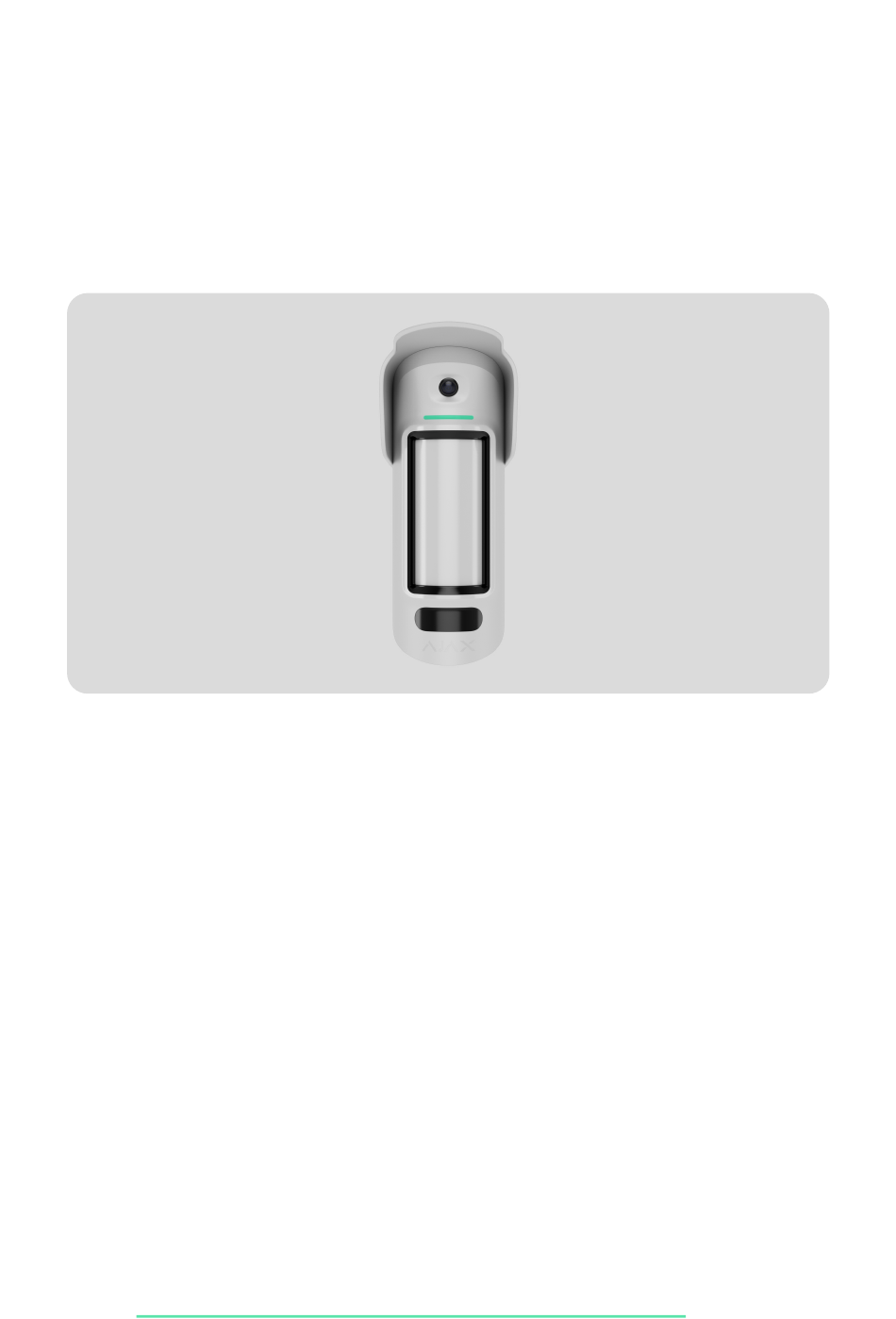

MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion
detector supporting Photo by alarm, Photo on demand, Photo by scenario,
Photo by schedule, and Photo by arming/disarming features.
It detects movement at a distance of up to 15 m. The device is equipped
with a PIR sensor and uses radio frequency scanning with a K-band
microwave sensor to filter out infrared interference. Also, it features an
anti-masking system that detects attempts to block the detector's field of
view. The device is designed for outdoor and indoor use.
MotionCam Outdoor HighMount (PhOD) Jeweller communicates with a
hub via two secure radio protocols. The detector uses Jeweller to transmit
alarms or events and Wings to transmit photos and update firmware. The
communication range in an open space is up to 1,700 m.
Buy MotionCam Outdoor HighMount (PhOD) Jeweller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionCam Outdoor HighMount Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionCam Outdoor HighMount Jeweller

Summary of Contents for AJAX MotionCam Outdoor HighMount Jeweller

  • Page 1 MotionCam Outdoor HighMount (PhOD) Jeweller user manual Updated May 9, 2025 MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion detector supporting Photo by alarm, Photo on demand, Photo by scenario, Photo by schedule, and Photo by arming/disarming features. It detects movement at a distance of up to 15 m. The device is equipped with a PIR sensor and uses radio frequency scanning with a K-band microwave sensor to filter out infrared interference.

  • Page 2: Functional Elements

    Functional elements Detector 1. Hood for protecting the camera and anti-masking sensors from rain and snow. 2. Camera. 3. LED indicator. 4. Masking sensor. 5. Motion sensor lens. 6. Infrared (IR) illumination. It is used to take photos in dark and low-light conditions.

  • Page 3: Swivel Mount

    12. Terminals for the external power supply connection. 13. QR code with the device ID. It is used to add the device to the hub. 14. Power button. Tamper button Swivel mount 1. Fixing points to attach the SmartBracket mounting panel to the swivel mount with screws.
  • Page 4 16. Magnet. It is used to trigger the device magnetometer in case of any attempts to tilt or shift the detector or detach it from the surface. Compatible hubs and range extenders An Ajax hub with OS Malevich 2.26 and later versions is required for the device to operate.

  • Page 5: Operating Principle

    The notifications contain the name of a space (the name of a guarded facility), the device name, and the virtual room to which the device is assigned. How Ajax notifies users of alarms Learn more about Ajax motion detectors Protection against false alarms...

  • Page 6: Temperature Compensation

    MotionCam Outdoor HighMount (PhOD) Jeweller uses the SmartDetect algorithm to prevent false alarms. This algorithm allows the detector to analyze the thermal diagram read by the sensor, including the intensity of infrared radiation, size of the heat spot, time spent in the detection area, and other parameters.

  • Page 7: Firmware Update

    If a new firmware version for MotionCam Outdoor HighMount (PhOD) Jeweller is available, the icon appears in Ajax apps in the Devices tab. An admin or a PRO with access to the system settings can run an update via device...
  • Page 8 When an alarm is received, the operator of the security company monitoring station knows what happened and precisely where to send a rapid response unit. The addressability of Ajax devices allows sending events to the PRO Desktop or the CMS, the type of the device, its name, security group, and virtual room.
  • Page 9 The photos can be displayed in the app as an image or an animated series (if more than 1 photo is taken). The number of images in the series can be configured in Ajax apps. To view the received photos, tap on the corresponding MotionCam Outdoor HighMount (PhOD) Jeweller...
  • Page 10 Users can view the images from the animated series frame by frame by swiping them left. You can save the photo verification result as a video or photo by tapping the download icon.
  • Page 11 Photo by alarm The detector takes photos by alarm only if the movement is detected and only when armed mode is on. By default, the Photo by alarm feature is enabled for all detectors. The number of images and their resolution can be changed in the device settings .
  • Page 12 The Photo on demand feature allows users to take photos using the built- in cameras of detectors that support photo verification. With this feature, you can check the situation at the site: find out what the children are doing, check if your pet is OK, or simply monitor the situation at home. Depending on the settings, photos can be taken at any time or when MotionCam Outdoor HighMount (PhOD) Jeweller is armed.
  • Page 13 The Photo by scenario feature allows you to create a scenario for motion detectors supporting photo verification. These detectors will take pictures in case of alarms from specified Ajax devices. By default, the Allow photos by scenarios option is disabled for all detectors.
  • Page 14 If the CMS software supports photo verification, photos by scenario are available to the CMS engineers. Photos by scenario are also available in PRO Desktop app. Photos by scenario will not be sent to the CMS if only a direct connection with the monitoring station is used.
  • Page 15 Photos taken by schedule are not sent to the CMS if only a direct connection with the monitoring station is used. How to set up Photo by schedule Photo by arming/disarming The Photo by arming/disarming feature allows users to receive photos from a built-in camera when the security state changes.

  • Page 16: Selecting The Installation Site

    How to set up Photo by arming/disarming Selecting the installation site MotionCam Outdoor HighMount (PhOD) Jeweller is suitable for securing the territory of the protected facility, such as private houses, parking lots, construction areas, unheated premises, etc. The device is suitable for installation both outdoors and indoors.

  • Page 17: Signal Strength

    20 cm. The presence of objects or structures that can obstruct the detector’s view. Consider the placement recommendations when developing a system project. Only specialists should design and install Ajax systems. A list of recommended partners is  available here Signal strength The signal strength is determined by the number of undelivered or corrupted data packages over a certain period of time.
  • Page 18 What is Wings signal strength test Motion detection zone The detector location determines the area to be monitored and the effectiveness of the security system. When selecting the installation place, consider the direction of the detector sensors and camera, viewing angles, and the presence of obstacles to the detector’s view.

  • Page 19: Installation

    Do not install the detector 1. In places where objects or structures can block the detector’s view. For example, behind a tree or a column. 2. In places where glass structures can block the detector’s view; the device does not detect movement behind glass. 3.
  • Page 20 Before installing MotionCam Outdoor HighMount (PhOD) Jeweller, ensure that you have chosen the optimal location that complies with the requirements of this manual. Do not install the device near any magnetic field sources. If any magnetic source is nearby, adjust the Magnetic sensor sensitivity in the device settings or change the device installation place.
  • Page 21 2. Attach the plastic panel to the surface using a bundled screw. 3. Remove the rubber sealing plugs that protect the top and side screws of the swivel mount. Do not use sharp or spike tools to prevent damaging the sealing plugs.
  • Page 22 4. Unscrew the top screw and the holding screw at the bottom of the swivel mount. Disassemble the rear part of the swivel mount by sliding it up. If you are connecting an external power supply, refer to the Connecting an external power supply section to learn how to route the cable through the swivel mount.
  • Page 23 6. Attach the front part of the swivel mount to the rear part and tighten the top screw and the holding screw at the bottom. 7. Remove the SmartBracket mounting panel from the detector. Unscrew the holding screw first and slide the panel down. 8.
  • Page 24 11. Place the detector on the SmartBracket mounting panel. 12. Lose the top screw of the swivel mount, adjust the horizontal position of the detector field of view, then tighten the top screw up. 13. Lose the side screw of the swivel mount, adjust the detector’s tilt angle, then tighten the side screw up.
  • Page 25 The tilt angle depends on the detector installation height. To adjust the proper detector field of view, we recommend setting the following tilt angle relative to the detector installation height: Installation height Tilt angle 2.0 m 15.0° 2.2 m 15.9° 2.4 m 16.8°...

  • Page 26: Connecting An External Power Supply

    device from quick dismantling. Connecting an external power supply When connecting an external power supply and using MotionCam Outdoor HighMount (PhOD) Jeweller, follow the general electrical safety regulations for using electrical appliances, as well as the requirements of regulatory legal acts on electrical safety. MotionCam Outdoor HighMount (PhOD) Jeweller is equipped with terminals for connecting a 12–24 V⎓...
  • Page 27 1. De-energize the external power supply cable. 2. Dismount the detector and swivel mount if they have already been installed. 3. Remove the plastic panel from the swivel mount. Carefully break out the corresponding perforated part to run the cable from the top, back, or sides.
  • Page 28 5. Unscrew the top screw and the holding screw at the bottom of the swivel mount. Disassemble the rear part of the swivel mount by sliding it up. 6. Route the cable inside the detector through the following elements: 1. The plastic panel of the swivel mount 2.

  • Page 29: Adding To The System

    Ensure the hub is switched on and has internet access via Ethernet, Wi-Fi, and/or mobile network. 6. Check the states in the Ajax app to ensure the space is disarmed and the hub is not starting an update.
  • Page 30 7. Switch on the device by holding the power button for 3 seconds. Once added to the hub, the device will appear in the list of hub devices in the Ajax app. The update frequency for device statuses in the list depends...

  • Page 31: Functionality Testing

    This must be done through the Ajax app. Functionality testing An Ajax system provides several types of tests to help select the correct installation place for the devices. For MotionCam Outdoor HighMount (PhOD) Jeweller, the following tests are available: Motion detection area test —...
  • Page 32 Icons Icons in an Ajax app display some of MotionCam Outdoor HighMount (PhOD) Jeweller states. You can check the icons in the Devices tab. Icon Meaning Jeweller signal strength. It displays the signal strength between the hub and the device. The recommended value is 2–3 bars.
  • Page 33 The device operates in Always active mode. Learn more The device operates through the radio signal range extender. Learn more Delay when entering and/or leaving is enabled. Learn more The device operates in Night mode. Learn more Masking is detected. The device is in the signal attenuation test mode. Learn more The device is automatically disabled because the number of alarms has been exceeded.
  • Page 34 States The states include information about the device and its operating parameters. The states of MotionCam Outdoor HighMount (PhOD) Jeweller can be found in Ajax apps: 1. Go to the Devices tab. 2. Select MotionCam Outdoor HighMount (PhOD) Jeweller in the list.
  • Page 35 Displays the error when transferring data to the new hub: Failed — the device has not been Data import transferred to the new hub. Learn more Tapping on opens the list of device malfunctions. Malfunction The field is only displayed if a malfunction is detected.
  • Page 36 Connection status via Jeweller channel between the device and the hub (or the range extender): Online — the device is connected to the hub (or the range extender). Normal Connection via Jeweller state. Offline — the device is not connected to the hub (or the range extender).
  • Page 37 Offline — the device is not connected to the range extender. The field is displayed if the device operates via the radio signal range extender. The battery charge level of the device. Two states are available: Battery low. Battery charge When the batteries need to be replaced, users and the security company will receive appropriate notifications.
  • Page 38 Displays the selected power of the transmitter. The parameter appears when the Max or Attenuation option is selected in the Signal Transmitter power attenuation test menu. Learn more Sensitivity level of the motion detector: Normal Sensitivity High Select the sensitivity depending on the detection zone test results of the The state of the masking sensor:...
  • Page 39 The number of alarms is specified in the Devices auto deactivation settings in the Ajax PRO app. Learn more Shows the state of the device’s one-time deactivation setting: No —...
  • Page 40 Displayed if Allow photos on demand is Photo on demand access enabled in the space settings in the Privacy section. Alarm reaction Shows how the detector responds to alarms: Instant alarm — the armed detector immediately responds to a threat and raises an alarm.
  • Page 41 time the user has to disarm the security system after entering the premises. Learn more Delay when leaving in Night mode. Night mode delay when leaving (arming delay) is the time the user has to leave the premises after Night mode is enabled. Night mode delay when leaving Learn more Delay when entering in Night mode when...
  • Page 42 To change MotionCam Outdoor HighMount (PhOD) Jeweller settings in Ajax apps: 1. Go to the Devices tab. 2. Select MotionCam Outdoor HighMount (PhOD) Jeweller in the list. 3. Go to Settings 4. Set the required settings. 5. Tap Back to save the new settings.
  • Page 43 The room name is displayed in the text of SMS and notifications in the events feed. When this option is disabled, the LED Alarm LED indication indicator does not notify users of alarms and tamper triggering. Sensitivity level of the motion detector. It depends on the type of the facility, the presence of probable sources of false alarms, and the specifics of the protected...
  • Page 44 It is intended for cases when the device detects many movements, but they are filtered out as unconfirmed alarms. Each movement activates the camera, which leads to fast battery discharge. A high threshold reduces the number of camera activations in places with many movements and saves the battery life.
  • Page 45 The number of photos taken by the device camera: No photo 1 photo Series of 2 Series of 3 (by default) Photos by alarm Series of 4 (only for 320 × 240 px image resolution) Series of 5 (only for 320 × 240 px image resolution) The selected number of photos is set for Photo by alarm and Photo by scenario.
  • Page 46 Series of 5 (only for 320 × 240 px image resolution) It is displayed if the Allow photos on demand feature is enabled in the space settings in the Privacy section. When this option is enabled, the detector is always in armed mode and detects movement.
  • Page 47 Instant alarm — the armed detector immediately responds to a threat and raises an alarm. Entry/Exit — when a delay is set, the armed device starts the countdown and does not raise an alarm even if it is triggered before the countdown is completed.
  • Page 48 Opens the menu for creating and setting scenarios for the device. The menu allows you to create a scenario according to which the detector takes Scenarios photos when specified Ajax devices are triggered or by schedule. Learn more Switches the device to the firmware Firmware update...
  • Page 49 Opens the menu for checking the motion detection area. You can take a photo to check the camera field of view and maximum detection zone. Motion detection area The photo helps to adjust the detector’s tilt angle and horizontal position correctly. Learn more Switches the device to the Jeweller signal strength test mode.
  • Page 50 Learn more Opens the MotionCam Outdoor HighMount User guide (PhOD) Jeweller user manual in an Ajax app. Allows a user to disable events of the device without removing it from the system. Three options are available: No — the device operates in normal mode and transmits all events.

  • Page 51: Configuring The Motion Detection Area

    Lid only — notifications of the tamper triggering are disabled until the system is disarmed for the first time. Learn more Unpairs the device, disconnects it from the Delete device hub, and deletes its settings. Configuring the motion detection area The Motion detection area feature allows taking a test photo to check the camera’s field of view and the sensors’...
  • Page 52 . Otherwise, you will receive a message about a lack of permissions. Configuring the Photo on demand feature To take a test photo of the motion detection area, in an Ajax app: 1. Go to the Devices tab. 2. Select MotionCam Outdoor HighMount (PhOD) Jeweller from the list.
  • Page 53 Configuring the Photo on demand feature An admin or a user with access to privacy settings can enable and configure the Photos on demand feature. To do this, in an Ajax app: 1. Select a space. 2. Go to the Control tab.
  • Page 54 Users Installers Companies 7. Select a specific user, a PRO, or a company. A list of cameras, DVRs, and detectors supporting photo verification added to the space will open. 8. Select the device to which you want to provide access. 9.
  • Page 55 Enabling the Photo by scenario feature An admin or a user with access to privacy settings can enable and configure the Photo by scenario feature. To do this, in an Ajax app: 1. Select a space. 2. Go to the Control tab.
  • Page 56 An admin or PRO with system configuration rights can create and configure a scenario by alarm. To do this, in an Ajax app: 1. Select a space. 2. Go to the Devices tab. 3. Select a detector supporting photo verification from the device list.
  • Page 57 9. Tap Save. The scenario will appear in the list of device scenarios. Configuring the Photo by schedule feature An admin or PRO with system configuration rights can create and set up a scenario by schedule. To do this, in an Ajax app: 1. Select a space. 2. Go to the Devices tab.
  • Page 58 Note that only an admin can specify when the detector should take photos. 8. Tap Save. The scenario will appear in the list of device scenarios. Indication The MotionCam Outdoor HighMount (PhOD) Jeweller LED indicator can light up green or red, depending on the device’s state. 0:00 / 0:04 Indication upon pressing the power button Event...
  • Page 59 Event Indication Note The device is added to the Lights up green for about hub. 0.5 s. Flashes green six times for The device is deleted from 2 s, then flashes red three the hub. times rapidly after 0.5 s. Motion alarm.
  • Page 60 When the device detects a malfunction (for example, there is no connection via the Jeweller protocol), a malfunction counter is displayed in an Ajax app in the upper left corner of the device icon. All malfunctions can be seen in the device states .

  • Page 61: Maintenance

    The camera module is faulty. The device detects motion but cannot take photos. The device temperature is outside acceptable limits. The device lid is open (tamper is triggered). The masking sensor could not be adjusted. Magnetometer error. There is no connection with the hub or radio signal range extender via Jeweller.

  • Page 62: Technical Specifications

    How long Ajax devices operate on batteries, and what affects this Technical specifications All technical specifications Compliance with standards Setup in compliance with EN 50131 requirements Warranty The warranty for the products of the “Ajax Systems Manufacturing”...
