TDA-150
TREADMILL USER'S MANUAL
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TDA-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerMax TDA-150

Summary of Contents for PowerMax TDA-150

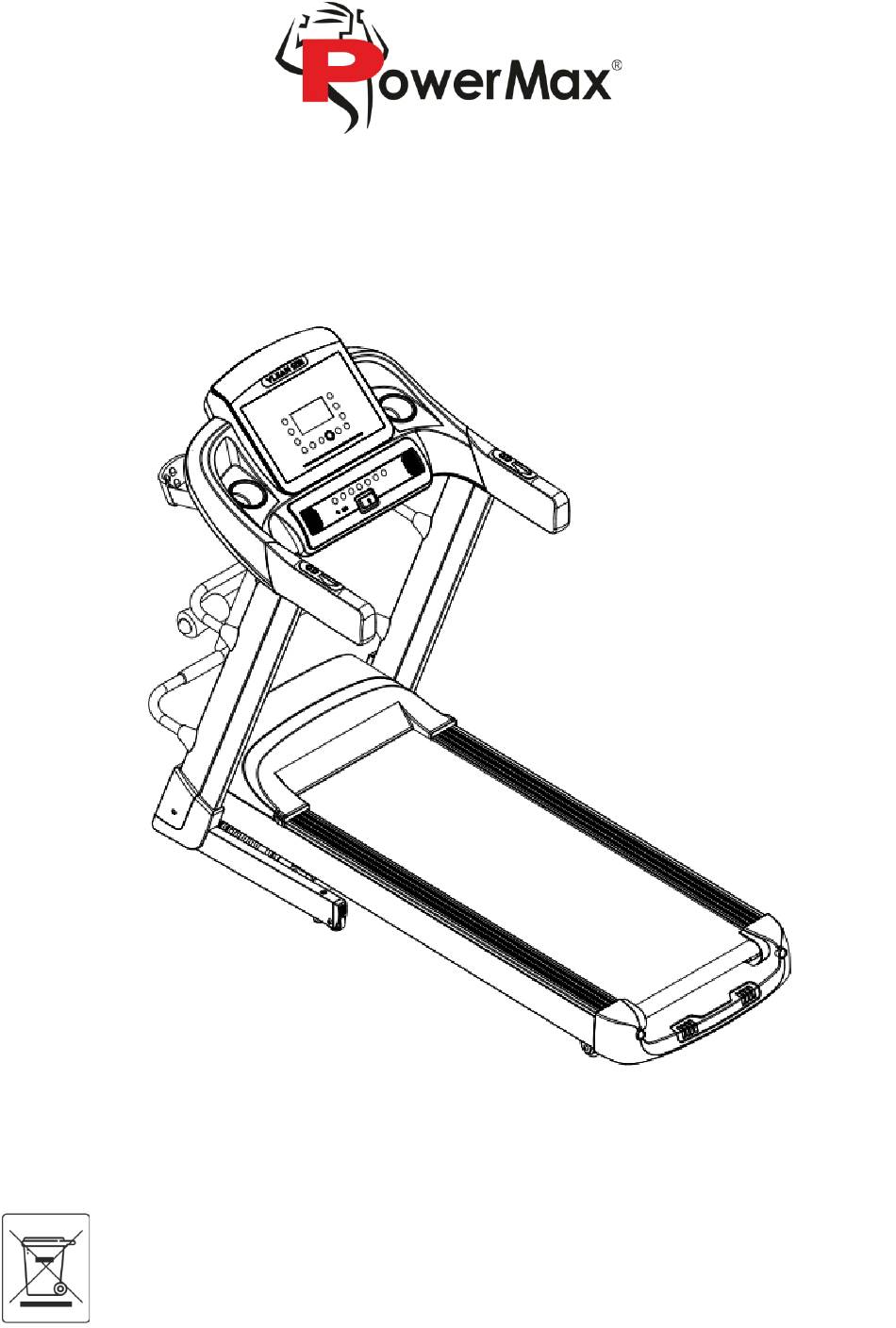

  • Page 1 TDA-150 TREADMILL USER’S MANUAL OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product.

  • Page 2: Table Of Contents

    TROUBLE SHOOTING GUIDE 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.

  • Page 3: Product Brief Introduction

    1. PRODUCT BRIEF INTRODUCTION Product Name: Motorized Treadmill Model Number: TDA-150 Electronic Safety Upright Run platform www.powermaxfitness.net...
  • Page 4 Technical Parameters Parameters Name Running Area 1260*450MM Max Allowable weight 120KG Expand Size 1830*770*1370MM Voltage/Frequency AC220V (50~60Hz) Speed 0.8-18.0KM/H Function Run /Audio/ /HR Parts number list Name Quantity Remark Multi-functional Screw Driver 5mm/6mm Wrench 6 mm Internal Hexagonal Screw M8*16 6 mm Internal Hexagonal Screw M8*45 Flat washer M8 Nut...

  • Page 5: Security Considerations

    2. SECURITY NOTICE AND WARNINGS Notice: Please carefully read the instruction book before using and notice the following safety matters. ♦ Treadmill is suitable to be placed in the room so as to avoid dampness. It can’t be splashed by water and can’t prevent any foreign materials. ♦...

  • Page 6: Warnings, Bans

    ♦ This treadmill can only be used in the 20 amperes circuit. ♦ When the machine boots up, only one person is allowed to exercise on it. ♦ During the exercise, if you feel dizzy, chest pain, nausea or shortness of breath, please stop exercising immediately and consult your corresponding fitness trainer or doctor.
  • Page 7 ♦ When use, load or take out the product, or make it move, please confirm whether there are people or pets around (back, bottom, front of product) Bans! ♦ Don’t use when the shell cracks and falls apart (inner structure is exposed) or welding parts fall off.

  • Page 8: Installation Steps

    ♦ Don’t pull out or insert power plug with wet hand. ----Otherwise, it may cause electric shock or injuries. ♦ Pull out power plug! ♦ when not use, pull out the plug from plug base. ----Otherwise, dust and dampness will make insulation degrade, and then leakage of electricity and fire will be caused.
  • Page 9 Step 2 Hand Grips Screw in the hand grips on both sides with M8*16 screw and washer separately by making them pass through handgrip hole and connect with the upright frame. Step 3 Column Edge Strips 1. Insert the 8 clips into the column edge strips and then attach the edge strip to the frame by pushing it into position.
  • Page 10 Step 6 Insert Safety Tether Insert the safety tether provided into the yellow mark tether hole on the console below the display. The treadmill is now ready for use. Step 7 up and down U-shaped tube (only for multifunction) First place the rubber protection sleeve at each side of U-shaped tube, assembly 2 ends of U-shaped tube to iron plate of left and right stand column with M8*40 screws, lock with nuts (special attention, the middle...

  • Page 11: Exercise Advices And Policy

    4. EXERCISE ADVICES AND POLICY Warm-up Take warm-up exercise for 5 to 10 minutes before using this machine each time. Breathing When exercising, you can’t hold your breath, usually inhale with nose when intending to release actions, and exhale with mouth. Inhaling should be coordinated with exhaling. If breathing too fast, you should stop exercising immediately.
  • Page 12 1. Stretching downward Slightly bend knees, and slowly bend the body down. Relax back and shoulders, touch the legs and toes as close as possible with hands, keep for 10~15 seconds and then relax. Repeat for three times. (see picture 1) 2.

  • Page 13: Product Instruction

    5. PRODUCT INSTRUCTION 1. CONSOLE 2. SPEED: Rang 0.8-18.0KM/H. The LCD will show numbers 3,2,1, then, Starting treadmill. The setting and data show in LCD display during fat measurement. 3. TIME: A. Manual Model: Setting time 0-100 minutes or ‘end’ shows in LCD display, the speed of treadmill will be slow stably and standby time after 5 minutes.
  • Page 14 E. Pulse value: When you running and catch the handrail, the system will be auto-checking your pulse value. The reference pulse value:50-200 time/min. F. INC Incline way range: It is adjustment 0-18% incline. 2. KEY FUNCTION ‘SELECT’ KEY: Manual Model: 0:00 Count down Time model: 15:00 MIN: SECONCDS.
  • Page 15 to the treadmill, while the safety lock is correctly reinstalled, the treadmill will enter into the standby mode again, and wait for inputting the command. Before making the exercise, you should firstly inspect that whether the treadmill has been loaded the power supply, and then check whether the safety lock is effective.

  • Page 16: Product Maintenance

    7. ATTACHMENT： P1-P12 PROGRAM SPORTS DIAGRAM 7. PRODUCT MAINTENANCE Lubricating The running belt must be lubricated with specially configured methyl silicone oil after used for a period of time. www.powermaxfitness.net...
  • Page 17 1. Advice: When use time a week is less than 3 hours, it should be lubricated once in five months. When use time a week is between 4-7 hours, it should be lubricated once in two months. When use time a week is more than 7 hours, it should be lubricated once in one month. It can’t be over-lubricated.
  • Page 18 4. Running belt deviation adjustment All treadmills’ belts should be adjusted before leaving the factory and after the installation, however, after it is used for a period, it may occur belt deviation, which is caused by the following reasons: 1. The main engine is not placed evenly. 2.

  • Page 19: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Fault Code Main reason Solution 1. Check the connection wire between computer and control board was well The wire from computer to connected. bottom control board didn’t 2. Make sure the IC on the control board was connected well well inserted.
