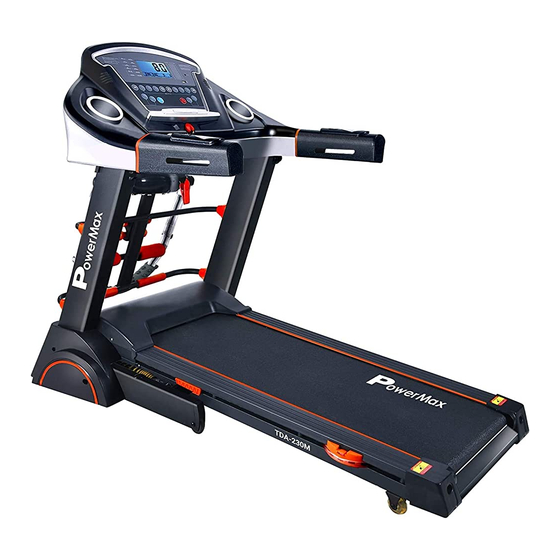

- Page 1 TDA-230M TREADMILL USER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product.
-
Page 2: Table Of Contents
FREQUENTLY ASKED QUESTIONS 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. -
Page 3: Product Configuration
The manual content had revised before print, as we constantly improve the product, so we reserve the right to modify the product specifications, characteristics without prior notice. ONE PRODUCT CONFIGURATION Product Name: Motorized Treadmill Model Number: TDA-230M Electronic console Safety... -
Page 4: Security Attention Items
Parts number list 6 mm Internal Hexagonal Nut M8*50 Up Horizontal Pipe 6 mm Internal Hexagonal Nut M8*35 U Pipe Fix 6 mm Internal Hexagonal Nut sM8*55 Upright fixed U shaped Pipe Cap Handrail Cap Multi-functional Screw Driver Si-oil 30ml 8*65 Functional Holder 6 mm Internal Hexagonal Nut M8*20 Left/Right Cap... - Page 5 • After using, please switch off the machine power. • When exercising, please clip the security lock cable to the clothes, so the machine will safely shut down when emergency occurs. If you feel uncomfortable or something abnormal in the using process, please stop •...
- Page 6 (6) People who are using artificial pacemaker to implant medical electrical instruments into the body. (7) People who have malignance. (8) People who suffer disturbance of blood circulation like thrombosis or serious dynamic fatty tumor, acute still fatty tumor etc., or all kinds of skin infections. (9) People who have perceived barriers caused by highly peripheral circulation obstacles that are caused by diabetes, etc.
- Page 7 ----Otherwise, it may cause leakage of electricity or fire. Don’t use it when the power line or power plug is damaged or the plug base loosens. • ----Otherwise, it may cause fire or electric shock. It can’t be simultaneously used by two people or more than two people. During use, •...
-
Page 8: Installing Steps
This product is installed with equipment grounding conductor and power of ground plug. The plug must be inserted into the proper plug base that have been right installed and grounded according to the local laws or regulations. Danger! If equipment grounding conductor is connected improperly, it may cause the danger of electric shock. - Page 9 Step 3. (only for multifunction) up and down U-shaped tube first place the rubber protection sleeve at each side of U-shaped tube, assembly 2 ends of U-shaped tube to iron plate of left and right stand column with M8*40 screws, lock with nuts (special attention, the middle screw hole of U-shaped tube point to the bevelled-up direction- tube should not trap the L iron.
-
Page 10: Operation And Setup
Step 6. (only for six level shock Absorption system) Remove safety fixed button, use Allen wrench remove two bolts on the button. Step 7. (only for six level shock Absorption system) Install rubber decoration cover put the rubber decoration cover to the Threaded hole based on step FOUR OPERATION AND SETUP www.powermaxfitness.net... - Page 11 1. CONSOLE 2. SPEED: Rang 1.0-14.0KM/H. The LCD will show numbers 3,2,1, then, Starting treadmill. The setting and data show in LCD display during fat measurement. 3. TIME: Manual Model: Setting time 0-100 minutes or ‘end’ shows in LCD display, the speed of treadmill will be slow stably and standby time after 5 minutes.
- Page 12 seconds before the running belt starts moving. The running belt starts moving with an initial speed of 1.0 KPH. You may press the SPEED+/SPEED- button on the computer console to increase or decrease the running speed during exercise. Distance starts counting down from pre-set target distance to 0.0.
- Page 13 ‘STOP’ KEY: Pressing it later. STOP treadmill running. SPEED: ‘+’ this sign to be increase the speed. ‘-’ this sign to be decrease the speed. If you press it over o.5 continues + or - sign, the speed will be automatic increasing or decreasing. SPEED 2,6,10,14 No.
- Page 14 Bluetooth App: Download Bluetooth app HK-Treadmill, from Google Play for Android OS system, from App Store for Apple IOS system, then customers can control treadmill START, STOP, SPEED or INCLINE by mobile phone. 6. Safety In any circumstances, remove the safety switch, the system is down and sends alarm sound (all the windows show “-”).
-
Page 15: Exercise Advices And Policy
FIVE EXERCISE ADVICES AND POLICY Warm-up Take warm-up exercise for 5 to 10 minutes before using this machine each time. Breathing When exercising, you can’t hold your breath, usually inhale with nose when intending to release actions, and exhale with mouth. Inhaling should be coordinated with exhaling. If breathing too fast, you should stop exercising immediately. - Page 16 1. Stretching downward Slightly bend knees, and slowly bend the body down. Relax back and shoulders, touch the legs and toes as close as possible with hands, keep for 10~15 seconds and then relax. Repeat for three times. (see picture 1) 2.
-
Page 17: Maintenance
SIX MAINTENANCE Lubricating The running belt must be lubricated with specially configured methyl silicone oil after used for a period of time. 1. Advice: When use time a week is less than 3 hours, it should be lubricated once in five months. When use time a week is between 4-7 hours, it should be lubricated once in two months. - Page 18 4. Running belt deviation adjustment All treadmills’ belts should be adjusted before leaving the factory and after the installation, however, after it is used for a period, it may occur belt deviation, which is caused by the following reasons: 1. The main engine is not placed evenly. 2.
-
Page 19: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Fault Code Main reason Solution 1． Check the connection wire between The wire from computer to computer and control board was well bottom control board didn’t connected. connected well 2． Make sure the IC on the control board was well inserted.
