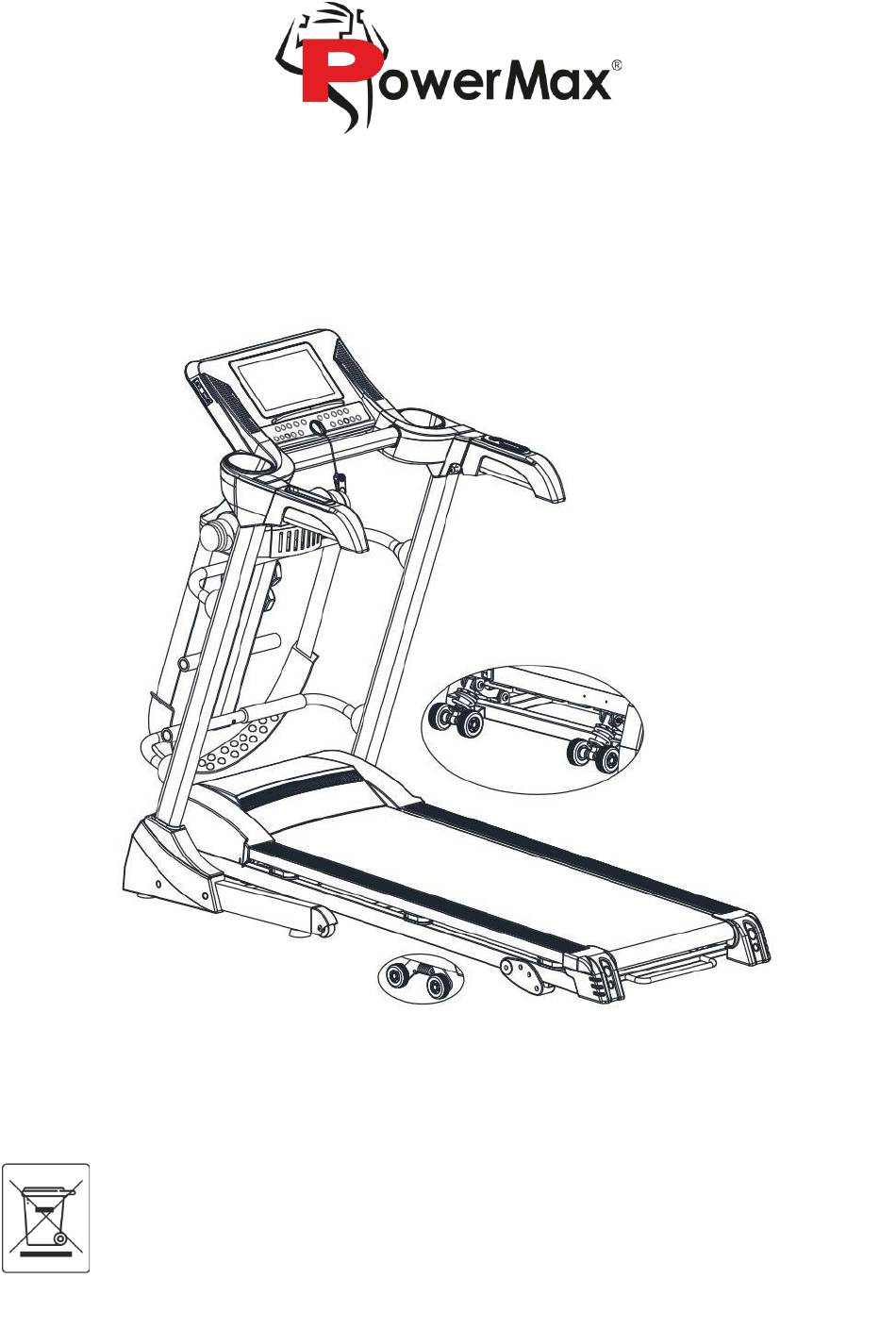

TDM-100S
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.
Advertisement
Related Manuals for PowerMax TDM-100S
Summary of Contents for PowerMax TDM-100S
- Page 1 TDM-100S Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.
- Page 2 ROUTINE MAINTENANCE AND INSTRUCTIONS 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.
- Page 3 1. PRODUCT BRIEF A. Single Function Home Use Treadmill： CONSOLE UPRIGHT CLUMN RUNNING BELT SIDE RAIL ENDCAPS Main Parameters and Parts List Main Technical Parameters Parameters Names Description Input power voltage AC220-240V(50-60Hz) Speed 0.8-14.8km/h Running surface 1150*420 mm Max user weight 110kg Functions (Option) Running (disc plate, sit up, dumbbell and massage)
- Page 4 Packing list Name Units Complete machine Sit up/dumbbells/massager Accessory Bag Massager support tube Massager U tube Screws bag list Name Name Inner Hexagon spanner 6mm Audio cable Inner Hexagon spanner 5mm Safety key Open spanner 13-15 ScrewM8*45 screwdriver Screw M8*22 Silicone oil Screw M8 manual...
- Page 5 Keep machine away from dust to avoid strong static. ◆ Please cut the electric power off after using. ◆ Please maintain good ventilation when running. ◆ Please clamp security lock cable on your clothing to make sure the machine stops at ◆...
- Page 6 ----May cause accident or injury. Don’t use when the power plug is on the needle, garbage, or water. ◆ ----May cause electric shock, short circuit, or fire. Do not use with wet hands! when not in use, pull out the power plug from the socket. ----The dust and moisture can age the insulation, and result in leakage fire.
- Page 7 3. INSTALLATION INSTRUCTIONS When installing, simple fix all screws first, then tighten screws when the installation of frame is done. 1. Put the machine flat on the ground. And lift the upright columns and console as bellow: 2. Use 5# hexagon wrench to fix the upright column on base frame with screw M8*45(A), washer and nut, meantime fix screw M8*22(B) on base frame.
- Page 8 M5*14 5. Keep the safety key on the position as follow: NOTE: please confirm that all screws are locked uniformly according to the requirements after installation, and check no part is left out before plugging electricity. * According to the physical, three levels for choose as below: picture：1 picture：2 picture：3...
- Page 9 2. Use combination wrench and 5# inner hexagon spanner to untighten the screws and remove the manual incline module. Keep the manual incline modules in places where children cannot reach 3. Take out the moving wheel modules from the accessory bag, cut the ties and assemble it as shown in picture 1, and then tighten it with screws.
- Page 10 2) Please keep the safety key away from children when the treadmill is not in use. Please put the silicon oil in places where children cannot reach. If it is eaten or split into eyes by mistake, please use water to wash and consult doctor immediately. 3) Safety key Introduction The treadmill can only start when the safety key is put on the yellow area of the console.
- Page 11 Start-up ⚫ Normally start after 5 seconds of the countdown. Programming number ⚫ 3 modes, 12 automatic programs, 1 FAT program. Safety lock function ⚫ Disconnect the security lock. "E7" shows on the screen, treadmill stops immediately, and a Di alarm sound is let out.
- Page 12 LCD function: Speed display. • Display the current running speed value. Time display • Display the time of manual mode and the countdown time under automatic modes and programs. Distance display • Display cumulative distance under manual mode and programs. Display the distance countdown in automatic mode.
- Page 13 SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED Modes’ Parameter Setting ⚫ Set the initial time countdown to 30:00 minutes, the setting range is 5:00-----99:00 minutes, step by 1:00. The initial setting of calorie countdown is 50 kcal, the setting range is 20 --- 990 kcal, step by 10.
- Page 14 ≤19 Under weight = (20---25) Normal weight = (25---29) Over weight ≥30 Obesity Error Code Meaning Fault code Failure Description fault handling Communication Possible Cause: Abnormal: when the the communication between the lower controller and power on, the connection console is blocked, check each joint between the between lower controller controller and console, ensure that each terminal is and the console is...
- Page 15 Check if the motor cable between the motor and lower controller is connected well, to make sure these connect well. No safety key Put the safety key on the right place. ROUTINE MAINTENANCE AND INSTRUCTIONS Warning: Before cleaning or maintaining products, please be sure the power plug of the treadmill is pulled out.
- Page 16 Running with Adjusted Alignment and Tightness In order to better use the treadmill and make the treadmill functions work better, it is necessary for you to adjust the running belt into the best condition. Running Belt alignment Put electric treadmill flat on the ground. ⚫...
- Page 17 C. If you observe that the instantaneous step makes the treadmill belt and multi-wedge belt stop, but the motor is still running, it indicates that the multi-wedge belt is loose and appropriate adjustments must be made to facilitate the safe use Step 2: Use a wrench to adjust the screws on the motor base according the condition.
