TDA-125
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDA-125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerMax TDA-125

Summary of Contents for PowerMax TDA-125

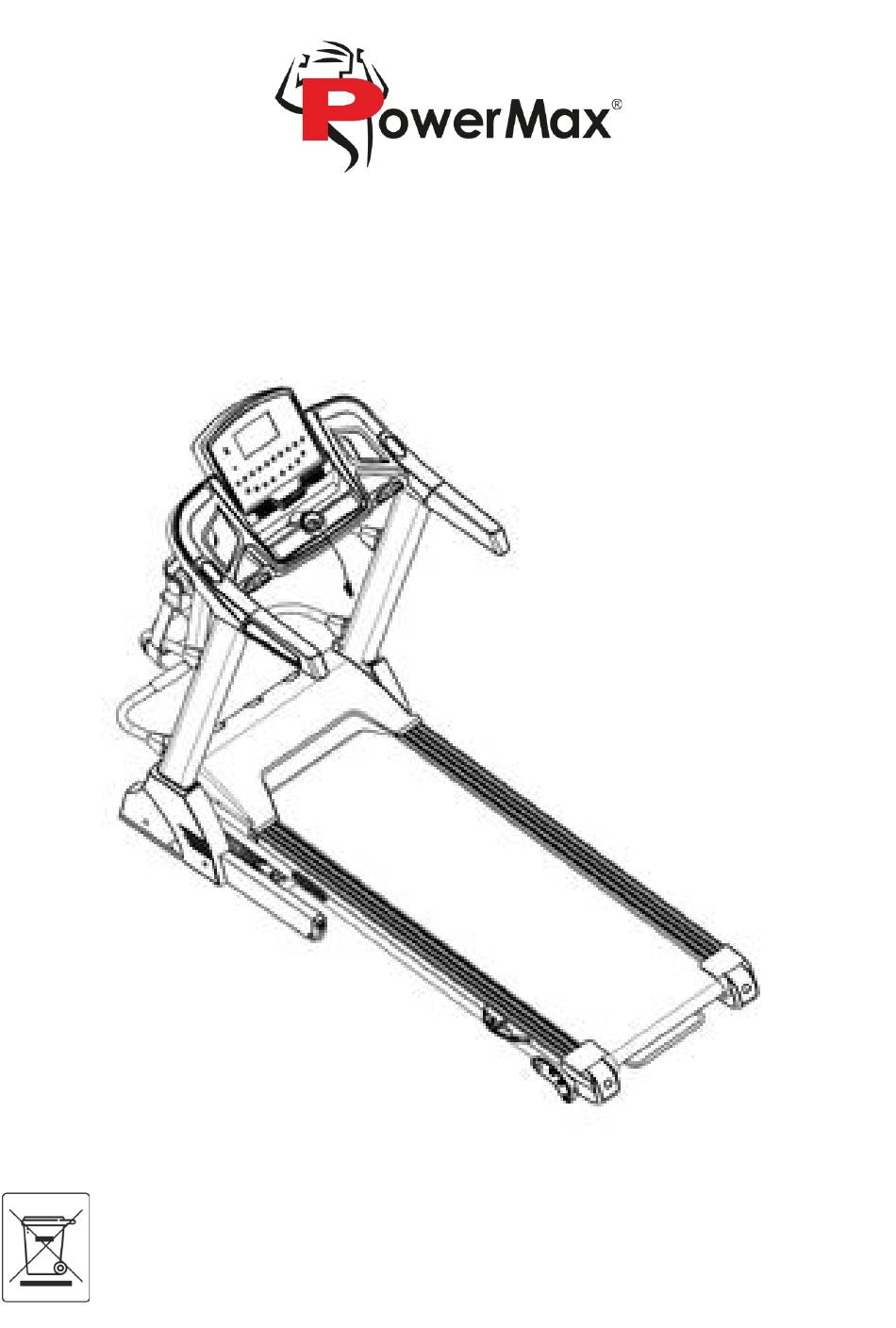

  • Page 1 TDA-125 Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.

  • Page 2: Table Of Contents

    TROUBLESHOOTING GUIDE 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.

  • Page 3: Product Brief Introduction

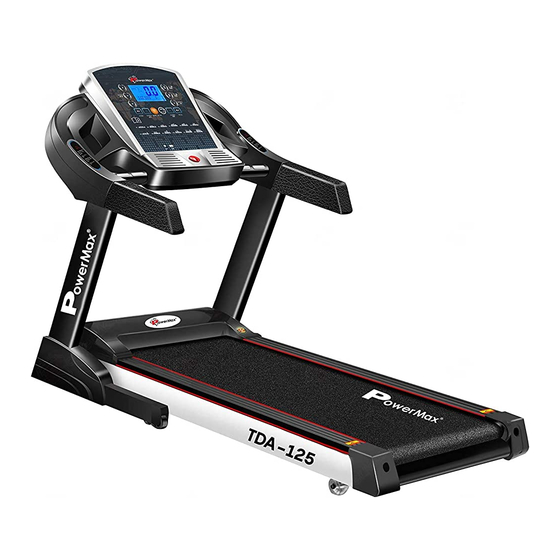

    1. PRODUCT BRIEF INTRODUCTION Product Name: Motorized Treadmill Model Number: TDA-125 Electronic Safety Upright Run platform www.powermaxfitness.net...

  • Page 4: Parts List

    Technical Parameters Parameters Name Description Running Area 1260*420(MM) Max Allowable weight 115KG Expand Size 1550*710*1260 Voltage/Frequency AC220V 50/60HZ Speed 0.8-14KM/H Function Run /Audio/ /HR Parts Number List Item 6 mm Internal Hexagonal Screw M8×20 Upright fixed, computer fixed 6 mm Internal Hexagonal Screw M8*45 Upright fixed 6 mm Internal Hexagonal Screw M8*40 U tube fixed...

  • Page 5: Security Considerations And Warnings

    2. SECURITY CONSIDERATIONS AND WARNINGS Attentions: Please read manual carefully before use, and pay attention to security considerations followings, Treadmill should be placed suitable position in interior, avoiding damp, could not be splashed by water-drop, could not be put on any other objects. Before exercise, please put on suitable sport suits, sport shoes.
  • Page 6 • The treadmill is only for one person to use when it was started • If you feel dizziness, pectoralgia, stomach-turning or tachypnoea, please stop right now and respectively consult your gymnasium coach or doctor. WARNINGS! FORCING! One on treating or following patient makes sure to talk over with professional doctor, and then ◆...
  • Page 7 FORBIDDEN!! • Don’t use it in state of outer shell rupture, cracking, fallen off, or the welding fallen off ----Or else it will probably come out accident or hurt • Don’t jump out or in the treadmill when running ----Or else it will probably hurt as falling down •...
  • Page 8 • Don’t use when feel thick-skulled after being drunk ----it will probably come out accident or hurt • Don’t use when the pockets of pants put in tough objects ----it will probably come out accident or hurt • Don’t make the power plug attach needle, water, or rubbish ----Or else it will probably result in electric shock, short circuit, fire •...

  • Page 9: Installation

    3. INSTALLATION When installing, first simply fix all the screws, and then tighten up after the shelf has been installed. Step1 Upright: 1.Uplift part of the upright and electronic watch dial, use one M8*45 screw respectively on both sides of the treadmill to pass through the below connection hole, add the shims and tighten up the screws.
  • Page 10 Step 4 (only for multifunction) Functional frame Use two M8*65 screws to fix the functional frame on the top and bottom U tube. Step 5 (only for multifunction) Massage First, screw off the three M8*16 screws below the massage machine head, (include flat washers and spring washers), and then place the massage machine head on the functional frame, and tighten up with the above unloaded screws.

  • Page 11: Sport Suggestions And Guiding Principle

    4. SPORT SUGGESTIONS AND GUIDING PRINCIPLE Warm-up Every time you need to do warming-up in 5 to 10 minutes before use this treadmill Breath You could not hold the breath when running, usually you prepare to do/undo action breathing by nose, exhale emphatically by mouth, breath should be harmonious with actions If you are in tachypnoea, you should stop sporting promptly Frequency...
  • Page 12 1. Downward Stretch The body bends forward slowly so that the back and Shoulders relaxed, hands to touch the toes as far as possible. Maintain 10 to 15 seconds, and then relax. Repeated 3 times (see Figure 1). 2. Crus Sinew Stretch Put one leg straight, the other leg inward to keep Straight the inside.

  • Page 13: Brief Usages Instructions

    5. BRIEF USAGE INSTRUCTION 1. CONSOLE 2. SPEED: Rang 0.8-14.0KM/H. The LCD will show numbers 3,2,1, then, Starting treadmill. The setting and data shows in LCD display during fat measurement. 3. TIME: A. Manual Model: Setting time 0-100 minutes or ‘end’ shows in LCD display, the speed of treadmill will be slow stably and standby time after 5 minutes.
  • Page 14 2. KEY FUNCTION. ‘SELECT’ KEY: Manual Model: 0:00 Count down Time model: 15:00 MIN: SECONCDS. Count down distance model: 1.00 KM Calories: 50.0 Inner Procedure: P01-P12. ‘START’ KEY: Starting the treadmill as long as power on and safe key grip compete. ‘STOP’...
  • Page 15 to the treadmill, while the safety lock is correctly reinstalled, the treadmill will enter into the standby mode again, and wait for inputting the command. Before making the exercise, you should firstly inspect that whether the treadmill has been loaded the power supply, and then check whether the safety lock is effective.
  • Page 16 8. Attachment： P1-P12Program Sports Diagram www.powermaxfitness.net...

  • Page 17: Product Maintenance

    6. PRODUCT MAINTENANCE Lubricating The running belt must be lubricated with specially configured methyl silicone oil after used for a period of time. 1. Advice: When use time a week is less than 3 hours, it should be lubricated once in five months. When use time a week is between 4-7 hours, it should be lubricated once in two months.
  • Page 18 3. Running belt tension adjustment All treadmills’ belts should be adjusted before leaving the factory and after the installation, however, after it is used for a period, looseness may occur. For example: when users are running, it may occur pause and slip, if which happens, adjust the belt and bolts synchronously from both the left and right side in a clockwise direction and with semicircle as the unit;...

  • Page 19: Troubleshooting Guide

    All the treadmills’ driving belts are adjusted before leaving the factory, but after using for a period, it may still occur slip, which is mainly adjusted by users. Adjustment steps (see the picture): Clockwise rotate adjustment screw with spanner. • Adjustment scope is subject to no slip when loading.
