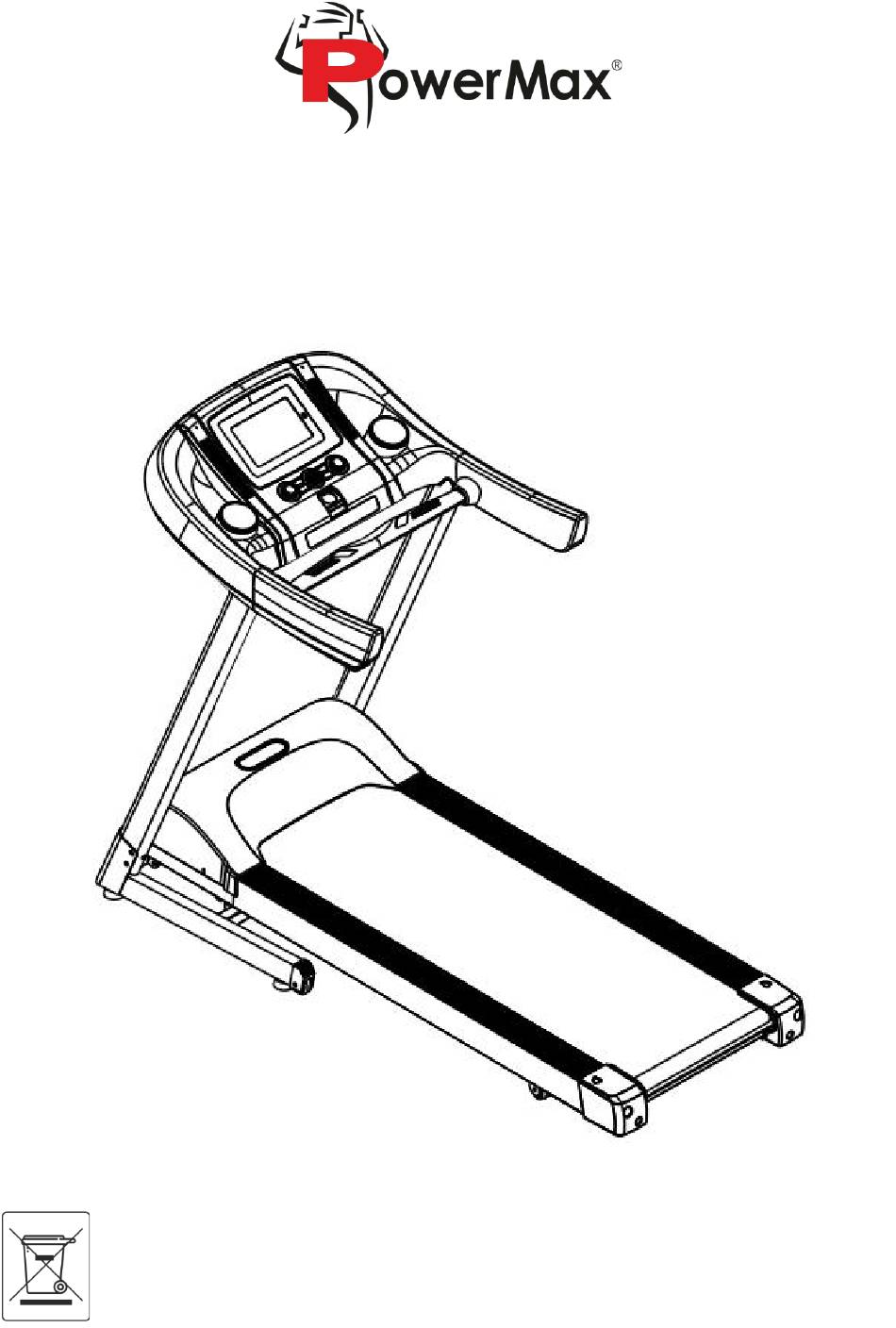

TDA-100
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDA-100 and is the answer not in the manual?

Questions and answers

Related Manuals for PowerMax TDA-100

Summary of Contents for PowerMax TDA-100

  • Page 1 TDA-100 Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.

  • Page 2: Table Of Contents

    APPLICATION USING INSTRUCTION 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.

  • Page 3: Product Brief

    1. PRODUCT BRIEF Single function home use treadmill www.powermaxfitness.net...
  • Page 4 Main parameters and parts list Main technical parameters Parameters Names Description Input power voltage AC220V(50~60Hz) Speed 0.8-14.8 Km/h Running surface 1230*430 mm Expand dimensions 1620*700*1200mm Functions (Option) Running, (Sit up, Dumbbell, Massager) Packing List Name Units Complete machine Sit up/dumbbells/massager (Option) Accessory Bag Frame of Multi-function (Option) Frame pipe of Massager (Option)

  • Page 5: Exploded View

    EXPLODED VIEW www.powermaxfitness.net...

  • Page 6: Security Precautions And Warning

    2. SECURITY PRECAUTIONS AND WARNING Tips: Before folding the treadmill, make sure that the gradient is "zero". Note: Please read the instructions carefully before use. ◆ Indoor using and storing the treadmill, avoid dampness, and can not be spilled by water. ◆...
  • Page 7 ---- Or it may be an accident or injury due to falls. ◆ People who can’t express their consciousness or can’t operate the machine by themselves cannot use the treadmill. ----May occur accident or injury. ◆ Avoid drinking water or pouring water when operation. ---- May cause electric shock and fire.

  • Page 8: Installation Instructions

    ◆ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 9 3. Hold left& right columns, use 6# inner hexagon wrench to lock the console frame on the columns with screw M8*25. Screw M8*25 4. Put safety key on the right position to make sure the treadmill starts normally. Note: Safety key is in red colour.

  • Page 10: Using Instructions

    4. USING INSTRUCTIONS Using treadmill 1) Insert the power plug properly and turn on the switch (in red colour) When the light is on, there will be a sound of “Di”, and then the screen will be light up (Systems with TFT screen takes more time to enter the start interface). 2) Please keep the safety key away from children when the treadmill is not in use.
  • Page 11 5) Console Instructions Start-up Normally start after 5 seconds of countdown. Amount of programs 3 manual programs, 12 automatic programs, 1 FAT program. Safety lock function Disconnect the security lock, "E7" shows on the screen. The treadmill stops immediately, and a Di alarm sound is let out.
  • Page 12 Incline +- key: Can be used to set values of parameters and incline. The incline value increase or decrease by one level in each pressing, and if press for more than 2 seconds, the incline can change continuously. DISPLAY FUNCTION Speed Display Display the current running speed value.
  • Page 13 Distance Display Display cumulative distance under manual mode and programs. Display the distance countdown in automatic mode. Calorie Display Display cumulative calorie under manual mode and programs. Display the calorie countdown in automatic mode. Incline Display Display the current running incline value. Heart rate display Heart rate signal will be detected, and the heart-shaped mark flashes while testing Heart rate measure function...
  • Page 14 Code Meaning of Error Messages Fault code Failure Description Fault handling Communication Abnormal: Check the cable connection between the console and when the power is on, the the control border to ensure that each core is fully connection between lower plugged in.

  • Page 15: Routine Maintenance

    5. ROUTINE MAINTENANCE Warning: Before cleaning or maintaining products, please be sure the power plug of the treadmill is pulled out. Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill. Remove dust periodically in order to keep the parts clean. Be sure to clean running belt with both sides of the exposed portion, which will reduce the accumulation of impurities.
  • Page 16 picture A picture B Multi-wedge Belt Tension Adjusting When you use the treadmill for a long time, the multi-wedge belt becomes loose because of the abrasion, then you have to do some appropriate adjustment to facilitate the safe use. Judgment: the feeling of running with the occasional pause phenomenon, which indicating that the treadmill belt or multi-wedge belt are a little loose and further affirmation need to be made.

  • Page 17: Applying Silicone Oil

    APPLYING SILICONE OIL Step 1: Start the treadmill and make it run at a low speed (0.8 km/h ). Step 2: Cut the top of the silicone oil bottle (picture 1) Step 3: Find the teardrop-shaped cover on left & right endcaps (picture 2) Step 4: Open the teardrop-shaped cover (picture 3) Step 5: Drop silicon oil into oil guiding (Note: 1/4 of the bottle) (picture 4) Step 6: After applying the silicon oil, adjust the speed to 4-5 km/h, and run on it to make sure...
