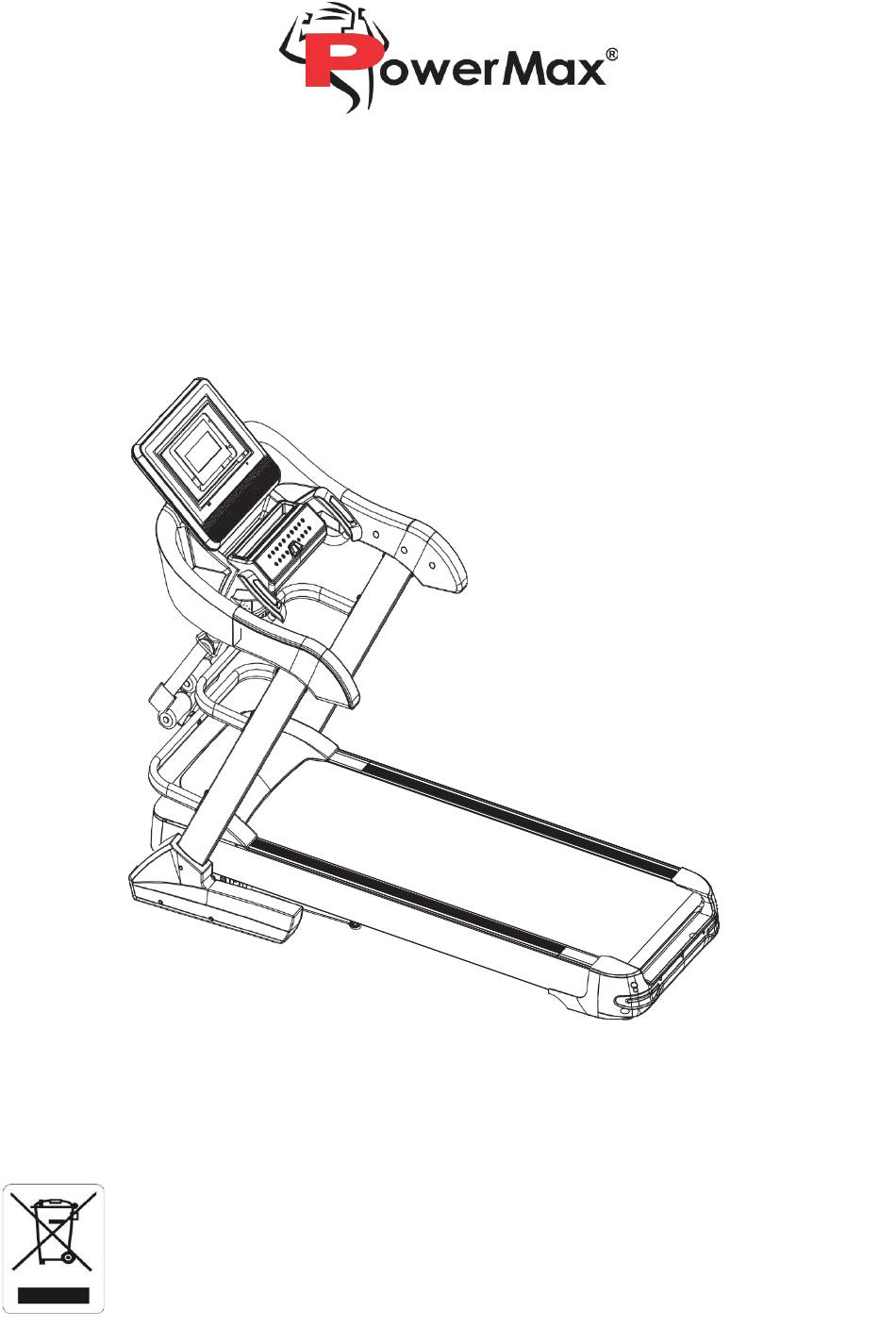

TDA-595
Multifunction Motorized Treadmill
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference. The specifications of this product may vary from
this photo, subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDA-595 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerMax TDA-595

Summary of Contents for PowerMax TDA-595

  • Page 1 TDA-595 Multifunction Motorized Treadmill OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.

  • Page 2: Table Of Contents

    XV. Stretching Exercise 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax...

  • Page 3: Warranty

    Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. This warranty does not include any damage caused by improper operation, misuse or commercial application. From the date of purchase, the frame is warranted to be free from defects for 1(one) year*.

  • Page 4: Safety Instruction

    Please contact with our customer service personnel to buy accessories beyond scope of warranty and provide the information below when ordering: Instruction. • • Model of treadmill. • Serial number of accessories. • Proof of date of purchase. Please don’t send the product to our company before our customer service personnel confirm. We refuse to bear any expenses if you send back the product without permission.

  • Page 5: Special Safety Instruction

    9. Don’t touch any moving parts with hands or place hands or feet in gap beneath the running belt. 10. This product can only be used by one person when running. 11. Ensure that screws and bolts are tightened after assembly of the product. 12.
  • Page 6 www.powermaxfitness.net...
  • Page 7 www.powermaxfitness.net...

  • Page 8: Explosion Diagram

    VI. Explosion Diagram All accessories are here and displayed in the list below. www.powermaxfitness.net...

  • Page 9: List Of Explosion Diagram

    VII. List of Explosion Diagram Serial Serial Name Qty. Name Qty. Pedestal Half-round head hexagon socket head cap screw Column M10*40 Electronic meter stand Half-round head hexagon Ascension frame socket head cap screw Main frame M10*25 Motor support Half-round head hexagon Support of massager socket head cap screw Supine support...
  • Page 10 Top shell of electronic meter Cross recessed pan head self- tapping screw ST4 2*35 Panel of electronic meter Lower cover of electronic Cross recessed pan head self- drilling screw ST4 2*15 meter Cross recessed pan head self- Iron horn cover drilling screw ST4 2*25 Console side cover M4 Flat gasket...

  • Page 11: Steps Of Assembly

    VIII. Steps of Assembly Step 1: Installation of complete machine 1. Hold the electronic meter and slowly lift it to fixed screw hole. 2. Fix electronic meter onto column with85# screw and 105# fixed at gasket. 3. Fix column onto pedestal with 85# screw, 91 #screw and 105# fixed at gasket. Then remove package stator (red) fixing the frame and pedestal, and prevent the frame from hurting people when bouncing off.
  • Page 12 Step 3: Assembly of multifunction supports 1. Take out support of massager pay attention to (R) indication of (L) gasket, and fix support of massager onto left and right stand pipes with 66# screw and 78# fixed at gasket. 2. Take out supine support, and fix it onto support of massager with 69# screw, 78# fixed at gasket and 81# nylon nut.
  • Page 13 Step 4: Assembly of other components 1. Install dumbbell onto groove on supine support in the figure. 2. The body twister can be placed at any stable position by the user. 3. Safety lock is placed at yellow position on electrometer. 4.
  • Page 14 www.powermaxfitness.net...

  • Page 15: Operating Instruction

    X. Operating Instruction: Power socket with ground line must be used for your safety when you use the treadmill. 1. Insert power plug into socket and turn on power switch a (light turns red). You will hear “beep” and window on instrument panel displays. 2.
  • Page 16 Instructions of massager and other functions: Power socket with ground line must be used for your safety when you use the massager. 1. Please don’t fold main frame A when using the massager to avoid tilting forward during massage. 2. You can lie on the main frame A to do sit-ups according to personal requirements. Description of movement of treadmill: 1.
  • Page 17 Fold the treadmill Lower the running platform Gently tread the gas spring casing as shown Folding the treadmill can save space. in the figure, the running platform will slowly Turn off the power switch and pull. out the fall to the ground. power plug before folding.

  • Page 18: Operating Instruction Of Instrument

    XI. Operating Instruction of Instrument I. Face map 7” LCD blue screen window 10.1” colour touch screen window 15.6” colour touch screen window 1. USB interface: after operation, the system plays songs or video in the USB storage. 2. MP3 interface: insert MP3 audio, the speaker can play MP3 music. 3.
  • Page 19 8. Speed range shortcuts: speed range:1.0-20.8km/h adjustment range is 0.1km/time, and when continuously pressed for more than 0.5 seconds, the machine automatic continuous increase/decrease. 9. Home button: return directly to the main interface from any sub-interface 10. Start button: the treadmill can be start at any time by pressing this button with the power on and the safety lock engaged.
  • Page 20 slope as needed, which can consume more calories, but the larger slope, not suitable for long running. 6. Heart rate monitoring while running Please don't get down from the treadmill immediately after running. When running, the body's blood is mainly concentrated in the lower limbs.
  • Page 21 Icon Function instruction Icon Function instruction Time display: convenient for sports Adjustable volume: mainly for 13:04 people to view time music and video playback Return button: can return to the Home button: can be returned previous interface (except the main from any interface to the main interface) interface (except the main interface)
  • Page 22 Press weather forecast icon to manually adjust the time and date parameters. Support users to manually correct current time and date  Current time and date can update when connect with internet  2. Local audio and video Used to manage audio and video files in the system and in the external U disk: ...
  • Page 23 How to play audio and video stored in USB Insert the USB storage device into the USB interface and play the audio and video files through operations. 2.1 Music interface Press music icon, enter into music interface. Swipe up and down to browse for the song name in the list on the left. Press song file to start play.
  • Page 24 Green indicates the the song are Song1 singing now White indicates the song to be selected Start playing music Play music according to the song list Stop play music Random play of the song list Play the previous Loop Move the bar to the left or right to Play the next change the progress of the music.
  • Page 25 Start to play video Stop play music Move the bar to the left or right to change the progress of the video. 2. Internet Build in third part APP  To connect to the WIFI network before use.  Please try not to browse webpage or watch the video while running, which is easy to distract and cause accidental injury;...
  • Page 26 4.1 In the main interface, click to enter the WIFI interface: 5. Cleaning 5.1 Click in the main interface to clean up the cache and memory of the machine. 6. Sports center Built-in time countdown, calorie countdown, distance countdown, step countdown, work out, heart pulse control, runway mode, real view run, custom mode.
  • Page 27 In the main interface interface, click " " to enter the sports center management interface: The user can select the exercise mode according to his or her own sports goal; Control directory step Work heart runway time calorie distance pulse countdow countdow countdow...
  • Page 28 One lap of the runway is 400 meters. When the icon is rotated one turn, the number  of completed laps is automatically counted as 1, and so on. Not counting after a full circle.  Treadmill parameter adjustment: 6.2.1 Click on any area of the screen to pop up the operating window to controls the treadmill; www.powermaxfitness.net...
  • Page 29 Click the “ “ floating button, the treadmill will appear two restarts and stops for the user to select; No operation in three seconds, this floating window is automatically closed.  Start of runway mode: 1. Adjust the movement parameters required for the treadmill by sliding up and down. Press the start button, the treadmill will automatically start after “3, 2, 1, GO”.
  • Page 30 5. Press The treadmill stops, popping up the current sports scores. Press icon, to enter the custom settings page： www.powermaxfitness.net...
  • Page 31 Control directory Program list: Built-in U1-U16 a total of 16 program data for users to choose; coordinate map: Indicates the current running speed， Indicates the current incline; Adjust speed: Click to select, the user can slide the rectangle coordinates up and down, and customize the current running speed.
  • Page 32 Click the heart pulse control icon to enter the heart pulse control setting page: The user sets the parameters according to his own needs, clicks the ◆ start button, and the treadmill starts running; www.powermaxfitness.net...
  • Page 33  Treadmill parameter adjustment 1. When the user clicks the button, the treadmill starts to running, and the user clicks the back button in the upper right corner to return to the main interface to operate other operations. After, the user selects and clicks on any sport mode of the sports center interface, it will return to the heart pulse control speed interface.
  • Page 34 stops for the user to select; No operation in three seconds, this floating window is automatically closed. Press Time countdown icon, enter to the time countdown settings page:  The user selects the exercise time according to the needs, and the built-in fixed time.
  • Page 35  Press the stop button, the treadmill will slow down and stop running. The treadmill will pop up restarts and stops for the user to select. Select the stop button, the system will automatically calculate the results of the exercise and pop up the relevant transcript interface.
  • Page 36 Gobi Grassland seaside 6.6.1 Real view running: 1. In the real view interface, click to enter the Gobi page; 2. Display the motion parameters during running at the bottom of the Gobi running interface, click the “ ” icon to hide the bottom motion parameter; click display the motion parameter Control directory Floating window:...
  • Page 37 In the main interface, click the skin icon to enter the skin selection to enter the skin selection page. After the user selects, the selection button appears in the upper right corner. The machine skin has been set to OK. Click the upper right corner to return the main interface: 8.Application Built-in third-party music and video APP applications, Internet, social, news...
  • Page 38 Click on the entertainment icon to enter the entertainment interface: 9. Setting Built-in brightness adjustment, language selection, machine management, factory mode four functions;  This system will prohibit users from installing other APP applications to avoid crashing the treadmill system; ...
  • Page 39 Click the settings to enter the System Settings page: Slides left and right on the brightness bar, slides to the right to increase the brightness, and slides to the left to decrease the brightness. Machine Management: In the setting interface, click the machine management icon to enter the machine management interface.
  • Page 40 The error interface: Note: When the treadmill is used, if there is an abnormality, the interface will have an error message and a solution. (Some exceptions will not occur depending on the model) 6.1 AC motor Errors 6.1.1 List of G-Way Inverter Error Reports overvoltage；...
  • Page 41 inverter inside communication inverter inside communication error1 error12 receive boot signal, but before lifting fault shutdown signal has not even received 11.controller cannot receive signal 12.reverse switch action from inverter； 13.stator phase fault Current sensor U fault www.powermaxfitness.net...
  • Page 42 Current sensor W fault 10. How to lubricate the treadmill Lubricating oil The treadmill is oiled when leaving the factory, but lubricity of treadmill shall be inspected frequently, which helps to keep it in optimum state. The treadmill must be oiled after 1 year or running for 100h.
  • Page 43 Proper maintenance is always keeping your treadmill at its best. Wrong maintenance can hurt or shorten the life of the treadmill. Important notice: Do not use sandpaper or solvents to clean the treadmill. The control part of the treadmill should not be exposed to direct sunlight or moisture to avoid damage. Always check and screw all parts of the treadmill, and the damaged parts must be replaced immediately.

  • Page 44: Important Matter

    Note that the running belt cannot be adjusted too tightly, which will break the running belt, increase the pressure of the front/rear roller, and it will damage to the roller bearing. Abnormal sounds or other problems. If you want to reduce the tension of the running belt, please turn the wrench counterclockwise, paying attention to the same distance between the left and right sides.
  • Page 45 Warning Please consult your doctor and receive complete physical examination before using the product. Don’t carry out frequent and violent exercise without permission of doctor. Please stop using the product and consult your doctor if you feel unwell in use. The product shall be used correctly. Please read service manual in detail before exercise.
