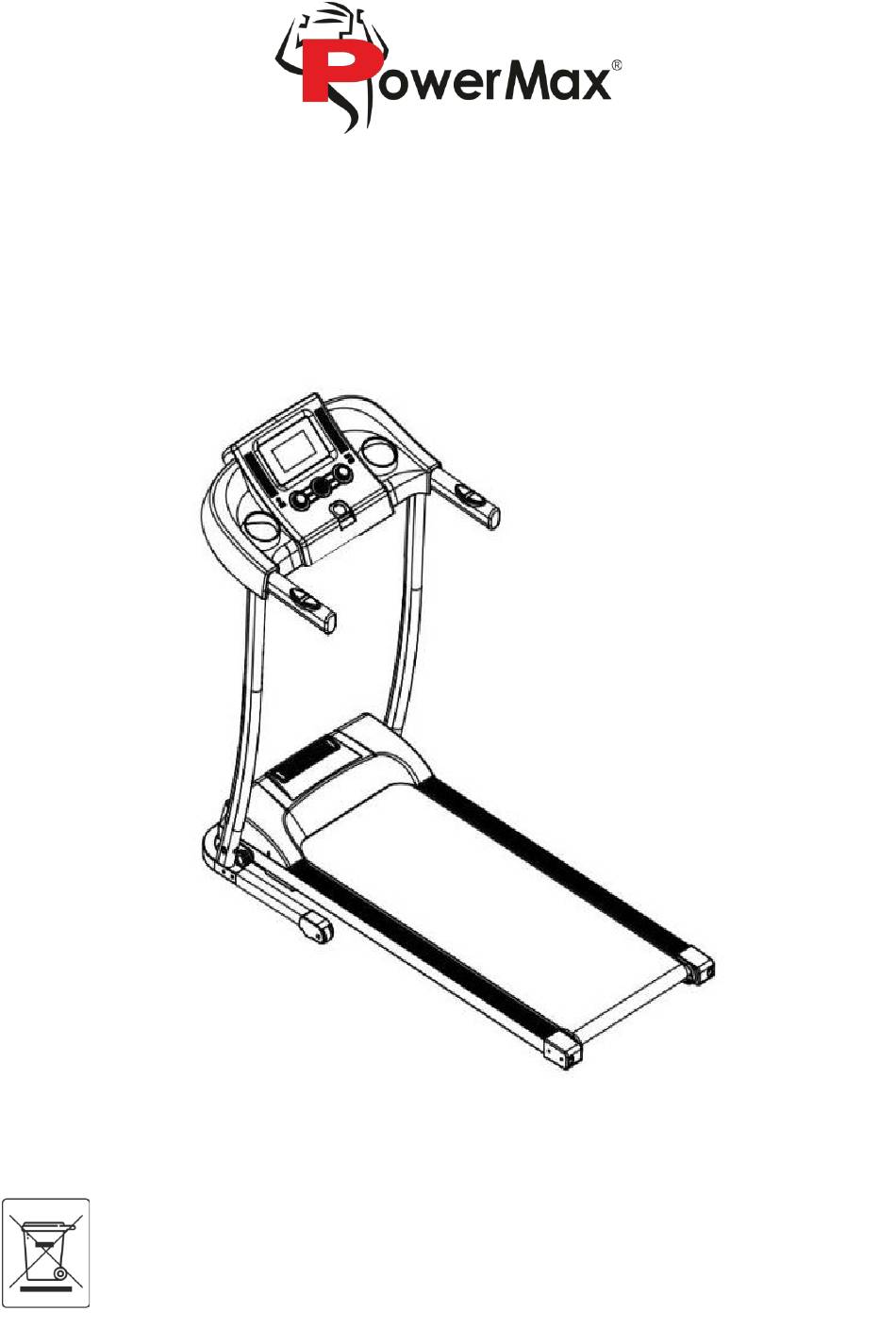

TDM-98
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PowerMax TDM-98
Summary of Contents for PowerMax TDM-98
- Page 1 TDM-98 Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.
- Page 2 ROUTINE MAINTENANCE 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.
- Page 3 1. PRODUCT BRIEF A. Single function home use treadmill: Main Parameters and Parts List Main Technical Parameters Parameters Names Description Input power voltage AC 220-240V(50/60Hz) Speed 1.0-10 Km/h Running surface 400*1100 mm Expand dimensions 1330*615*1025mm Functions (Option) Running(massager) www.powermaxfitness.net...
- Page 4 Packing List Name Units Complete machine Accessory Bag Base supporting frame Massager (Option) Accessory Bag List Name Name Inner hexagon spanner 5mm MP3 cable Combination wrench ScrewM8*25 Safety key Screw M6*12 Silicone oil Manual 2. SECURITY PRECAUTIONS AND WARNINGS Tips: Before folding the treadmill, make sure that the gradient is "zero".
- Page 5 Forbidden Don't use the machine in the status of the shell break in or break off （the internal structure ⚫ exposed）or under the condition of welding-parts may fall off. ---- Otherwise an accident or injury may happen. Don't jump up and down in the process of movement. ⚫...
- Page 6 This appliance is not intended for use by persons (including children) with reduced physical, ⚫ sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 7 3. INSTALLATION INSTRUCTIONS When installing, simple fix all screws first, then tighten the screws when the installation of frame is done. 1. Put the machine flat on the ground. Remove the knob with the direction shown in the picture bellow. Then stand the columns and console with the direction shown in the picture bellow.
- Page 8 4. Use the knob in step one to lock the main base and columns (Rotate clockwise, please refer to the arrow point direction). Uneven ground may cause trouble when rotate the knob, please lift the column slightly to left side (as shown below). In order to fold the machine easily next time, please don’t rotate the knob too tight.
- Page 9 Folding instructions When the treadmill is not in use, you can lift the running deck, then use knob to lock the running deck and base frame as bellow. 4. USING INSTRUCTIONS ❖ Plug in power plug properly and turn on the switch (in red colour) (1). When the light is on, there will be beep sound, and then the screen will light up.
- Page 10 1. Start button, Stop button： When the power is on, press the start button to start the treadmill. Stop button: when the treadmill is in running state, press stop button, all data will be cleared, and the treadmill gradually comes into a complete stop and returns to the manual mode. 2.
- Page 11 Automatic Program Each program is divided into 10 segments, and the running time of each segment of the program is evenly distributed. Following is a form of time distribution of 12 programs. Time Set time / 10 = running time of each period Programs SPEED SPEED...
- Page 12 Translation of Error Codes Error Description Solution Code Possible Cause: Communication Abnormal: The communication between the lower controller and when the power is on, the console is blocked, check each joint between the connection between lower controller and console, ensure that each core is fully controller and the console is plugged in.
- Page 13 5. ROUTINE MAINTENANCE Warning: Before cleaning or maintaining products, please be sure the power plug of the treadmill is pulled out. Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill. Remove dust periodically in order to keep the parts clean. Be sure to clean running belt with both sides of the exposed portion, which will reduce the accumulation of impurities.
- Page 14 Method of judging which part is loose: Remove the four screws on protective cover, make • the treadmill run at a speed of 1 km/h, and then stand on the running belt, grip the armrests, and tread the treadmill belt slightly. (we advise treading the treadmill belts with the user's own weight) A.
