Summary of Contents for PowerMax TDM-101

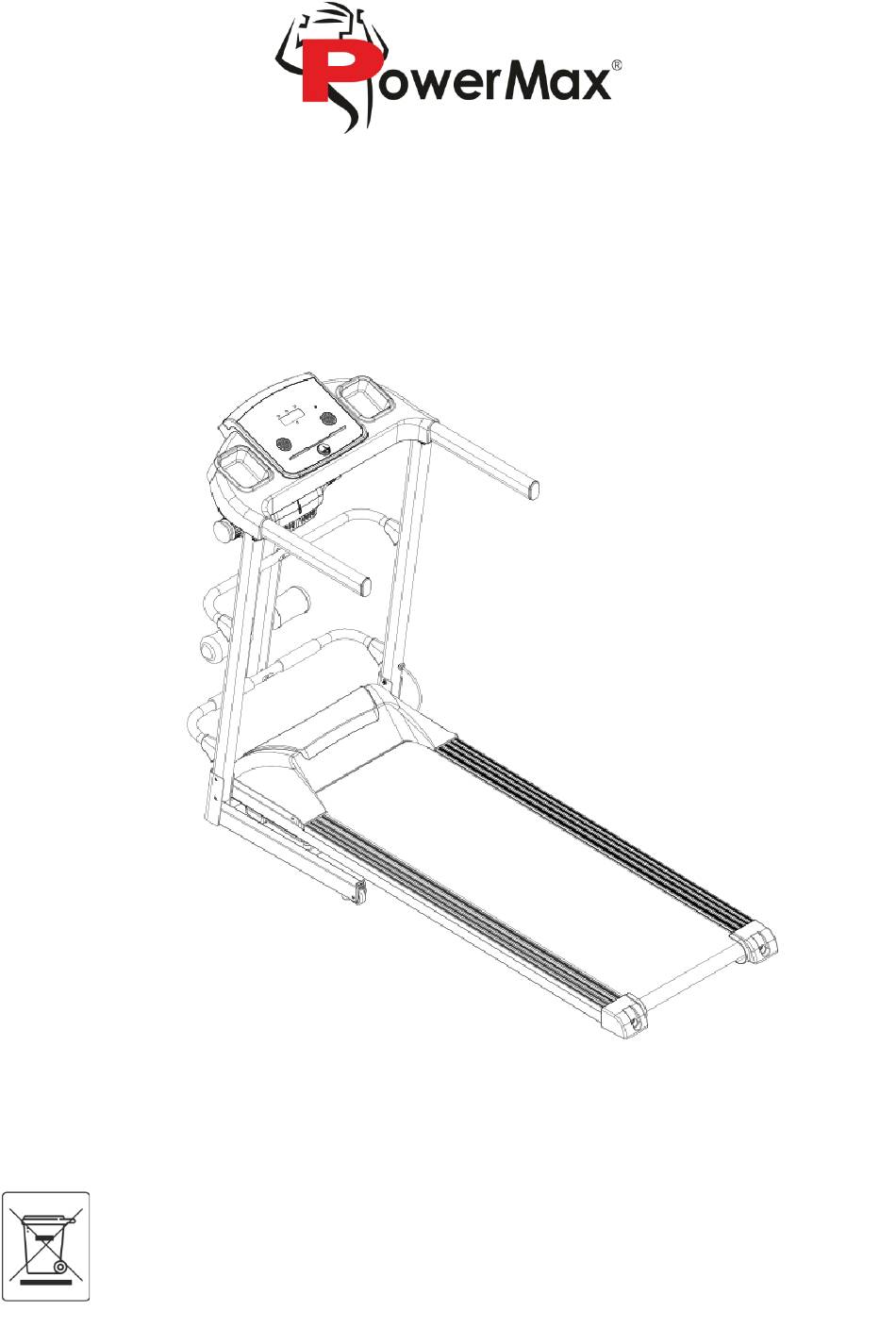

- Page 1 TDM-101 Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.
-
Page 2: Table Of Contents
FREQUENTLY ASKED QUESTIONS 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. -
Page 3: Product Introduction

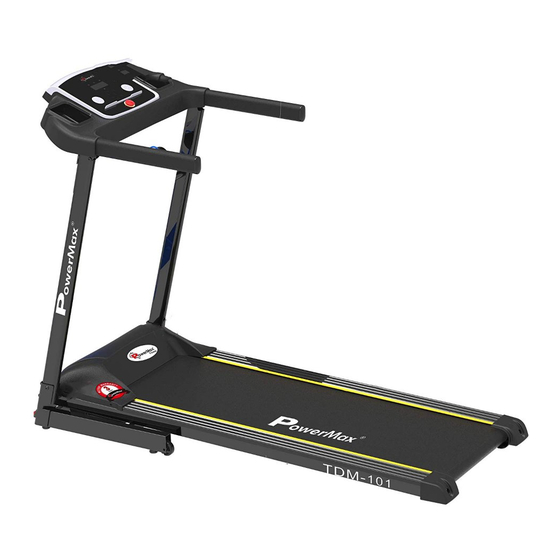

1. PRODUCT INTRODUCTION Product Name: Motorized Treadmill Model Number: TDM-101 Electronic console Safety key Upright Run platform PART LIST Parts number list Name Quantity Remark 6 mm Internal Hexagonal Nut M8*50 Up Horizontal Pipe 6 mm Internal Hexagonal Nut M8*40... -
Page 4: Security Notice And Warnings
Opening Wrench 13# 15# Si-oil 30ml 8*65 Functional Holder 6 mm Internal Hexagonal Nut M8*20 Package List Name Quantity Remark Compete (Base, Upright, Meters) Accessories Bag Manual/Warranty Card 2pcs 2. TWO SECURITY NOTICE AND WARNINGS Notice: Please carefully read the instruction book before using and notice the following safety matters. - Page 5 Warnings: In order to reduce accidents or injuries to others, please observe the following rules: ♦ Before using the machine, please check whether the clothes are buttoned up or zipped up. ♦ Don’t wear clothes that easy to be hooked by treadmill. ♦...
- Page 6 People who have abnormalities in the body and need rest. People whose health is obviously poor. People who aim to recover. In addition to the above cases, people who have specially feel abnormalities in their body. ----May cause troubles or poor health ♦...
- Page 7 BANS! ♦ People who do little exercise usually don’t do intense sports suddenly. ♦ Don’t use it after meal, when feeling tired, a short time after exercising, or the physical strength is abnormal. ----Otherwise, it may harm the health. ♦ This product is suitable for home use and not suitable for a few unspecified places such as schools, gyms, etc.
-
Page 8: Installation Steps
INSTALLATION STEPS When installing, first simply fix all the screws, and then tighten up after the shelf has been installed. Step1 Upright Frame Lift the upright frame, handle and control console, into position and fix in place using 2 M8*40 screws with 2 M8 nuts and 4 M8*20 screws. -
Page 9: Exercise Advices And Policy
Step 5 (only for multifunction) Functional Frame Use two M8*65 screws to fix the functional frame on the top and bottom U tube. Step 6 (only for multifunction) Massage 1. First, screw off the three M8*16 screws below the massage machine head, (include flat washers and spring washers), and then place the massage machine head on the functional frame, and tighten up with the... - Page 10 Stretching Exercise Whatever your running speed is, you’d better do stretch exercise first. Warn muscles are easier to stretch, so walk for 5 to 10 minutes to warn up. Next, stop to do stretching exercise for five times according to the following methods, 10 seconds or more for each leg, and do again after exercising.
-
Page 11: Product Instruction
PRODUCT INSTRUCTION 1. CONSOLE • SPEED: Rang 0.8-12.0KM/H. The LCD will show numbers 3,2,1, then, Starting treadmill. The setting and data show in LCD display during fat measurement. • TIME: A. Manual Model: Setting time 0-100 minutes or ‘end’ shows in LCD display, the speed of treadmill will be slow stably and standby time after 5 minutes. - Page 12 2. KEY FUNCTION. ‘SELECT’ KEY: Manual Model: 0:00 Count down Time model: 15:00 MIN: SECONCDS. Count down distance model: 1.00 KM Calories: 50.0 Inner Procedure: P01-P12. ‘START’ KEY: Starting the treadmill as long as power on and safe key grip compete. ‘STOP’...
- Page 13 In any circumstances, remove the safety switch, the system is down and sends alarm sound (all the windows show “-”). 6. ATTACHMENT： P1-P12 Program Sports Diagram www.powermaxfitness.net...
-
Page 14: Product Maintenance
6. PRODUCT MAINTENANCE Lubricating The running belt must be lubricated with specially configured methyl silicone oil after used for a period of time. 1. Advice: When use time a week is less than 3 hours, it should be lubricated once in five months. When use time a week is between 4-7 hours, it should be lubricated once in two months. - Page 15 3. Running belt tension adjustment All treadmills’ belts should be adjusted before leaving the factory and after the installation, however, after it is used for a period, looseness may occur. For example: when users are running, it may occur pause and slip, if which happens, adjust the belt and bolts synchronously from both the left and right side in a clockwise direction and with semicircle as the unit;...
-
Page 16: Frequently Asked Questions
Notice: Periodically clean the impurities in the belt groove and the belt wheel groove. 6. Treatment method of running belt slip or pause First open the front motor cover, then open the treadmill, hold the hand grip with both hands, step on the belt hard with your feet, watch it is the conveyor belt of the motor that pauses or the running belt that pauses.
