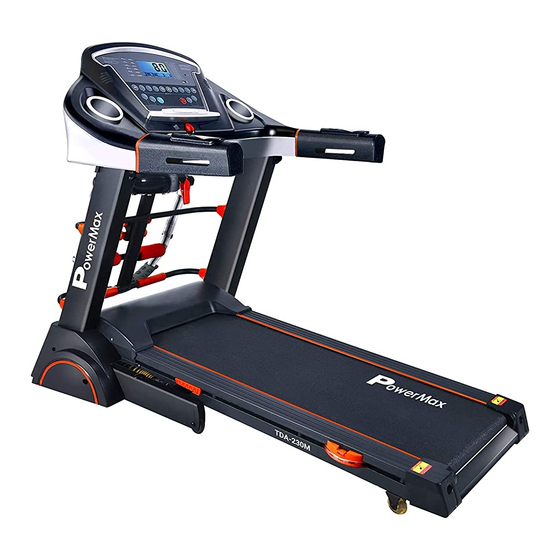

TDA-230
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TDA-230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerMax TDA-230

Summary of Contents for PowerMax TDA-230

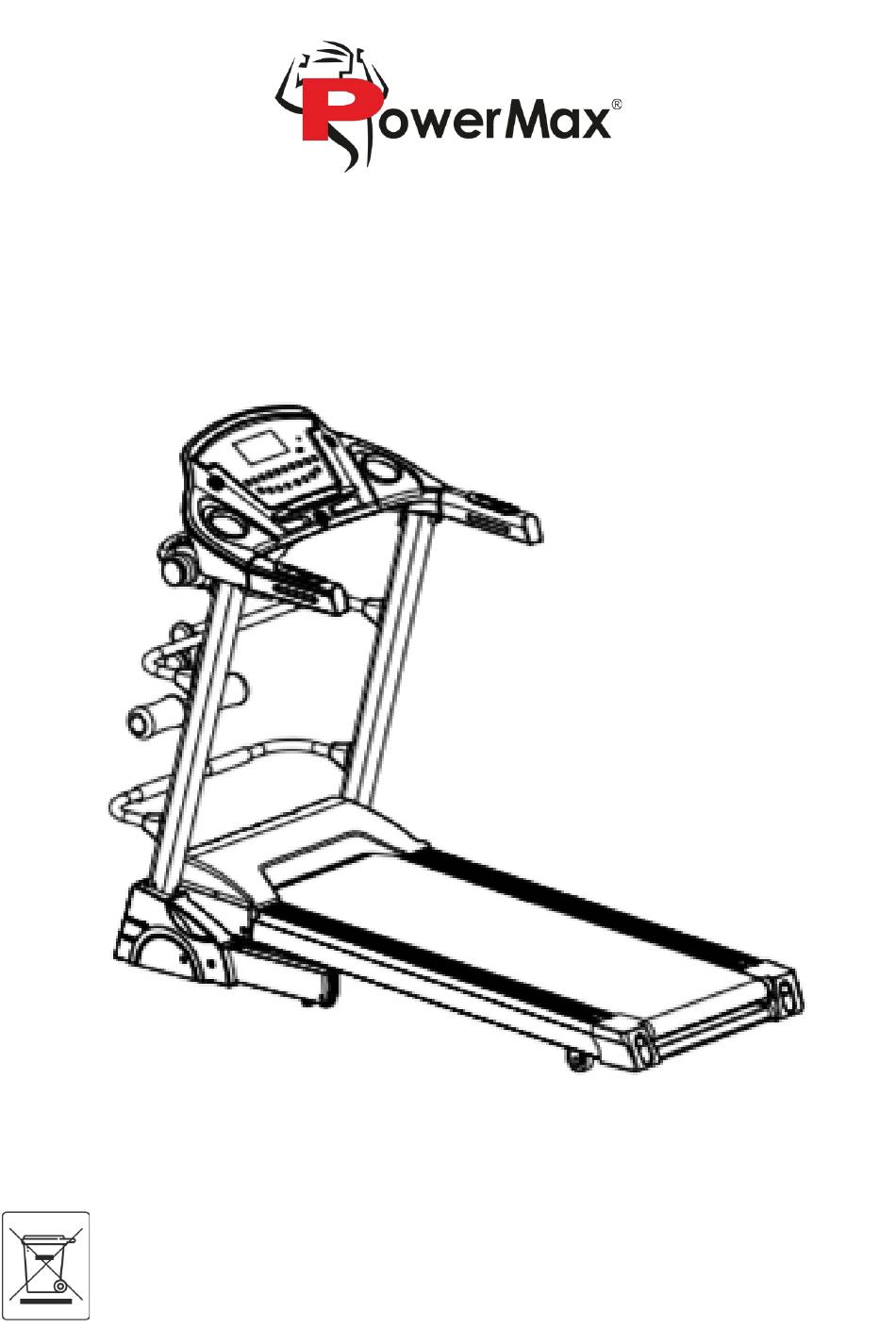

  • Page 1 TDA-230 Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.

  • Page 2: Table Of Contents

    PRODUCT MAINTENANCE 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.

  • Page 3: Product Introduction

    National Athletic Sports Goods Inspection Centre. Our products fully obtain recognition from domestic and foreign customers • Business Policy: Satisfaction from customers is our good foundation. • 1. PRODUCT INTRODUCTION Product Name: Motorized Treadmill Model Number: TDA-230 Electronic Safety Upright Run platform www.powermaxfitness.net...

  • Page 4: Part List

    Technical Parameters Parameters Name Running Area 1260*420MM Max Allowable weight 115KG Expand Size 1670*720*1210MM Voltage/Frequency AC220V (50~60Hz) Motor Continuous Power 2.0HP Speed 1.0-14.0KM/H Parts Number List 6 mm Internal Hexagonal Nut M8*50 Up Horizontal Pipe 6 mm Internal Hexagonal Nut M8*35 U Pipe Fix 6 mm Internal Hexagonal Nut sM8*55 Upright fixed...

  • Page 5: Security Notice And Warning

    2. SECURITY NOTICE AND WARNINGS Notice: Please carefully read the instruction book before using and notice the following safety matters. Treadmill is suitable to be placed in the room so as to avoid dampness. It can’t be splashed ◆ by water and can’t prevent any foreign materials. Before exercising, please wear suitable sports clothes and sports shoes.
  • Page 6 Warnings! Compulsion! For people who are undertaking medical treatment or the following patients, please discuss ◆ with special doctors before use. （1） People who are suffering back pain or who suffered leg, waist, neck injuries. People who suffer leg, waist, neck and hand numbness (people who have inveterate diseases such as slipped disc, spine slipped disease, cervical protruding, etc.) （2）...
  • Page 7 Bans! Don’t use when the shell cracks and falls apart (inner structure is exposed) or welding parts ◆ fall off. ----Otherwise, it may cause accidents or injuries. During exercising, don’t jump up or down. ◆ ----Otherwise, injuries may be caused by falling down. Don’t use and keep it in the damp places outdoor or near the bath room and places that are ◆...
  • Page 8 Don’t pull out or insert power plug with wet hand. ◆ ----Otherwise, it may cause electric shock or injuries. Pull out power plug! when not use, pull out the plug from plug base. ◆ ----Otherwise, dust and dampness will make insulation degrade, and then leakage of electricity and fire will be caused.

  • Page 9: Installation Steps

    3. INSTALLATION STEPS When installing, first simply fix all the screws, and then tighten up after the shelf has been installed. Step1 Upright: 1. Uplift part of the upright and electronic watch dial, use one M8*45 screw respectively on both sides of the treadmill to pass through the below connection hole, add the shims and tighten up the screws.
  • Page 10 Step 4: (only for multifunction) Functional frame Use two M8*40 screws to fix the functional frame on the top and bottom U tube. Step 5: (only for multifunction) Massage First, screw off the three M8*16 screws below the massage machine head, (include flat washers and spring washers), and then place the massage machine head on the functional frame, and tighten up with the above unloaded screws.

  • Page 11: Exercise Advices And Policy

    Step7(only for six level shock Absorption system) Install rubber decoration cover put the rubber decoration cover to the Threaded hole based on step 4. EXERCISE ADVICES AND POLICY Warm-up Take warm-up exercise for 5 to 10 minutes before using this machine each time. Breathing When exercising, you can’t hold your breath, usually inhale with nose when intending to release actions, and exhale with mouth.
  • Page 12 1. Stretching Downward Slightly bend knees, and slowly bend the body down. Relax back and shoulders, touch the legs and toes as close as possible with hands, keep for 10~15 seconds and then relax. Repeat for three times. (see picture 1) 2.

  • Page 13: Product Instruction

    5. PRODUCT INSTRUCTION 1. CONSOLE 2. SPEED Rang 1.0-14.0KM/H. The LCD will show numbers 3,2,1, then, Starting treadmill. The setting and data show in LCD display during fat measurement. 3. TIME Manual Model: Setting time 0-100 minutes or ‘end’ shows in LCD display, the speed of treadmill will be slow stably and standby time after 5 minutes.
  • Page 14 speed of 1.0 KPH. You may press the SPEED +/SPEED - button on the computer console to increase or decrease the running speed during exercise. Time starts counting down from pre-set target time to 0:00 per 1 second backward. When the pre-set target time counts down to 0:00, the computer will beep to alert you and the treadmill will stop automatically.
  • Page 15 training. To set CALORIES press MODE button on the computer console to select CALORIES until you see the split window of CAL. begin blinking. The initial pre-set target calorie is 50 calories. Press the SPEED+/SPEED- button on the computer console to change the setting. The pre-set target calories range is from 20 to 999 calories.
  • Page 16 4.MANUAL MODEL 1. STARTING:1KM/H---------SPEED ‘+’ OR ‘-’ AND INCLINE ‘+’ OR ‘-’ 2. MODE KEY----------TIME window:15:00 twinkle. The INCLINE+ or - and SPEED + or - can adjust the time. The range of time: 5:00-99:00. 4. Functions of the safety lock: In any state, if pulling off the safety lock, you may immediately stop the motor running, and then the time window will display the marks “------“, and the buzzer will emit “B1-B1-B1”...
  • Page 17 7.Attachment： P1-P12Program Sports Diagram Make the set time/20-time segments equal to the operation time of up and down time Time segments Program Speed Raise Speed Raise Speed Raise Speed Raise Speed Raise Speed Raise Speed Raise Speed Raise Speed Raise Speed Raise Speed...

  • Page 18: Product Maintenance

    6. PRODUCT MAINTENANCE Lubricating The running belt must be lubricated with specially configured methyl silicone oil after used for a period of time. 1. Advice: When use time a week is less than 3 hours, it should be lubricated once in five months. When use time a week is between 4-7 hours, it should be lubricated once in two months.
  • Page 19 too loose, it may occur slip between the belt and the roller when treading on the belt; but if too tight, it will be easy to increase the motor load and damage motor, running belt, roller, etc. 4. Running belt deviation adjustment All treadmills’...
