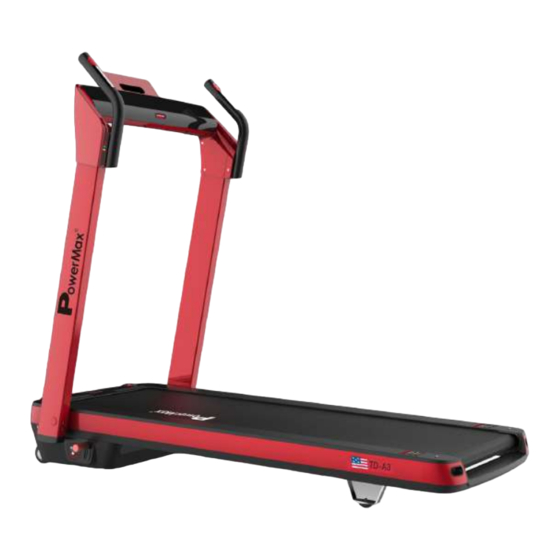

PowerMax TD-A3 Owner's Manual

Motorized treadmill
Hide thumbs

Advertisement

Quick Links

Download this manual
TD-A3
Owner's Manual of Motorized Treadmill

Advertisement

loading
Need help?

Need help?

Do you have a question about the TD-A3 and is the answer not in the manual?

Questions and answers

Related Manuals for PowerMax TD-A3

Summary of Contents for PowerMax TD-A3

  • Page 1 TD-A3 Owner’s Manual of Motorized Treadmill...
  • Page 2 CONTENTS SAFETY PRECAUTIONS WARRANTY DESCRIPTION SAFETY USE ATTENTION ASSEMBLY INSTRUCTION TECHNICAL PARAMETERS F I N E R C R A F T M A N S H I P GETTING START F I N E R L I F E WARM-UP EXERCISE OPERATION INSTRUCTION SAFETY EXERCISE...
  • Page 5 注意：一定要仔细的依照我们的组装说明来安装本产品。...
  • Page 9 20. L M6*12 4PCS 114. 2PCS 103. MP3 128.
  • Page 11 Third Step: Put the safety key in the treadmill corresponding hole. Notice:You can only plug in the power,after the confirmation that treadmill is assembled completely according to the assemble requirements and there is nothing missing.Please read carefully corresponding instructions on the later part of this manual,when you operate and use the treadmill.
  • Page 14 1455（ L ）*745（ W ） Assembly size (mm) 1- 14Km/h Speed Range *1235（ H ） 45（ L ）*265（ W ） Rating 2.5HP Folded standing size(mm) *1455（ H ） Running size(mm) 1300*480 220-240V Motor Spec(HP) N.W.(kg) 57Kgs 930W Input Volt(V) Max user weight 0-28℃...
  • Page 18 picture picture...
  • Page 19 Picture Picture...
  • Page 22 numbers, after the 3 seconds countdown, the treadmill start to run by 1.0 km/h speed. 3.After start, can adjust treadmill speed and incline with handrail button according to needs; also can use “ incline 3” 、” incline 5”、“ speed 3” 、”...
  • Page 25 speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline...
  • Page 27 A U X ： 。 right...
  • Page 28 Setting no Parameter definition Setting range Remark Lowest speed 3～30 Highest speed 80～250 Highest speed 12～20 Speeding up time/kilometers 2～200 2～200 Speeding down time/kilometers 100～2000 low speed transmission ratio 100～2000 middle speed transmission ratio 100～2000 High speed transmission ratio 0～6000 Automatic transmission ratio...
  • Page 32 ： ： ：...
  • Page 36 或 。...
  • Page 38 33 36 ITEM DESCRIPTION Q’ ITEM DESCRIPTION Q’ Main frame Incline bracket 3L/R Upright pad bracket Meter bracket Loudspeaker fixed horizontal tube seat 7L/R pad bracket fixed Adjusting sheet seat Supporting wheel 10L/ Choice sheet L/R fixed bracket Transporting Supporting wheel wheel axis axis Incline bracket U...
  • Page 39 33 37 32L/ Motor cover Upper motor cover Left/right side decorative cap Transporting Foot lever stopple wheel 35L/ Edging L/R Supporting transporting wheel Supporting wheel Supporting wheel upper cover under cover Meter under cover Meter under cover Meter panel 42L/ Meter left/right outer side cover 43L/...
  • Page 40 33 38 Light transmitting Flat washer ∮9*∮23*t1.5 plate 53L/ Left right upright module fixer stopple Silicon oil bolt M8*20 bolt M8*25 screw M5*8 screw M6*12 screw M6*20 screw ST3.0*15 screw M6*28 screw M6*12 screw ST3.0*20 screw ST4.0*15 screw BT2.5*8 screw ST3.0*10 screw BT4*8...
  • Page 41 33 39 ∮6.6*∮ Flat washer ∮9*∮16*t1.6 washer 11.8*t1.6 nickel-plating ∮4.1*∮ Flat washer ∮11*∮20*t2.0 washer 4.4*t1nickel-plat E-shape Snap Spring washer ∮8 black Rings C-shape Snap match∮20 black flange nut M10*P1.25 Rings shaft Inner diameter∮ Flat washer ∮12.2*∮17*t0.5 O shape ring 13*wire diameter∮1.5 Running board Power cord...
