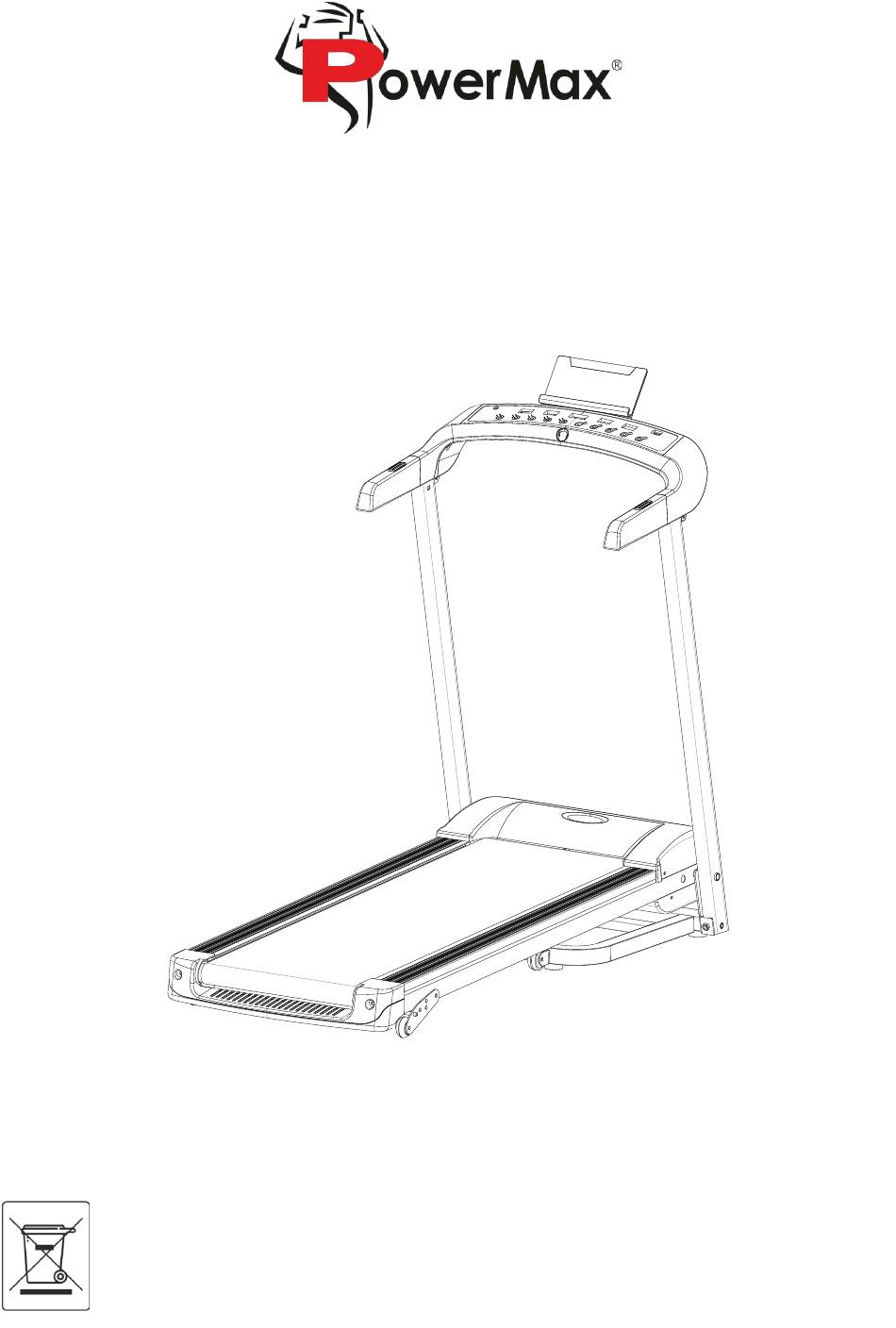

TDM-99S
Treadmill User Manual
OWNER'S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TDM-99S and is the answer not in the manual?

Questions and answers

Related Manuals for PowerMax TDM-99S

Summary of Contents for PowerMax TDM-99S

  • Page 1 TDM-99S Treadmill User Manual OWNER’S MANUAL Read all instructions carefully before using this product. Retain this owner's manual for the future's reference. Product may be slightly different with photos, it is subject to actual product. Thank you for purchasing the product.

  • Page 2: Table Of Contents

    TREADMILL ERROR MESSAGE PROMPT 1 YEAR LIMITED WARRANTY PowerMax Fitness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.

  • Page 3: Treadmill Parameter And Safety

    Thank you very much for purchasing this product, to be able to use the product, be sure to read this manual. TREADMILL MAIN PARAMETERS 1. Running Area: 1150*405mm 2. Max User’s Weight: 110KG 3. Set up Size: (L*W*H)1450*710*1220mm 4. Folding Size: (L*W*H)600*710*1410mm 5.

  • Page 4: Packing Details

    PACKING DETAILS Manual + Screw Frame package iPad support SCREW PACKAGE (MONOFUNCTIONAL) www.powermaxfitness.net...

  • Page 5: Assembly Step

    ASSEMBLY STEPS Step 1: Extending the framework Take the treadmill out of the box and put it on the flat ground. As shown in the arrow in Figure 1, the two sides of the column are slowly protected to a fixed Figure I Step 2: Assembly 1 Figure 2: Left and right A.
  • Page 6 As Figure 3: Fold the electronic table on the column in the direction of the arrow. M 8 * 16 and B 2 PCs respectively fix the electronic meter to the column and tighten with the M 5 wrench. Figure III Figure 4: The IP bracket is fixed to the electronic meter with 2PCS.M5 * 16(B) with a screwdriver Treadmill assembly complete.

  • Page 7: Folding And Unfolding

    FOLDING AND UNFOLDING The main platform has a cylinder. Only gently lift the tail of the main frame in the direction of the Folding Mode arrow in the figure. The main frame will be automatically folded appropriate position. Hold the cylinder arrow with your foot as we unfold and press the arrow at the end of the How to expand main frame with your hand while the treadmill...
  • Page 8 Minimum time: 8min under (P1-P9) Program mode • Maximum time: 99min under (P1-P9) Program mode • 3. LCD Display Instruction LCD (94774) shows: Speed, Time, Distance, Calories. 4. Button Function Function button: Speed Shortcuts 4 (3, 6, 9, 12) “Start” button “Stop” button •...
  • Page 9 C. Auto mode Enter auto mode: In the initial setting mode or standby state, press the key to enter the program automatic program selection. At this time window 30:00 minutes and flashes through speed +/- keys set the desired run time, set the range of 8: 00 ~ 99: 00 minutes, press the Start button to enter the automatic program.

  • Page 10: P1-P9 Program Motion Map

    SCHEDULE 1: P1-P9 PROGRAM MOTION MAP TREADMILL COMMON ERROR MESSAGES PROMPT DESCRIPTION E01: Communication blocked between Electronic and controller. When communication line is blocked Please connect again or change between Electronic and under controller communication line Solution When Electronic without signal Change Electronic to repair When under controller without signal Change under controller to repair...
  • Page 11 E03: When the motor is running, the controller can’t test the speed signal. Motor cable is not connected Check connection Solution Under controller with abnormal signal Change under controller to repair E05: When the motor is running, current exceeds the rated current. Treadmill motor load exceeds the rated Recommend within the rated current...
  • Page 12 Use the Treadmill Lubricant Location is in the middle of the lower surface of the running belt. When add lubricant, please inject to the centre of running board, then put down the belt, pressing the hole by hands, rotating the belt to apply evenly. www.powermaxfitness.net...
