- Page 1 WSP-R240A MODEL (2inch Mobile Printer) Rev. 1.0 All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 Copyright ⓒ2023 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc. Trademark a registered trademark of Woosim Systems Inc.

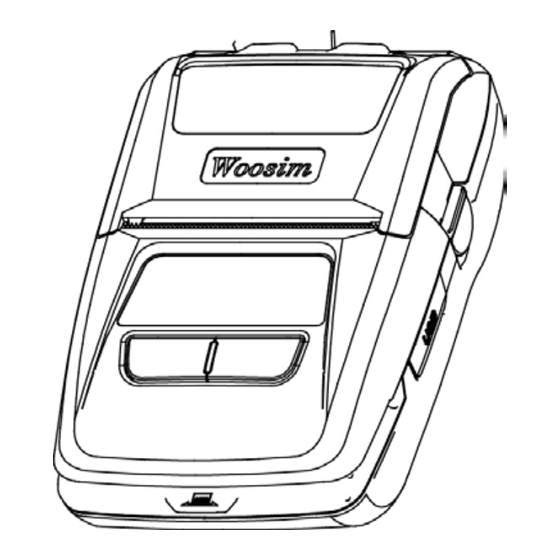

- Page 3 WSP-R240A Rev. 1.0 Introduction The WSP-R240A is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-R240A printer are as follows: Pocket size (80 x 121.3 x 47.4mm) ...
-
Page 4: Operating Precautions
WSP-R240A Rev. 1.0 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●... - Page 5 WSP-R240A Rev. 1.0 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-R240A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Table Of Contents
WSP-R240A Rev. 1.0 CONTENTS 1. Outline..................................7 1.1. Model classifications............................7 1.2 Symbol ................................7 1.3 Product Part Number System ......................... 8 1.4. Specifications..............................9 2. Setting up the printer............................10 2.1. Printer & Accessories ............................ 10 2.2. -
Page 7: Outline
WSP-R240A Rev. 1.0 WSP-R240A Model Interface C1 : USB/Bluetooth (Standard) Power None : USB 5V Standby symbol IEC 5009, the standby symbol(line partially within a broken circle), Indicates a sleep mode or low power state. Direct current symbol This symbol is found on many electronic devices that either require or produce direct current. -
Page 8: Product Part Number System
WSP-R240A Rev. 1.0 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 9: Specifications
WSP-R240A Rev. 1.0 Item Specifications Print method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 32cpl / Font B : 42cpl / Font C : 48cpl... -
Page 10: Setting Up The Printer
WSP-R240A Rev. 1.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Thermal roll paper WSP-R240A ▼ OPTIONAL USB cable <Type A to C> Belt clip... -
Page 11: Printer Features
WSP-R240A Rev. 1.0 ▶ Part Name http://www.woosim.com... -
Page 12: Dimensions
WSP-R240A Rev. 1.0 http://www.woosim.com... -
Page 13: Replacing Paper Roll
WSP-R240A Rev. 1.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 14: Power Supply
WSP-R240A Rev. 1.0 The following specification is requested for Power supply. Rated Voltage : DC5V / 2.0A Avoid using power supply which its power capacity of power current is extremely high. Warning : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 15: Recharging The Battery Pack
WSP-R240A Rev. 1.0 For recharging the battery pack, install the battery pack in the printer. Insert the cable(USB A to C type) into the USB connector on the printer. (Charge with USB 5V or use the adapter.) NOTE : ●... -
Page 16: Set Operation Mode
WSP-R240A Rev. 1.0 In keeping on pressing the Feed and Power button simultaneously until after the OLED Backlight(Blue) blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) FEED button : changing Printer MODE status. - Page 17 WSP-R240A Rev. 1.0 [Example] The defaults of the printer are : USB / Density Low / Mark No Use / Sensor High / PWDN 5 min slp If a user wants to modify the defaults with Bluetooth / Density High / Mark Use / Sensor Low / PWDN No Use ...
-
Page 18: Memory Switch Table
WSP-R240A Rev. 1.0 Mode Option Etc. Mode Option Etc. No use Communi- USB(Pro) 1min Sleep cation Bluetooth 2min Sleep Port (Pro) 3min Sleep Bluetooth (iAP) 4min Sleep Bluetooth Power 5min Sleep Down Density Medium 1min Off High 2min Off No use... -
Page 19: Interface
WSP-R240A Rev. 1.0 The WSP-R240A printer has a USB interface and is connected by means of a USB “C” type socket. In the following table, the signals present on the USB C type socket are listed: Pin No. Name Function... -
Page 20: Bluetooth
WSP-R240A Rev. 1.0 Category Specification Bluetooth Spec. V5.2 / Class2 (10m) Frequency band 2402~2480 MHz Protocol L2CAP, RFCOMM, SDP Profile GATT, GAP, SDAP, SPP ▶ Check the direction of the magnetic stripe and read the card. ▶ Holding the card as shown above, please pass at a steady speed. -
Page 21: Using The Printer
WSP-R240A Rev. 1.0 BUTTON - FEED Button Use to feed paper continuously. - POWER Button : ① When of 5 or more seconds presses and power comes to on or off. ② After pressing the POWER and the FEED button simultaneously, if the ERROR lamp 5 turn signals POWER button is converted with MODE functions. -
Page 22: The Self Test
5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a screw driver. -
Page 23: Consumable Parts
WSP-R240A Rev. 1.0 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended. -
Page 24: Revision History
WSP-R240A Rev. 1.0 Date Version Comments Dec. 26. 2023 Initialize http://www.woosim.com...
