All specifications are subjected to change without notice

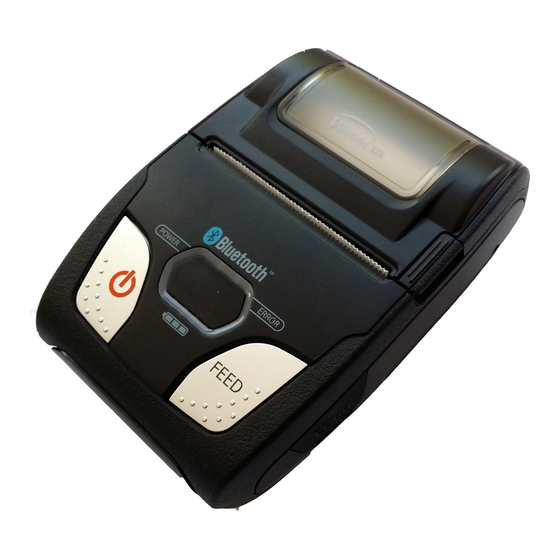

WSP-R241
MODEL
(2inch Mobile Printer)
Rev. 1.0
WOOSIM SYSTEMS Inc.
(#501, Daerung Technotown 3th)
115, Gasan digital 2-ro, Geumcheon-gu,
Seoul, 153-772 Rep. of KOREA
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL:
http://www.woosim.com
http://www.woosim.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WOOSIM WSP-R241
Summary of Contents for WOOSIM WSP-R241
- Page 1 WSP-R241 MODEL (2inch Mobile Printer) Rev. 1.0 WOOSIM SYSTEMS Inc. (#501, Daerung Technotown 3th) 115, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-772 Rep. of KOREA Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice...
- Page 2 Copyright ⓒ2014 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
- Page 3 WSP-R241 Rev. 1.0 Introduction The WSP-R241 is suitable designed for use with a growing variety of mobile devices. Bluetooth/Serial interfaces make the WSP-R241 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.
-
Page 4: Operating Precautions
WSP-R241 Rev. 1.0 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●... -
Page 5: Federal Communications Commission
WSP-R241 Rev. 1.0 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-R241 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Table Of Contents
WSP-R241 Rev. 1.0 CONTENTS 1. Outline............................7 1.1. Model classifications ......................7 1.2. Product Part Number System ...................7 1.3. Specifications........................8 2. Setting up the printer ......................10 2.1. Printer & Accessories ....................... 10 2.2. Printer Features ......................... 11 2.3. Dimensions ........................12 2.4. -
Page 7: Outline
WSP-R241 Rev. 1.0 WSP-R241 Model Interface A1:USB/Bluetooth Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 8: Specifications
WSP-R241 Rev. 1.0 Item Specification Printing method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 32cpl / Font B : 42cpl / Font C : 48cpl... - Page 9 WSP-R241 Rev. 1.0 Item Specification Triple tracks (1&2&3 Tracks Reading) MSR [option] *Supports 3DES & AES encryption Battery Rechargeable 7.4V DC , 1100mAh (Li-ion) Battery duration 1 hour continuous printing Input (100~240V AC 50/60Hz) Battery Charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating)
-
Page 10: Setting Up The Printer
WSP-R241 Rev. 1.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal roll paper Battery Pack WSP-R241 Belt Clip Battery charger adaptor Communication cable ▼ OPTIONAL... -
Page 11: Printer Features
WSP-R241 Rev. 1.0 ▶ Part Name [MSR Model] http://www.woosim.com... -
Page 12: Dimensions
WSP-R241 Rev. 1.0 ▶ Standard Model http://www.woosim.com... - Page 13 WSP-R241 Rev. 1.0 ▶ MSR Model http://www.woosim.com...
-
Page 14: Replacing The Paper Roll
WSP-R241 Rev. 1.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 15: Power Supply
WSP-R241 Rev. 1.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 16: Recharging The Battery
WSP-R241 Rev. 1.0 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. Insert the Battery charger adaptor to the charge connector of the External Battery Cradle. -
Page 17: Set Operation Mode
WSP-R241 Rev. 1.0 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer to Table 2) ** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change the printer mode. - Page 18 WSP-R241 Rev. 1.0 POWER button : use for changing OPTION status. (Error Lamp) FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are : USB / 9600 bps / 8 data bit / No parity / 1 stop bit / Density low...
- Page 19 WSP-R241 Rev. 1.0 When you press FEED Button once again, Power Lamp flickers 5 times Error Lamp flickers once. Press POWER Button once, Error Lamp flickers twice. And then the density has set to 2 stop bit. When you press FEED Button once again,...
- Page 20 WSP-R241 Rev. 1.0 ERROR Lamp POWER Lamp MODE Option (Green) (Red) RS-232C USB(Pro) RS-232C(Pro) Communication Bluetooth Port Bluetooth(Pro) Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity...
- Page 21 WSP-R241 Rev. 1.0 POWER Lamp ERROR Lamp MODE Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad Whole aspect.
-
Page 22: Interface
WSP-R241 Rev. 1.0 (Fig.3.1) The WSP-R241 printer has a USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Function DATA “-”... -
Page 23: Bluetooth
WSP-R241 Rev. 1.0 Category Specification Bluetooth Spec. Bluetooth Ver3.0 + EDR / Class2 (10m) Frequency band 2.4GHz Protocol L2CAP, RFCOMM, SDP Profile GAP, SDAP, SPP Please take notice that Magnetic Stripe Card should be swapped in direction of arrow. Card can be read in both... -
Page 24: Using The Printer
WSP-R241 Rev. 1.0 (Fig.4.1) Button FEED Button: When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. POWER Button: ① When of 5 or more seconds presses and power comes to on or off. -
Page 25: The Self Test
(ROM version and communication mode) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. http://www.woosim.com... -
Page 26: Using The Belt Clip
WSP-R241 Rev. 1.0 Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a coin. Afterward, you can use it like the picture below... -
Page 27: Consumable Parts
WSP-R241 Rev. 1.0 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended. -
Page 28: Revision History
WSP-R241 Rev. 1.0 Date Version Comments Oct. 20. 2014 Initialize http://www.woosim.com...
