MODEL
All specifications are subjected to change without notice

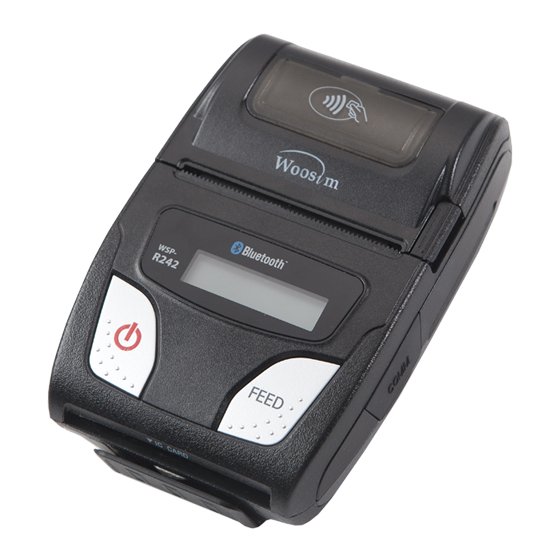

WSP-R242
(2inch Mobile Printer)
Rev. 1.0
WOOSIM SYSTEMS Inc.
(#501, Daerung Technotown 3th)
115, Gasan digital 2-ro, Geumcheon-gu,
Seoul, 153-772 Rep. of KOREA
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL:
http://www.woosim.com
http://www.woosim.com
Advertisement
Table of Contents
Related Manuals for WOOSIM WSP-R242
Summary of Contents for WOOSIM WSP-R242
- Page 1 WSP-R242 MODEL (2inch Mobile Printer) Rev. 1.0 WOOSIM SYSTEMS Inc. (#501, Daerung Technotown 3th) 115, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-772 Rep. of KOREA Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice...
- Page 2 Copyright ⓒ2015 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
- Page 3 WSP-R242 Rev. 1.0 Introduction The WSP-R242 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-R242 printer are as follows: Compact size (79.2 x 123 x 45.6mm) ...
-
Page 4: Operating Precautions
WSP-R242 Rev. 1.0 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●... -
Page 5: Federal Communications Commission
WSP-R242 Rev. 1.0 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-R242 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Table Of Contents
WSP-R242 Rev. 1.0 CONTENTS 1. Outline............................8 1.1. Model classifications......................8 1.2 Product Part Number System ..................8 1.3. Specifications........................9 2. Setting up the printer......................11 2.1. Printer & Accessories ..................... 11 2.2. Printer Features ....................... 12 2.3. Dimensions ........................13 2.4. - Page 7 WSP-R242 Rev. 1.0 5.2. The self test ........................27 5.3. Using the Belt clip ......................27 6. Consumable Parts........................28 6.1. Recommended paper..................... 28 6.2. Printing position......................28 7. Revision History ........................29 http://www.woosim.com...
-
Page 8: Outline
WSP-R242 Rev. 1.0 WSP-R242 Model Interface C1 : USB/Bluetooth (Standard) Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 9: Specifications
WSP-R242 Rev. 1.0 Item Specifications Print method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 32cpl / Font B : 42cpl / Font C : 48cpl... - Page 10 WSP-R242 Rev. 1.0 Item Specifications Battery Rechargeable 7.4V DC, 1100mAh (Li-ion) Battery duration 1 hour continuous printing Input (100~250V AC, 50~60Hz) Battery charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating) Temperature Environment -10°C ~ 70°C (storage) conditions 30% - 80%...
-
Page 11: Setting Up The Printer
WSP-R242 Rev. 1.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Communication cable Battery charger adaptor WSP-R242 Battery Pack Thermal roll paper Belt clip ▼ OPTIONAL... -
Page 12: Printer Features
WSP-R242 Rev. 1.0 ▶ Part Name http://www.woosim.com... -
Page 13: Dimensions
WSP-R242 Rev. 1.0 http://www.woosim.com... -
Page 14: Replacing Paper Roll
WSP-R242 Rev. 1.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 15: Power Supply
WSP-R242 Rev. 1.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A high. Avoid using power supply which its power capacity of power current is extremely NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 16: Recharging The Battery Pack
WSP-R242 Rev. 1.0 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. NOTE : ● While charging the printer, turn off the printer power. ● Do not remove the battery during charging. -
Page 17: Set Operation Mode
WSP-R242 Rev. 1.0 In keeping on pressing the Feed and Power button simultaneously until after the Backlight(blue) blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) FEED button : changing Printer MODE status. - Page 18 WSP-R242 Rev. 1.0 [Example] The defaults of the printer are : USB / Density Low / Mark No Use / Sensor High / PWDN 5 min slp If a user wants to modify the defaults with Bluetooth / Density High / Mark Use / Sensor Low / PWDN No Use Press FEED &...
-
Page 19: Gap/Hole Sensor Setting
WSP-R242 Rev. 1.0 1. Set Mark as GAP / HOLE on mode setting. 2. If feed button keeps being pressed during self “SENSOR SETTING” appears on LCD window and paper keeps coming out “SENSOR SETTING”. 3. If feed button is not pressed after printing more than 3 pages of label 4. -
Page 20: Memory Switch Table
WSP-R242 Rev. 1.0 Mode Option Etc. Mode Option Etc. No use Communi- USB(Pro) 1min Sleep cation 2min Sleep Bluetooth Port (Pro) 3min Sleep Bluetooth (iAP) 4min Sleep Bluetooth Power 5min Sleep Down Density Medium 1min Off High 2min Off No use... -
Page 21: Interface
WSP-R242 Rev. 1.0 The WSP-R242 printer has a USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Function DATA “-”... -
Page 22: Magnetic Card Reading
WSP-R242 Rev. 1.0 ▶ Check the direction of the magnetic stripe card and reading. ▶ Cards can be read in both directions. ▶ If the reading is successful, the card buzzer once, beep three times if it fails. http://www.woosim.com... -
Page 23: Smart Card Reader Module
WSP-R242 Rev. 1.0 Contact Smart Card Reader Module for ISO/IEC-7816 Support Asynchronous Protocol T=0,T=1 Smart Card Connection Short Circuit Current Limitation 6KV ESD Protection on whole Smart Card Interface Connector : Friction Type with Smart Card presence detection 2 SAM (Security Application Module) ... -
Page 24: Inserting The Ic Card
WSP-R242 Rev. 1.0 ▶ Check the contact IC chip and the card in the direction of the arrow insert. http://www.woosim.com... -
Page 25: Communication Protocol Sequence
WSP-R242 Rev. 1.0 Host Command Module Execution Response 500ms timeout Host Command Command Command Module Command is Executio canceled Host Command Command Error Module CheckSumEr Executio http://www.woosim.com... -
Page 26: Using The Printer
WSP-R242 Rev. 1.0 BUTTON - FEED Button Use to feed paper continuously. - POWER Button : ① When of 5 or more seconds presses and power comes to on or off. ② After pressing the POWER and the FEED button simultaneously, if the ERROR lamp 5 turn signals POWER button is converted with MODE functions. -
Page 27: The Self Test
5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a screw driver. -
Page 28: Consumable Parts
WSP-R242 Rev. 1.0 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended. -
Page 29: Revision History
WSP-R242 Rev. 1.0 Date Version Comments Oct. 13. 2015 Initialize http://www.woosim.com...
