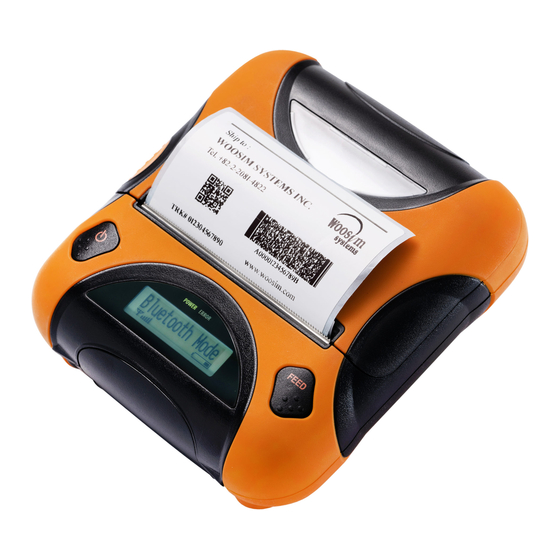

- Page 1 WSP-i350 MODEL (3inch Industrial Printer) WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com http://www.woosim.com...
-
Page 2: Copyright
Copyright ⓒ2009 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc. - Page 3 Introduction The WSP-i350 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-i350 printer are as follows: Pocket size (120×130.5×58.3mm) Light weight(520g) for true mobility...
-
Page 4: Operating Precautions
Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. ● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies. ● Do not use chemical glue. ● Always use the clean thermal paper. http://www.woosim.com... -
Page 5: Table Of Contents
3.4. Wireless LAN ......................... 20 3.4.1 wLAN SETTING ......................22 4. Using the printer.......................... 30 4.1. Control panel.......................... 30 4.2. The self test..........................31 5. Consumable Parts........................32 5.1. Recommended paper....................... 32 5.2. Printing position........................32 http://www.woosim.com... -
Page 6: Outline
WSP-i350 Model Interface None: UART/Bluetooth A2 : UART/IrDA Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Serial/Bluetooth Part No. ⇒ S40/A1 Example) 1. Porti-S40 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1... -
Page 7: Specifications
Input (100~250V AC, 50~60Hz) Battery charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating) Temperature -20°C ~ 60°C (storage) Environment conditions 30% - 80% (operating) Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF(Mean Cycle Between Failure) Head Approximately 50 Km http://www.woosim.com... -
Page 8: Setting Up The Printer
& & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Paper Roll WSP-i350 Battery Charger ▼ OPTIONAL Communication Cable Shoulder band http://www.woosim.com... -
Page 9: Printer Features
▶ Part Name http://www.woosim.com... - Page 10 ▶ Dimensions http://www.woosim.com...
-
Page 11: Replacing Paper Roll
2. Open the paper cover by placing your fingers under the paper cover lock and pull a paper cover lock open. 3. Insert a new paper roll as shown. 4. Tear the excess paper off using the edge of paper door as a tear bar. http://www.woosim.com... -
Page 12: Power Supply
Dispose of used batteries according to the instructions. ** BATTERY** ① To install battery pack, proceed as follows: - Insert the Battery pack in the direction of the arrow. ② Reverse the order to remove the battery pack. ** BELT STRAP** http://www.woosim.com... -
Page 13: Recharging The Battery Pack
The recharging time depends on the voltage level and ambient temperature of the battery. Normally, if takes about 4 to 5 hours to recharge a battery pack. ● You must use only the supplied adapter. ● Red Lamp : charging the battery. Green Lamp: charging is finished. http://www.woosim.com... -
Page 14: Set Operation Mode
(The data bit has set to 7 data bit.) Press FEED button one time. → You will see present PARITY BIT mode in the LCD. → Press POWER Button 2 times. (The parity bit has set to even parity bit.) http://www.woosim.com... - Page 15 The printer will print out the mode status which has modified. (Bluetooth/38,400 BPS/ 7 DATA BIT/Even Parity/ 2 STOP BIT / Density HIGH) If the status is not correct, please try it again according to the procedure. http://www.woosim.com...
- Page 16 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity Parity Bit Even Parity Odd Parity 1 Stop bit Stop Bit 2 Stop bit Density Low Density Density Medium Density High Quality High http://www.woosim.com...
- Page 17 POWER Lamp ERROR Lamp Option (Green) (Red) No use Mark Medium1 Sensor Medium2 High No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute http://www.woosim.com...
-
Page 18: Interface
The WSP-i350 printer has a RS-232C or TTL interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Direction Function... -
Page 19: Infrared Data Communication
The WSP-i350 has a serial interface for bi-directional data exchange. The infrared port is the right side of the front part. 1. To use the WSP-i350’s infrared port by a Computer or a Personal Digital Assistant (PDA) with IR port is required. -
Page 20: Bluetooth
Category Specification Network IEEE802.11b/g Interface Protocol TCP, UDP, IP, ICMP, ARP, DHCP, PPPoE DNS lookup, DDNS(Dynamic DNS), WEP TCP Server Mode Communication Mode TCP Client Mode TCP Server / Client (AT command emulation) http://www.woosim.com... - Page 21 Infrastrcture mode Ad-hoc Mode http://www.woosim.com...
-
Page 22: Wlan Setting
2. wLAN Manager program function 2.1. The selection of the wLAN Manager Program operating mode You can select wLAN Manager program operating mode using [LOCAL] or [REMOTE] and Serial. Following is the screen shot of WSwLAN_Manager which is just launched. http://www.woosim.com... - Page 23 2.2. Select Serial from the Menu Connection (default : Serial) 1) Click “Open” button after serial communication config. 2) Click “Get Info” button. 3) Complete setting and click “Set Info” button. http://www.woosim.com...
- Page 24 2.3. Select TCP/IP from the Menu Connection 1) Local Mode ① Remove serial cable in printer ② Click “Search” button ③ Click Searched MAC Address. ④ Complete setting and click “Set Info” button. http://www.woosim.com...
- Page 25 2) Remote Mode ① Remove serial cable in printer. ② Select “Remote” mode and Input after confirm allocated IP Address in printer LCD. ③ Complete setting and click “Set Info” Button. http://www.woosim.com...
- Page 26 (AT command emulation) TCP / IP In case mux_type is COD-TCP Client and you choose cod_listen WSP-i350 works under TCP server. COD Listen In this case, the data is set up in Local_port is used for the standby Server Port Data size before TCP connection.
- Page 27 If this check box is not activated, the IP address designated in the [DNS IP Address] will be used as the DNS server address. Set User Class ID ( DHCP option77 ) User Class ID Default Format : Ptr-<Mac Address> http://www.woosim.com...
- Page 28 WLAN Mode Network type to connect. ( Infrastructure / Ad-hoc ) SSID to connect (Maximum 32 bytes) SSID Default value : woosim Channel number for ad-hoc Channel (The channel number will be random in some case.) 4) WLAN Security Group ①...
- Page 29 3) Select a WEP key length – [64 Bits] / [128 bits] 4) Select a key index to use – [Key1] / [Key2] / [Key3] / [Key4] 5) Select key format to input – [HEX] / [ASCII] 6) Input the Key. The following is an example. http://www.woosim.com...
-
Page 30: Using The Printer
(Refer to 2.5. Set operation mode for details about mode conversion) Panel lamp -POWER (Green) : Printer is ON and ready to receive data. -ERROR (Red) : Indicated a fault condition or a printer error. (i.e : no paper, paper cover opened. etc.) http://www.woosim.com... -
Page 31: The Self Test
ROM version and the communication method setting. 3) After printing the current printer status, Self-Test will print a pattern using the built-in character set. 4) The Self-Test automatically ends. The printer is ready to receive data as soon as it completed the self test. http://www.woosim.com... -
Page 32: Consumable Parts
2. Chemicals or oil may change the color of paper, or printed Characters may fade. 3. Change of paper color starts from approx 70 ℃. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc http://www.woosim.com... - Page 33 ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ㆍConsult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules. http://www.woosim.com...
- Page 34 This Device has been evaluated to comply with RF exposure requirement for general use limit in portable condition. It is safe to be used in sold condition. http://www.woosim.com...
