WOOSIM WSP-R350 Operator's Manual

3inch mobile printer
Hide thumbs Also See for WSP-R350:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
WSP-R350
MODEL
(3inch Mobile Printer)
Rev. 1.5
All specifications are subjected to change without notice.
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSP-R350 and is the answer not in the manual?

Questions and answers

Related Manuals for WOOSIM WSP-R350

Summary of Contents for WOOSIM WSP-R350

  • Page 1 WSP-R350 MODEL (3inch Mobile Printer) Rev. 1.5 All specifications are subjected to change without notice. http://www.woosim.com...
  • Page 2 Copyright ⓒ2017 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.

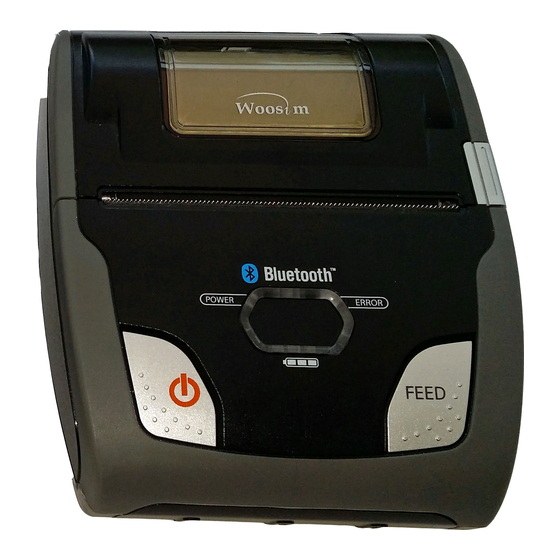

  • Page 3 WSP-R350 Rev. 1.5  Introduction The WSP-R350 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-R350 printer are as follows: Pocket size (108.5 X 134.8 X 56.5mm) ...
  • Page 4 WSP-R350 Rev. 1.5  Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer  ● Be careful not to drop or bump the printer on a hard surface. ●...
  • Page 5 WSP-R350 Rev. 1.5 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-R350 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Table Of Contents

    WSP-R350 Rev. 1.5 CONTENTS 1. Outline ................................. 7 1.1. Model classifications ..........................7 1.2 Symbol ................................7 1.3. Product Part Number System ........................8 1.4. Specifications............................... 9 2. Setting up the printer ............................11 2.1. Printer & Accessories ..........................11 2.2.

  • Page 7: Outline

    WSP-R350 Rev. 1.5 WSP-R350 Model Interface A1:UART/Bluetooth C1:USB/Bluetooth Power None : DC 8.4V Standby symbol IEC 5009, the standby symbol(line partially within a broken circle), Indicates a sleep mode or low power state. Direct current symbol This symbol is found on many electronic devices that either require or produce direct current.

  • Page 8: Product Part Number System

    WSP-R350 Rev. 1.5 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.

  • Page 9: Specifications

    WSP-R350 Rev. 1.5 Item Specification Printing method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 48cpl / Font B : 64cpl / Font C : 72cpl...
  • Page 10 WSP-R350 Rev. 1.5 Item Specification (Continue…) Battery Rechargeable 7.4V DC, 2200mAh (Li-ion) Battery duration 1 hour continuous printing Input (100~240V AC 50~60Hz) Battery Charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment Conditions...

  • Page 11: Setting Up The Printer

    WSP-R350 Rev. 1.5 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal roll paper Belt Clip Battery Pack WSP-R350 Communication cable Battery charger adaptor ▼ OPTIONAL Car charger http://www.woosim.com...

  • Page 12: Printer Features

    WSP-R350 Rev. 1.5 ▶ Part Name [option] http://www.woosim.com...

  • Page 13: Dimensions

    WSP-R350 Rev. 1.5 ▶ Standard Model ▶ MSR Model http://www.woosim.com...

  • Page 14: Replacing The Paper Roll

    WSP-R350 Rev. 1.5 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 15: Power Supply

    WSP-R350 Rev. 1.5 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. Warning : ● Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 16: Recharging The Battery

    WSP-R350 Rev. 1.5 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. ● While charging the printer, turn off the printer power. NOTE : ● Do not remove the battery during charging.

  • Page 17: Set Operation Mode

    WSP-R350 Rev. 1.5 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer to Table 2)  POWER button : use for changing OPTION status.
  • Page 18 WSP-R350 Rev. 1.5 [Example] The defaults of the printer are : USB / 9600 bps / 8 data bit / No parity / 1 stop bit / Density low / Mark no use / Sensor low / Power down 5 minute...
  • Page 19 WSP-R350 Rev. 1.5 When you press FEED Button once again, Power Lamp flickers 7 times  Error Lamp flickers twice.  Press POWER Button once, Error Lamp flickers once And then the mark has set to Mark no use. When you press FEED Button once again,...
  • Page 20 WSP-R350 Rev. 1.5 ERROR Lamp POWER Lamp MODE Option (Green) (Red) RS-232C USB(Pro) RS-232C(Pro) Communication Bluetooth Port Bluetooth(Pro) Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity...

  • Page 21: Interface

    WSP-R350 Rev. 1.5 (Fig.3.1) The WSP-R350 printer has a UART(RS-232C or TTL) or USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ①...

  • Page 22: Bluetooth

    WSP-R350 Rev. 1.5 Category Specification Bluetooth Spec. Bluetooth Ver3.0 / Class2 (10m) Frequency band 2402~2480 MHz Protocol L2CAP, RFCOMM, SDP Profile GAP, SDAP, SPP ▶ Check the direction of the magnetic stripe and read the card. ▶ Holding the card as shown above, please pass at a steady speed (check the direction of the arrow).

  • Page 23: Using The Printer

    WSP-R350 Rev. 1.5 (Fig.4.1) Button  FEED Button : Use feed button to feed the paper continuously. - POWER Button : This button is used to power on/off. When of 5 or more seconds presses and power comes to on or off.

  • Page 24: The Self Test

    5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a screwdriver.

  • Page 25: Consumable Parts

    WSP-R350 Rev. 1.5 Type : Thermal Paper Paper width : 80mm Paper thickness : 60±5㎛ Outer diameter : Ø50mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended.

  • Page 26: Revision History

    WSP-R350 Rev. 1.5 Date Version Comments Oct. 20. 2014 Initialize p3,7,24 Bluetooth spec. update : Ver2.1+ EDR → Ver3.0+ EDR Jul. 15. 2015 p8,14 Dimension(MSR) modify Mode setting modify(Android or iOS) p3,8 Print speed modify Sep. 21. 2015 : 80 → 120mm/sec...
