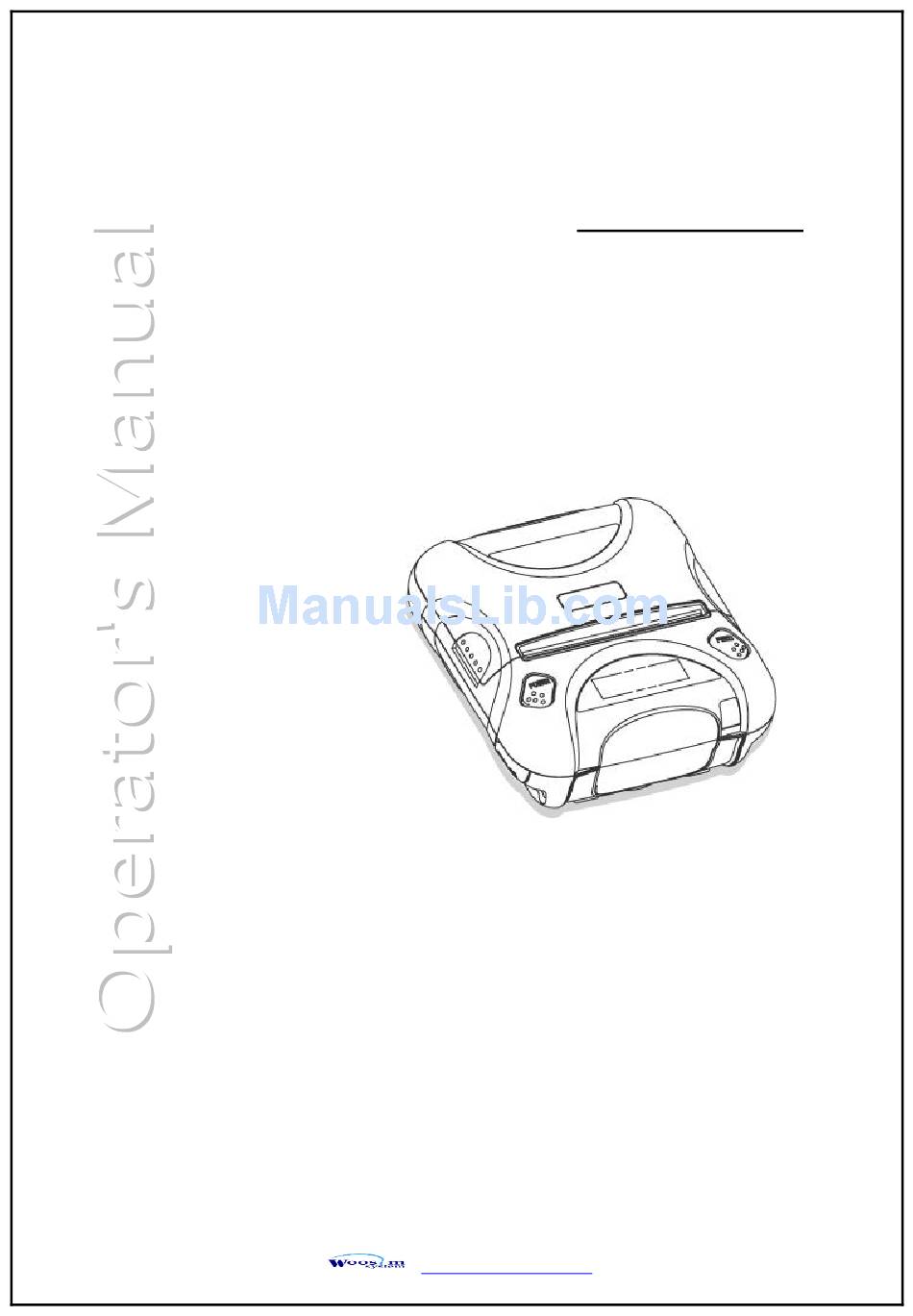

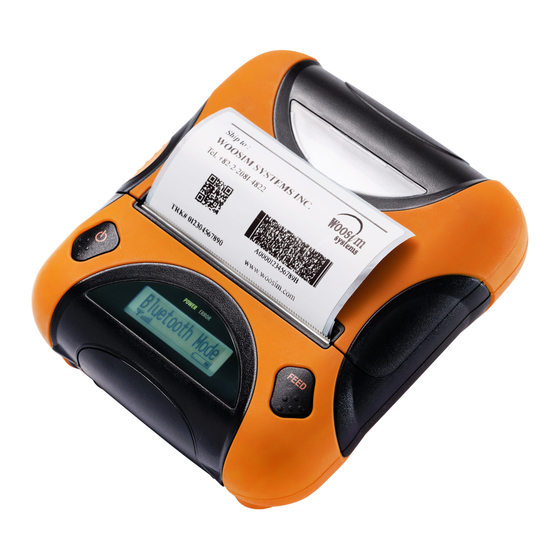

  • Page 1 WSP-i350 MODEL (3inch Rugged Mobile Printer) Rev. 4.3 All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 Copyright ⓒ2017 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.  Trademark a registered trademark of Woosim Systems Inc.
  • Page 3 WSP-i350 Rev. 4.3  Introduction The WSP-i350 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-i350 printer are as follows: Compact size (120×130.5×58.4mm) ...

  • Page 4: Operating Precautions

    WSP-i350 Rev. 4.3  Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer  ● Be careful not to drop or bump the printer on a hard surface. ●...
  • Page 5 WSP-i350 Rev. 4.3 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-I350X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Table Of Contents

    WSP-i350 Rev. 4.3 CONTENTS 1. Outline................................. 7 1.1. Model classifications..........................7 1.2 Symbol................................. 7 1.3 Product Part Number System ........................8 1.4. Specifications............................. 9 2. Setting up the printer ............................11 2.1. Printer & Accessories ..........................11 2.2. Printer Features ............................12 2.3.

  • Page 7: Outline

    WSP-i350 Rev. 4.3 WSP-i350 Model Interface A1 : UART/Bluetooth (Standard) Power None : DC 8.4V Standby symbol IEC 5009, the standby symbol(line partially within a broken circle), Indicates a sleep mode or low power state. Direct current symbol This symbol is found on many electronic devices that either require or produce direct current.

  • Page 8: Product Part Number System

    WSP-i350 Rev. 4.3 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.

  • Page 9: Specifications

    WSP-i350 Rev. 4.3 Item Specifications Print method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 48cpl / Font B : 64cpl / Font C : 72cpl...
  • Page 10 WSP-i350 Rev. 4.3 Item Specifications -15°C ~ 50°C (operating) Temperature Environment -15°C ~ 70°C (storage) conditions Humidity 10% - 90% (operating) MCBF(Mean Cycle Mechanical 37,000,000 lines Between Failure) Head ≥ 100Km < Table 1 > http://www.woosim.com...

  • Page 11: Setting Up The Printer

    WSP-i350 Rev. 4.3 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Communication cable Thermal roll paper WSP-i350 Battery charger adaptor Belt clip Battery Pack ▼ OPTIONAL...

  • Page 12: Printer Features

    WSP-i350 Rev. 4.3 Standard model MSR model http://www.woosim.com...

  • Page 13: Dimensions

    WSP-i350 Rev. 4.3 ▶ Standard model 58.4 130.5 http://www.woosim.com...
  • Page 14 WSP-i350 Rev. 4.3 ▶ MSR model 58.4 132.5 http://www.woosim.com...

  • Page 15: Replacing Paper Roll

    WSP-i350 Rev. 4.3 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 16: Power Supply

    WSP-i350 Rev. 4.3 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. Warning : ● Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 17: Recharging The Battery Pack

    WSP-i350 Rev. 4.3 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. NOTE : ● While charging the printer, turn off the printer power. ● Do not remove the battery during charging.

  • Page 18: Set Operation Mode

    WSP-i350 Rev. 4.3 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) ** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change the printer mode.
  • Page 19 WSP-i350 Rev. 4.3  FEED button : changing Printer MODE status.  POWER button : changing OPTION status. [Example] The defaults of the printer are : UART / 9600 bps / 8 data bit / No parity /1 stop bit / Density low /...
  • Page 20 WSP-i350 Rev. 4.3 When you press FEED button once.   You will see present MARK mode in the LCD. ( Use)  Press POWER Button once. And then the mark has set to Mark no use. When you press FEED button once.
  • Page 21 WSP-i350 Rev. 4.3 OPTION MODE Bluetooth WLAN UART UART Protocol UART Protocol UART Communication Bluetooth WLAN Port Protocol Bluetooth Protocol WLAN Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit...

  • Page 22: Confirmation Of The Wireless-Lan Information

    DNS sever IP on LCD is indicated in pressing the Power button once again  ※ Since the configuration of Wireless LAN can not be done with the printer in person, you are required to use the Wireless LAN-setting program which WOOSIM offers. http://www.woosim.com...

  • Page 23: Interface

    WSP-i350 Rev. 4.3 The WSP-i350 printer has a UART(RS-232C or TTL) or USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ①...

  • Page 24: Bluetooth

    WSP-i350 Rev. 4.3 Category Specification Bluetooth Spec. Bluetooth Ver3.0 / Class2 (10m) Frequency band 2402~2480㎒ Protocol L2CAP, RFCOMM, SDP Profile GAP, SDAP, SPP Category Specification Function Radio frequency transfer Module (IEEE802.11b/g/n standard conformity) Frequency band 2.4GHz Channel 1 to 13 channel...

  • Page 25: Using The Printer

    WSP-i350 Rev. 4.3  BUTTON - FEED Button : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - POWER Button: ① When of 5 or more seconds presses and power comes to on or off.

  • Page 26: The Self Test

    4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Please sling it over your shoulder after fixing the shoulder strap to the printer in the order of the illustration.

  • Page 27: Using The Belt Clip

    WSP-i350 Rev. 4.3 Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a screw driver. Afterward, you can use it like the picture below...

  • Page 28: Consumable Parts

    WSP-i350 Rev. 4.3 Type : Thermal Paper Paper width : 80mm Paper thickness : 0.06 mm – 0.12 mm Outer diameter : Ø50mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended.

  • Page 29: Revision History

    WSP-i350 Rev. 4.3 Date Version Comments ** IrDA spec. delete p3,9,25 : WLAN spec. update p19,20 : Set operation mode method modify Oct. 21. 2014 : UART Pin spec modify : Add contents of the note : 6. Revision History Add Mar.
