Summary of Contents for WOOSIM WSP-R350

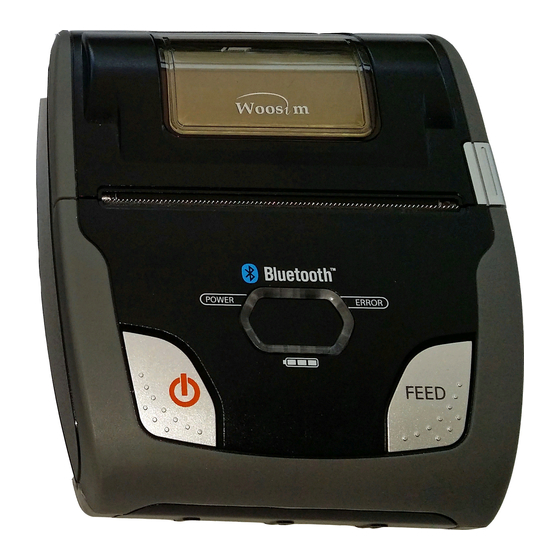

  • Page 1 WSP-R350 MODEL (3inch Mobile Printer) Rev. 1.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com http://www.woosim.com...
  • Page 2 Copyright ⓒ2014 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 WSP-R350 Rev. 1.0  Introduction The WSP-R350 is suitable designed for use with a growing variety of mobile devices. Bluetooth/Serial interfaces make the WSP-R350 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.
  • Page 4 WSP-R350 Rev. 1.0  Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer  ● Be careful not to drop or bump the printer on a hard surface. ●...
  • Page 5 WSP-R350 Rev. 1.0 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-R350 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6: Table Of Contents

    WSP-R350 Rev. 1.0 CONTENTS 1. Specifications ..........................7 2. Setting up the printer .......................9 2.1. Printer & Accessories ....................9 2.2. Printer Features ......................10 2.3. Dimensions ......................... 12 2.4. Replacing the paper roll ................... 14 2.5. Power supply ......................16 2.5.1.
  • Page 7: Specifications

    WSP-R350 Rev. 1.0 Item Specification Printing method Direct thermal line printing Characters per line 64cpl (MAX) Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Optional Characters Japanese, Persian, Latin9 and Others upon request.
  • Page 8 WSP-R350 Rev. 1.0 Item Specification Input (100~250V AC 50~60Hz) Battery Charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment Conditions 30% - 80% (operating) Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF (Mean Cycle...
  • Page 9: Setting Up The Printer

    WSP-R350 Rev. 1.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal roll paper Battery Pack WSP-R350 Belt Clip Battery charger adaptor Communication cable ▼ OPTIONAL Car charger http://www.woosim.com...
  • Page 10: Printer Features

    WSP-R350 Rev. 1.0 ▶ Part Name STANDARD Model MSR Model http://www.woosim.com...
  • Page 11 WSP-R350 Rev. 1.0 http://www.woosim.com...
  • Page 12: Dimensions

    WSP-R350 Rev. 1.0 ▶ Standard Model http://www.woosim.com...
  • Page 13 WSP-R350 Rev. 1.0 ▶ MSR Model http://www.woosim.com...
  • Page 14: Replacing The Paper Roll

    WSP-R350 Rev. 1.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.
  • Page 15 WSP-R350 Rev. 1.0 5. To change paper width, move paper guide while pressing paper width change button as shown in the picture. http://www.woosim.com...
  • Page 16: Power Supply

    WSP-R350 Rev. 1.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF.
  • Page 17: Recharging The Battery

    WSP-R350 Rev. 1.0 For recharging the battery pack, install the battery pack in the printer. NOTE : ● While charging the printer, turn off the printer power. ● Do not remove the battery during charging. ● The battery is consumable parts and when purchasing, compared to the use hour is gradually decreases.
  • Page 18: Set Operation Mode

    WSP-R350 Rev. 1.0 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer to Table 2) ** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change the printer mode.
  • Page 19 WSP-R350 Rev. 1.0  POWER button : use for changing OPTION status. (Error Lamp)  FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are : RS-232C / 9600 bps / 8 data bit / No parity / 1 stop bit / Density low...
  • Page 20 WSP-R350 Rev. 1.0 When you press FEED Button once again, Power Lamp flickers 5 times  Error Lamp flickers once.  Press POWER Button once, Error Lamp flickers twice. And then the density has set to 2 stop bit. When you press FEED Button once again,...
  • Page 21 WSP-R350 Rev. 1.0 POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART Protocol UART Communication Bluetooth Port Protocol Bluetooth Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit...
  • Page 22 WSP-R350 Rev. 1.0 ERROR Lamp POWER Lamp MODE Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad Whole aspect.
  • Page 23: Interface

    WSP-R350 Rev. 1.0 (Fig.3.1) The WSP-R350 printer has a UART(RS-232C or TTL) interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ① UART(RS-232C)
  • Page 24: Bluetooth

    WSP-R350 Rev. 1.0 Category Specification Bluetooth Spec. Bluetooth Ver2.1 +EDR / Class2 (10m) Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.
  • Page 25: Using The Printer

    WSP-R350 Rev. 1.0 (Fig.4.1) Button  FEED Button: When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. POWER Button: ① When of 5 or more seconds presses and power comes to on or off.
  • Page 26: The Self Test

    3. Printer will print out the current status. (ROM version and communication mode) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. http://www.woosim.com...
  • Page 27: Using The Belt Clip

    WSP-R350 Rev. 1.0 Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a coin. Afterward, you can use it like the picture below...
  • Page 28: Consumable Parts

    WSP-R350 Rev. 1.0 Type : Thermal Paper Paper width : 72mm Paper thickness : 60±5㎛ Outer diameter : Ø50mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended.
  • Page 29: Revision History

    WSP-R350 Rev. 1.0 Date Version Comments Aug. 13. 2014 Initialize http://www.woosim.com...
