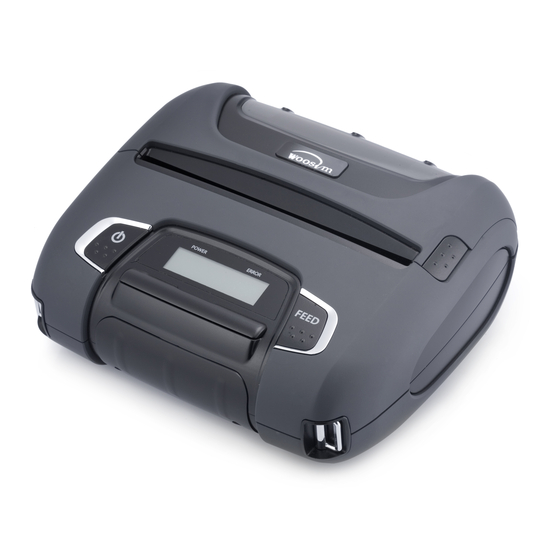

  • Page 1 WSP-i450 MODEL (4inch Rugged Mobile Printer) Rev. 6.2 WOOSIM SYSTEMS Inc. (#501, Daerung Technotown 3th) 115, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-772 Rep. of KOREA Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice...
  • Page 2 Copyright ⓒ2016 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 WSP-i450 Rev. 6.2  Introduction The WSP-i450 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-i450 printer are as follows: Compact size (150.9×136.4×63.3mm) ...

  • Page 4: Operating Precautions

    WSP-i450 Rev. 6.2  Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer  ● Be careful not to drop or bump the printer on a hard surface. ●...

  • Page 5: Federal Communications Commission

    WSP-i450 Rev. 6.2 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-I450R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Table Of Contents

    WSP-i450 Rev. 6.2 CONTENTS 1. Outline............................8 1.1. Model classifications......................8 1.2 Product Part Number System ..................8 1.3. Specifications........................9 2. Setting up the printer......................11 2.1. Printer & Accessories ..................... 11 2.2. Printer Features ....................... 12 2.3. Dimensions ........................13 2.4.
  • Page 7 WSP-i450 Rev. 6.2 5.1. Control panel........................28 5.2. The self test ........................29 5.3. Using the Accessory ....................... 29 5.3.1. Using the Shoulder strap..................29 5.3.2. Using the Belt clip ....................30 6. Consumable Parts........................31 6.1. Recommended paper..................... 31 6.2.

  • Page 8: Outline

    WSP-i450 Rev. 6.2 WSP-i450 Model Interface A1 : UART/Bluetooth (Standard) Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.

  • Page 9: Specifications

    WSP-i450 Rev. 6.2 Item Specifications Print method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 69cpl / Font B : 92cpl / Font C : 104cpl...
  • Page 10 WSP-i450 Rev. 6.2 Item Specifications Triple tracks (1&2&3 Tracks Reading) MSR [option] *Supports 3DES & AES encryption Smart Card Module ISO 7816 Compliant [EMV Level 1/2 Certified] / [option] T=0, T=1 support 1 SAM [Security Application module] 128×32 Dots FSTN (Blue LED Backlight) Battery Rechargeable 7.4V DC, 2200mAh (Li-ion)

  • Page 11: Setting Up The Printer

    WSP-i450 Rev. 6.2 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Communication cable Battery charger adaptor WSP-i450 Thermal roll paper Battery Pack Belt clip ▼ OPTIONAL...

  • Page 12: Printer Features

    WSP-i450 Rev. 6.2 ▶ Part Name Standard model MSR model http://www.woosim.com...

  • Page 13: Dimensions

    WSP-i450 Rev. 6.2 ▶ Standard Model 136.4 http://www.woosim.com...
  • Page 14 WSP-i450 Rev. 6.2 ▶ MSR Model 143.2 http://www.woosim.com...

  • Page 15: Replacing Paper Roll

    WSP-i450 Rev. 6.2 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 16: Power Supply

    WSP-i450 Rev. 6.2 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A high. Avoid using power supply which its power capacity of power current is extremely NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 17: Recharging The Battery Pack

    WSP-i450 Rev. 6.2 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. Insert the Battery charger adaptor to the charge connector of the External Battery Cradle.

  • Page 18: Set Operation Mode

    WSP-i450 Rev. 6.2 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) ** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change the printer mode.
  • Page 19 WSP-i450 Rev. 6.2  FEED button : changing Printer MODE status. (Power Lamp)  POWER button : changing OPTION status. (Error Lamp) [Example] The defaults of the printer are : UART : 9600 bps : 8 data bit : No parity : 1 stop bit : Density low :...

  • Page 20: Gap/Hole Sensor Setting

    WSP-i450 Rev. 6.2 When you press FEED button once.   You will see present Quality mode in the LCD. (Low)  Press POWER Button once. And then the quality has set to Quality high. When you press FEED button once.
  • Page 21 WSP-i450 Rev. 6.2 OPTION MODE Bluetooth WLAN UART(RS-232C) UART(RS-232C) Protocol UART Protocol UART (RS-232C) (RS-232C) Communication Port Bluetooth WLAN Protocol Bluetooth Protocol WLAN Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit...
  • Page 22 WSP-i450 Rev. 6.2 MODE OPTION Medium1 Sensor Medium2 High NO USE 1min Sleep 2min Sleep 3min Sleep 4min Sleep Power Down 5min Sleep 1min Off 2min Off 3min Off 4min Off 5min Off < Table 2 > Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad Whole aspect.

  • Page 23: Confirmation Of The Wireless-Lan Information

    WSP-i450 Rev. 6.2 MAC address which is set to the printer can be printed out in pressing the Power  and Feed button simultaneously and taking off them shortly after the ERROR lamp blinks 2 times Press the Power button in the printer turning on ...

  • Page 24: Interface

    WSP-i450 Rev. 6.2 & & The WSP-i450 printer has a UART(RS-232C or TTL) & USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ①...

  • Page 25: Bluetooth

    WSP-i450 Rev. 6.2 Category Specification Bluetooth Spec. Bluetooth Ver3.0 / Class2 (10m) Frequency band 2402~2480㎒ Protocol L2CAP, RFCOMM, SDP Profile GAP, SDAP, SPP Category Specification Function Radio frequency transfer Module (IEEE802.11b/g/n standard conformity) Frequency band 2.4GHz Channel 1 to 13 channel...

  • Page 26: Smart Card Module

    WSP-i450 Rev. 6.2 Contact Smart Card Reader Module for ISO/IEC-7816  Support Asynchronous Protocol T=0,T=1  Smart Card Connection  Short Circuit Current Limitation 6KV ESD Protection on whole Smart Card Interface Connector : Friction Type with Smart Card presence detection 1 SAM (Security Application Module) ...

  • Page 27: Communication Protocol Sequence

    WSP-i450 Rev. 6.2 Host Command Module Execution Response 500ms timeout Host Command Command Command Module Command is Executio canceled Host Command Command Error Module CheckSumEr Executio http://www.woosim.com...

  • Page 28: Using The Printer

    WSP-i450 Rev. 6.2  BUTTON - FEED Button : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - POWER Button: ① When of 5 or more seconds presses and power comes to on or off.

  • Page 29: The Self Test

    5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Please sling it over your shoulder after fixing the shoulder strap to the printer in the order of the illustration.

  • Page 30: Using The Belt Clip

    WSP-i450 Rev. 6.2 Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a coin. Afterward, you can use it like the picture below.

  • Page 31: Consumable Parts

    WSP-i450 Rev. 6.2 Type : Thermal Paper Paper width : 113mm Paper thickness : 60±5㎛ Outer diameter : Ø50mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended.

  • Page 32: Revision History

    WSP-i450 Rev. 6.2 Date Version Comments Dec. 24. 2010 2.2 Part Name additional (Sensor) Feb 17. 2011 2.6.1 GAP/HOLE SENSOR SETTING additional * 4inch Industrial Printer → Rugged mobile printer P3 : Agency Approvals of the image update  Aug. 10. 2012...
