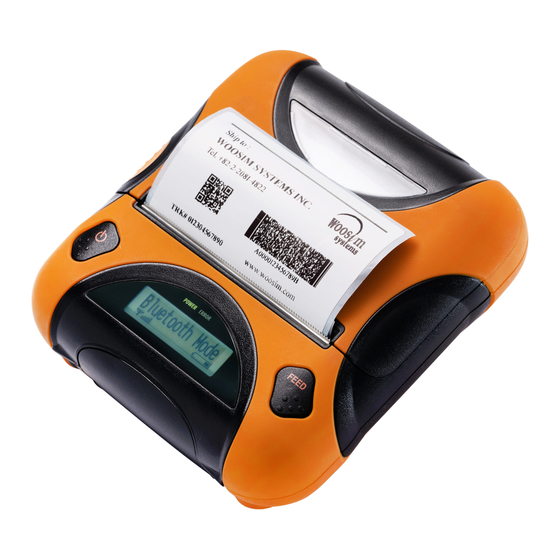

WOOSIM WSP-i350 Operator's Manual

3inch industrial printer
Hide thumbs Also See for WSP-i350:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
MODEL
All specifications are subjected to change without notice
http://www.woosim.com
WSP-i350
(3inch Industrial Printer)
Rev. 3.0
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL:
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSP-i350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WOOSIM WSP-i350

Summary of Contents for WOOSIM WSP-i350

  • Page 1 WSP-i350 MODEL (3inch Industrial Printer) Rev. 3.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 WSP-i350 3inch Industrial printer operator’s manual. Copyright ⓒ2010 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 WSP-i350 Rev. 3.0 ¦ Introduction The WSP-i350 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-i350 printer are as follows: Compact size (120×130.5×58.3mm)

  • Page 4: Operating Precautions

    WSP-i350 Rev. 3.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas.
  • Page 5 WSP-i350 Rev. 3.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    WSP-i350 Rev. 3.0 CONTENTS 1. Outline............................8 1.1. Model classifications......................8 1.2 Product Part Number System ..................8 1.3. Specifications........................9 2. Setting up the printer......................11 2.1. Printer & Accessories ..................... 11 2.2. Printer Features .......................12 2.3. Dimensions ........................13 2.4. Replacing paper roll......................14 2.5.
  • Page 7 WSP-i350 Rev. 3.0 5.1. Recommended paper.....................28 5.2. Printing position......................28 http://www.woosim.com...

  • Page 8: Outline

    WSP-i350 Rev. 3.0 WSP-i350 Model Interface A1 : UART/Bluetooth (Standard) Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1...

  • Page 9: Specifications

    WSP-i350 Rev. 3.0 Item Specifications Print method Direct thermal line printing Characters per line 64cpl (MAX) Character size Eng: 9*24dots, 12*24dots Kor: 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Optional Tukish, Greek, Japanese, Persian, Latin9 and Characters Others upon request.
  • Page 10 WSP-i350 Rev. 3.0 Item Specifications Battery duration 1 hour continuous printing Input (100~250V AC, 50~60Hz) Battery charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment conditions 30% - 80% (operating) Humidity 10% - 90% (storage)

  • Page 11: Setting Up The Printer

    WSP-i350 Rev. 3.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Communication cable Thermal roll paper WSP-i350 Battery charger adaptor Battery Pack Belt clip ▼ OPTIONAL Shoulder strap http://www.woosim.com...

  • Page 12: Printer Features

    WSP-i350 Rev. 3.0 ▶ Part Name http://www.woosim.com...

  • Page 13: Dimensions

    WSP-i350 Rev. 3.0 http://www.woosim.com...

  • Page 14: Replacing Paper Roll

    WSP-i350 Rev. 3.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 15: Power Supply

    WSP-i350 Rev. 3.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A high. Avoid using power supply which its power capacity of power current is extremely NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 16: Recharging The Battery Pack

    WSP-i350 Rev. 3.0 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. NOTE : ● While charging the printer, turn off the printer power. ● Do not remove the battery during charging.

  • Page 17: Set Operation Mode

    WSP-i350 Rev. 3.0 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) l FEED button : changing Printer MODE status.
  • Page 18 WSP-i350 Rev. 3.0 When you press FEED button once. ® You will see present DENSITY mode in the LCD. (Density low) ® Press POWER Button twice. And then the density has set to Density high. When you press FEED button once.
  • Page 19 WSP-i350 Rev. 3.0 OPTION MODE IrDA Bluetooth WLAN UART(RS-232C) UART(RS-232C) UART(RS-232C) Protocol UART Protocol UART Protocol UART (RS-232C) (RS-232C) (RS-232C) Communication WLAN Raw IrDA Bluetooth Port Protocol Protocol IrDA Protocol WLAN Bluetooth Standard IrDA 9600 bps 19200 bps Baud Rate...

  • Page 20: Confirmation Of The Wireless-Lan Information

    WSP-i350 Rev. 3.0 MODE OPTION Medium1 Sensor Medium2 High No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > MAC address which is set to the printer can be printed out in pressing the Power...

  • Page 21: Interface

    WSP-i350 Rev. 3.0 & & The WSP-i350 printer has a UART(RS-232C or TTL) & USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ①...
  • Page 22 WSP-i350 Rev. 3.0 ② USB Pin No. Name Function DATA “-” DATA “+” Ground NOTE : ● When data receiving, when it removes the Communication cable, it loses a data. http://www.woosim.com...

  • Page 23: Infrared Data Communication

    WSP-i350 Rev. 3.0 The WSP-i350 has a serial interface for bi-directional data exchange. The infrared port is the right side of the front part. 1. To use the WSP-i350’s infrared port by a Computer or a Personal Digital Assistant (PDA) with IR port is required.

  • Page 24: Bluetooth

    WSP-i350 Rev. 3.0 Category Specification Bluetooth Spec. Bluetooth Ver2.1 + EDR / Class2 (10m) Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.

  • Page 25: Using The Printer

    WSP-i350 Rev. 3.0 u BUTTON - FEED Button : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - POWER Button: ① When of 5 or more seconds presses and power comes to on or off.

  • Page 26: The Self Test

    WSP-i350 Rev. 3.0 The self test procedure will check most of the printer functions. For self test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly.

  • Page 27: Using The Belt Clip

    WSP-i350 Rev. 3.0 Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a coin. Afterward, you can use it like the picture below...

  • Page 28: Consumable Parts

    WSP-i350 Rev. 3.0 Type : Thermal Paper Paper width : 80mm Paper thickness : 60±5㎛ Outer diameter : Ø50mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended.
