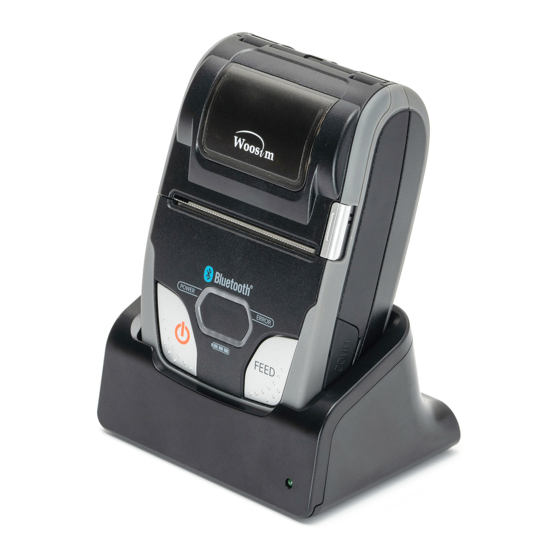

  • Page 1 WSP-R240 MODEL (2inch Mobile Printer) Rev. 2.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 WSP-R240 2inch mobile printer operator’s manual. Copyright ⓒ2011 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 WSP-R240 Rev. 2.0  Introduction The WSP-R240 is suitable designed for use with a growing variety of mobile devices. Bluetooth/Serial interfaces make the WSP-R240 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.

  • Page 4: Operating Precautions

    WSP-R240 Rev. 2.0  Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer  ● Be careful not to drop or bump the printer on a hard surface. ●...
  • Page 5 WSP-R240 Rev. 2.0  Note FCC ID : QDDWSP-R240 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    WSP-R240 Rev. 2.0 CONTENTS 1. Outline ............................7 1.1. Model classifications......................7 1.2. Product Part Number System...................7 1.3. Specifications........................8 2. Setting up the printer......................10 2.1. Printer & Accessories.......................10 2.2. Printer Features .........................11 2.3. Replacing the paper roll....................13 2.4. Power supply ........................14 2.4.1. Internal power supply.....................14 2.4.2.

  • Page 7: Outline

    WSP-R240 Rev. 2.0 WSP-R240 Model Interface A1:UART/Bluetooth Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.

  • Page 8: Specifications

    WSP-R240 Rev. 2.0 Item Specification Printing method Direct thermal line printing Characters per line 42cpl (MAX) Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Turkish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request.
  • Page 9 WSP-R240 Rev. 2.0 Item Specification -10°C ~ 50°C (operating) Temperature Environment -10°C ~ 70°C (storage) Conditions 30% - 80% (operating) Humidity 10% - 90% (storage) MCBF (Mean Cycle Mechanical 37,000,000 lines Between failure) Head Approximately 50 Km < Table 1 >...

  • Page 10: Setting Up The Printer

    WSP-R240 Rev. 2.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal roll paper Battery Pack WSP-R240 Battery charger adaptor Communication cable ▼ OPTIONAL External Battery Cradle Car charger http://www.woosim.com...

  • Page 11: Printer Features

    WSP-R240 Rev. 2.0 ▶ Part Name http://www.woosim.com...
  • Page 12 WSP-R240 Rev. 2.0 ▶ Dimensions http://www.woosim.com...

  • Page 13: Replacing The Paper Roll

    WSP-R240 Rev. 2.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 14: Power Supply

    WSP-R240 Rev. 2.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 15: Recharging The Battery

    WSP-R240 Rev. 2.0 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger or External Battery Cradle to the charge connector of the printer. NOTE : ● While charging the printer, turn off the printer power.

  • Page 16: Set Operation Mode

    WSP-R240 Rev. 2.0 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2)  POWER button : use for changing OPTION status.
  • Page 17 WSP-R240 Rev. 2.0 When you press FEED Button once again, Power Lamp flickers 5 times  Error Lamp flickers once.  Press POWER Button once, Error Lamp flickers twice. And then the density has set to 2 stop bit. When you press FEED Button once again,...
  • Page 18 WSP-R240 Rev. 2.0 ERROR Lamp POWER Lamp MODE Option (Green) (Red) UART(RS-232C) Communication Protocol UART(RS-232C) Port Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity...
  • Page 19 WSP-R240 Rev. 2.0 POWER Lamp ERROR Lamp MODE Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > http://www.woosim.com...

  • Page 20: Interface

    WSP-R240 Rev. 2.0 (Fig.3.1) The WSP-R240 printer has a UART(RS-232C or TTL) or USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ①...

  • Page 21: Bluetooth

    WSP-R240 Rev. 2.0 Category Specification Bluetooth Spec. Bluetooth Ver2.1 +EDR / Class2 (10m) Frequency Range 2.4GHz ISM BAND (2 402 ~ 2 480 MHz) RF POWER Below 10 dBm Modulation method GFSK, PSK Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed.

  • Page 22: Using The Printer

    WSP-R240 Rev. 2.0 (Fig.4.1) Button  FEED Button: When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. POWER Button: ① When of 5 or more seconds presses and power comes to on or off.

  • Page 23: The Self Test

    WSP-R240 Rev. 2.0 Panel lamp  - Power : Printer is ON and ready to receive data. (GREEN) - Error : Indicates a fault condition or a printer error. (RED) (i.e : no paper, paper cover opened. etc.) - Bluetooth : Indicates a Bluetooth connection status.

  • Page 24: Consumable Parts

    WSP-R240 Rev. 2.0 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended.

  • Page 25: Revision History

    WSP-R240 Rev. 2.0 Date Version Comments Mar. 03. 2011 Initialize May. 03. 2011 Weight Change http://www.woosim.com...
