- Page 1 WSP-R240 MODEL (2inch Mobile Printer) Rev. 6.3 All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 Copyright ⓒ2017 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc. Trademark a registered trademark of Woosim Systems Inc.

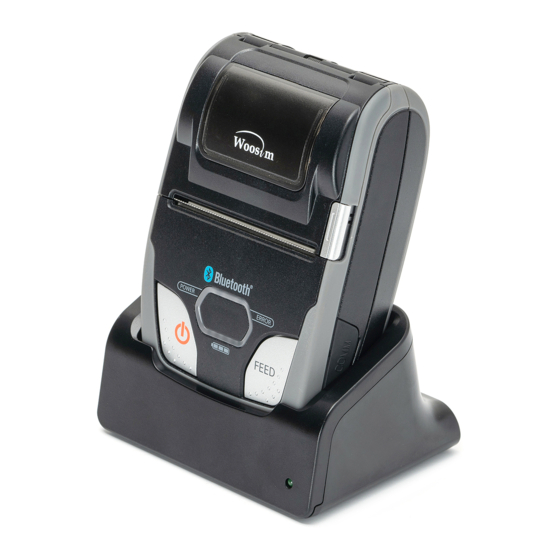

- Page 3 WSP-R240 Rev. 6.3 Introduction The WSP-R240 is suitable designed for use with a growing variety of mobile devices. Bluetooth/Serial interfaces make the WSP-R240 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.
- Page 4 WSP-R240 Rev. 6.3 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●...
- Page 5 WSP-R240 Rev. 6.3 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDDWSP-R240 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Table Of Contents
WSP-R240 Rev. 6.3 CONTENTS 1. Outline ................................. 7 1.1. Model classifications ..........................7 1.2 Symbol ................................7 1.3. Product Part Number System ........................8 1.4. Specifications............................... 9 2. Setting up the printer ............................11 2.1. Printer & Accessories ..........................11 2.2. -
Page 7: Outline
WSP-R240 Rev. 6.3 WSP-R240 Model Interface A1:UART/Bluetooth Power None : DC 8.4V Standby symbol IEC 5009, the standby symbol(line partially within a broken circle), Indicates a sleep mode or low power state. Direct current symbol This symbol is found on many electronic devices that either require or produce direct current. -
Page 8: Product Part Number System
WSP-R240 Rev. 6.3 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 9: Specifications
WSP-R240 Rev. 6.3 Item Specification Printing method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 32cpl / Font B : 42cpl / Font C : 48cpl... - Page 10 WSP-R240 Rev. 6.3 Item Specification Battery Rechargeable 7.4V DC , 1130mAh (Li-ion) Battery duration 1 hour continuous printing Input (100~250V AC 50~60Hz) Battery Charger Output(8.4VDC/0.8A), 4hours full charge time -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment Conditions...
-
Page 11: Setting Up The Printer
WSP-R240 Rev. 6.3 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Thermal roll paper Belt Clip WSP-R240 Communication cable Battery charger adaptor ▼ OPTIONAL... -
Page 12: Printer Features
WSP-R240 Rev. 6.3 ▶ Part Name None MSR Model MSR Model http://www.woosim.com... - Page 13 WSP-R240 Rev. 6.3 ▶ Dimensions [Unit : mm] None MSR Model MSR Model http://www.woosim.com...
-
Page 14: Replacing The Paper Roll
WSP-R240 Rev. 6.3 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 15: Power Supply
WSP-R240 Rev. 6.3 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. Warning : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 16: Recharging The Battery
WSP-R240 Rev. 6.3 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. Insert the Battery charger adaptor to the charge connector of the External Battery Cradle. -
Page 17: Set Operation Mode
WSP-R240 Rev. 6.3 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer to Table 2) ** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change the printer mode. - Page 18 WSP-R240 Rev. 6.3 POWER button : use for changing OPTION status. (Error Lamp) FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are : RS-232C / 9600 bps / 8 data bit / No parity / 1 stop bit / Density low / Mark use / Sensor low...
- Page 19 WSP-R240 Rev. 6.3 When you press FEED Button once again, Power Lamp flickers 7 times Error Lamp flickers twice. Press POWER Button once, Error Lamp flickers once And then the mark has set to Mark no use. When you press FEED Button once again,...
- Page 20 WSP-R240 Rev. 6.3 ERROR Lamp POWER Lamp MODE Option (Green) (Red) RS-232C RS-232C(Pro) Communication Bluetooth Port Bluetooth(Pro) Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity...
-
Page 21: Interface
WSP-R240 Rev. 6.3 (Fig.3.1) The WSP-R240 printer has a UART(RS-232C or TTL) interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. -
Page 22: Bluetooth
WSP-R240 Rev. 6.3 Category Specification Bluetooth Spec. Bluetooth Ver3.0 / Class2 (10m) Frequency band 2402~2480 MHz Protocol L2CAP, RFCOMM, SDP Profile GAP, SDAP, SPP ▶ Check the direction of the magnetic stripe and read the card. ▶ Holding the card as shown above, please pass at a steady speed (check the direction of the arrow). -
Page 23: Using The Printer
WSP-R240 Rev. 6.3 (Fig.4.1) Button FEED Button: When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. POWER Button: ① When of 5 or more seconds presses and power comes to on or off. -
Page 24: The Self Test
5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a screw driver. -
Page 25: Consumable Parts
WSP-R240 Rev. 6.3 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended. -
Page 26: Revision History
WSP-R240 Rev. 6.3 Date Version Comments Mar. 03. 2011 Initialize May. 03. 2011 Weight Change (215.3g -> 217g) p18 : Bluetooth(iAP) Mode option Added (only iPod, iPhone, iPad use) Jan. 20. 2012 Sensor option -> AUTO delete May. 10. 2012...
