- Page 1 WSP-W40 MODEL (4inch Mobile Printer) Rev. 3.2 All specifications are subjected to change without notice. http://www.woosim.com...
- Page 2 Copyright ⓒ2021 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.

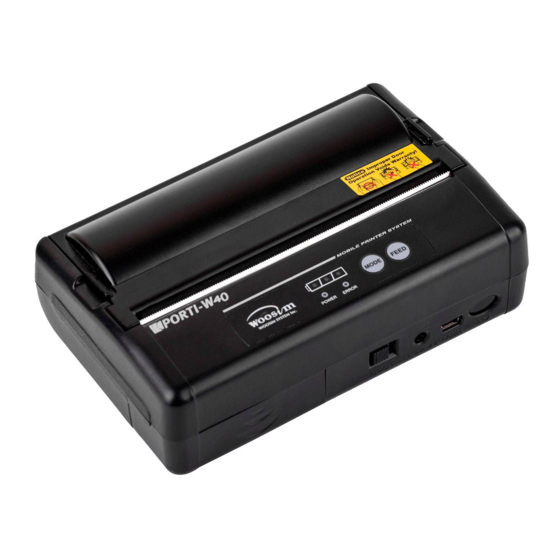

- Page 3 WSP-W40 Rev. 3.2 Introduction The PORTI-W40 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. WSP-W40 The general features of printer are as follows: Compact size (138.4 x 88.5 x 45.2mm) Light weight (281g) for true mobility.
- Page 4 WSP-W40 Rev. 3.2 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●...
- Page 5 WSP-W40 Rev. 3.2 Federal Communications Commission Radio Frequency Interference Statement FCC ID : QDD-WSPW40 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Table Of Contents
WSP-W40 Rev. 3.2 CONTENTS 1. Outline ..................................7 1.1. Model classifications ............................7 1.2 Symbol .................................. 7 1.3. Product Part Number System .......................... 8 1.4. Specifications..............................9 2. Setting up the printer ............................10 2.1. Printer & Accessories ............................10 2.2. -
Page 7: Outline
WSP-W40 Rev. 3.2 WSP-W40 ( Model Interface C1 : USB/Bluetooth Power None : DC 8.4V Standby symbol IEC 5009, the standby symbol(line partially within a broken circle), Indicates a sleep mode or low power state. Direct current symbol This symbol is found on many electronic devices that either require or produce direct current. -
Page 8: Product Part Number System
WSP-W40 Rev. 3.2 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 9: Specifications
WSP-W40 Rev. 3.2 Item Specification Printing method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 69cpl / Font B : 92cpl / Font C : 104cpl... -
Page 10: Setting Up The Printer
WSP-W40 Rev. 3.2 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Interface cable WSP-W40 Battery charger Thermal roll paper ▼ OPTIONAL External Battery Cradle... -
Page 11: Printer Features
WSP-W40 Rev. 3.2 http://www.woosim.com... -
Page 12: Replacing The Paper Roll
WSP-W40 Rev. 3.2 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 13: Power Supply
WSP-W40 Rev. 3.2 The following specification is requested for Power supply. Rated voltage : DC 8.4V / 0.8A Avoid using power supply which its power capacity of power current is extremely high. Warning : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 14: Recharging The Battery
WSP-W40 Rev. 3.2 For recharging the battery pack, install the battery pack in the printer or the External Battery Cradle. Insert the battery charger to the charge connector of the printer or the External Battery Cradle. ● While charging the printer, turn off the printer power. -
Page 15: Set Operation Mode
WSP-W40 Rev. 3.2 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer to Table 2) POWER button : use for changing OPTION status. - Page 16 WSP-W40 Rev. 3.2 Mode Option Etc. Mode Option Etc. No use USB(Pro) 1min Sleep Communi- cation Bluetooth 2min Sleep Port Bluetooth(Pro) 3min Sleep Bluetooth(iAP) 4min Sleep Power 5min Sleep Down Density Medium 1min Off High 2min Off No use 3min Off...
-
Page 17: Interface
WSP-W40 Rev. 3.2 (Fig.3.1) The WSP-W40 printer has a USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Function DATA “-”... -
Page 18: Using The Printer
3. Printer will print out the current status. (F/W version and set contents) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. http://www.woosim.com... -
Page 19: Consumable Parts
WSP-W40 Rev. 3.2 Type : Thermal Paper Paper width : 113mm Paper thickness : 60±5㎛ Outer diameter : Ø38mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended. -
Page 20: Revision History
WSP-W40 Rev. 3.2 Date Version Comments Jul. 05. 2021 RX Revision http://www.woosim.com...
