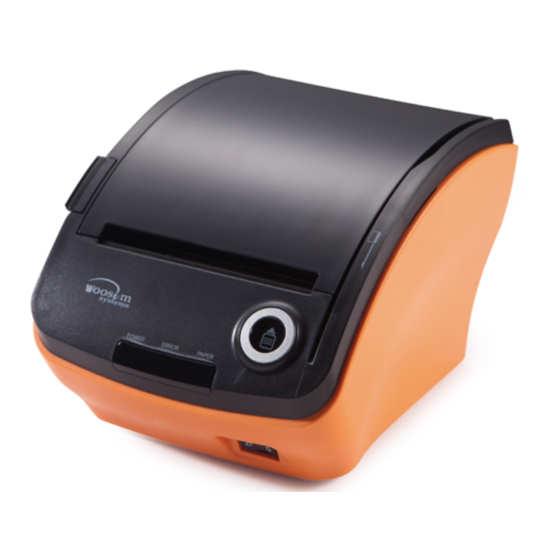

  • Page 1 WSP-DT381 MODEL (3inch Desk Top Printer) Rev. 1.1 All specifications are subjected to change without notice. http://www.woosim.com...
  • Page 2 Copyright ⓒ2017 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 WSP-DT381 Rev. 1.1  Introduction The WSP-DT381 is the ideal solution for POS system, kitchen printer, Electronic scale, Measuring equipment, Lottery etc. The general features of WSP-DT381 printer are as follows: Very silent printing thru direct thermal printing method ...
  • Page 4 WSP-DT381 Rev. 1.1 Using the Printer  ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas. Suitable environment for the use of the printer is as follows: ◆...

  • Page 5: Table Of Contents

    WSP-DT381 Rev. 1.1 CONTENTS 1. Outline................................. 6 1.1. Model classifications............................. 6 1.2. Product Part Number System ........................6 1.3. Specifications..............................7 2. Setting up the printer............................9 2.1. Printer & Accessories............................ 9 2.2. Printer Features ............................10 2.3.

  • Page 6: Outline

    WSP-DT381 Rev. 1.1 WSP–DT381 Model Interface A0 : UART Power None : DC 24V/2.7A Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.

  • Page 7: Specifications

    WSP-DT381 Rev. 1.1 Item Specifications Printing method Thermal dot line printing - Font A, B, C : 48 / 64 / 72cpl Characters per line - KOR, CHN, JPN : 24cpl - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16...
  • Page 8 WSP-DT381 Rev. 1.1 Item Specifications -10°C ~ 50°C (operating) Temperature Environment -20°C ~ 60°C (storage) conditions Humidity 30% - 85% (operating) Activation pulse resistance 100 million pulses Life span (at 25℃ and rated Abrasion resistance 200km (condition “A”, “B”) energy)

  • Page 9: Setting Up The Printer

    WSP-DT381 Rev. 1.1 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. WSP-DT381 AC Adapter Thermal roll paper http://www.woosim.com...

  • Page 10: Printer Features

    WSP-DT381 Rev. 1.1 Part Name ▶ [option] http://www.woosim.com...
  • Page 11 WSP-DT381 Rev. 1.1 D-SUB 9P USB B http://www.woosim.com...
  • Page 12 WSP-DT381 Rev. 1.1 Dimensions ▶ http://www.woosim.com...

  • Page 13: Replacing Paper Roll

    WSP-DT381 Rev. 1.1 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 14: Power Supply

    WSP-DT381 Rev. 1.1 The following specification is requested for Power supply. Input : Rated Voltage : AC 100-240V, 50-60Hz Capable of Supplying : +24VDC at 2.7A Avoid using power supply which its power capacity of power current is extremely high.
  • Page 15 WSP-DT381 Rev. 1.1 DIP SWITCH No. Density High Density Medium Density High Density Low 1000000 Baud Rate 500000 Baud Rate 230400 Baud Rate 115200 Baud Rate 57600 Baud Rate 38400 Baud Rate 19200 Baud Rate 9600 Baud Rate 8 Data Bit...

  • Page 16: Interface

    WSP-DT381 Rev. 1.1 [USB] [UART] ① UART_DSUB9P Pin No. Signal Name Direction Function Output Transmit Data Input Receive Data Signal Ground < D-SUB 9P-Right Angle(Female TYPE)> ② USB Pin No. Signal Name Function USB_VCC DATA ‘-’ DATA ‘+’ Ground < USB (B TYPE)>...

  • Page 17: Bluetooth

    WSP-DT381 Rev. 1.1 Category Specification Bluetooth Spec. Bluetooth Ver3.0 / Class2 (10m) Frequency band 2.4GHz Protocol L2CAP, RFCOMM, SDP Profile GAP, SDAP, SPP Category Specification Function Radio frequency transfer Module (IEEE802.11b/g/n standard conformity) Frequency band 2.4GHz Channel 1 to 13 channel...

  • Page 18: Using The Printer

    3. Printer will print out the current status. (F/W version and set contents) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. In case printer does not work properly, please contact Woosim customer service center. ※ http://www.woosim.com...

  • Page 19: Consumable Parts

    WSP-DT381 Rev. 1.1 Type : Thermal Paper Paper width : 80mm Paper thickness : 60±5㎛ Outer diameter : Ø80mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has near end mark printing on its near end is recommended.

  • Page 20: Revision History

    WSP-DT381 Rev. 1.1 Date Version Comments Jul. 14. 2015 Initialize Change page layout (B5→A4) May. 10. 2017 * Delete address http://www.woosim.com...
