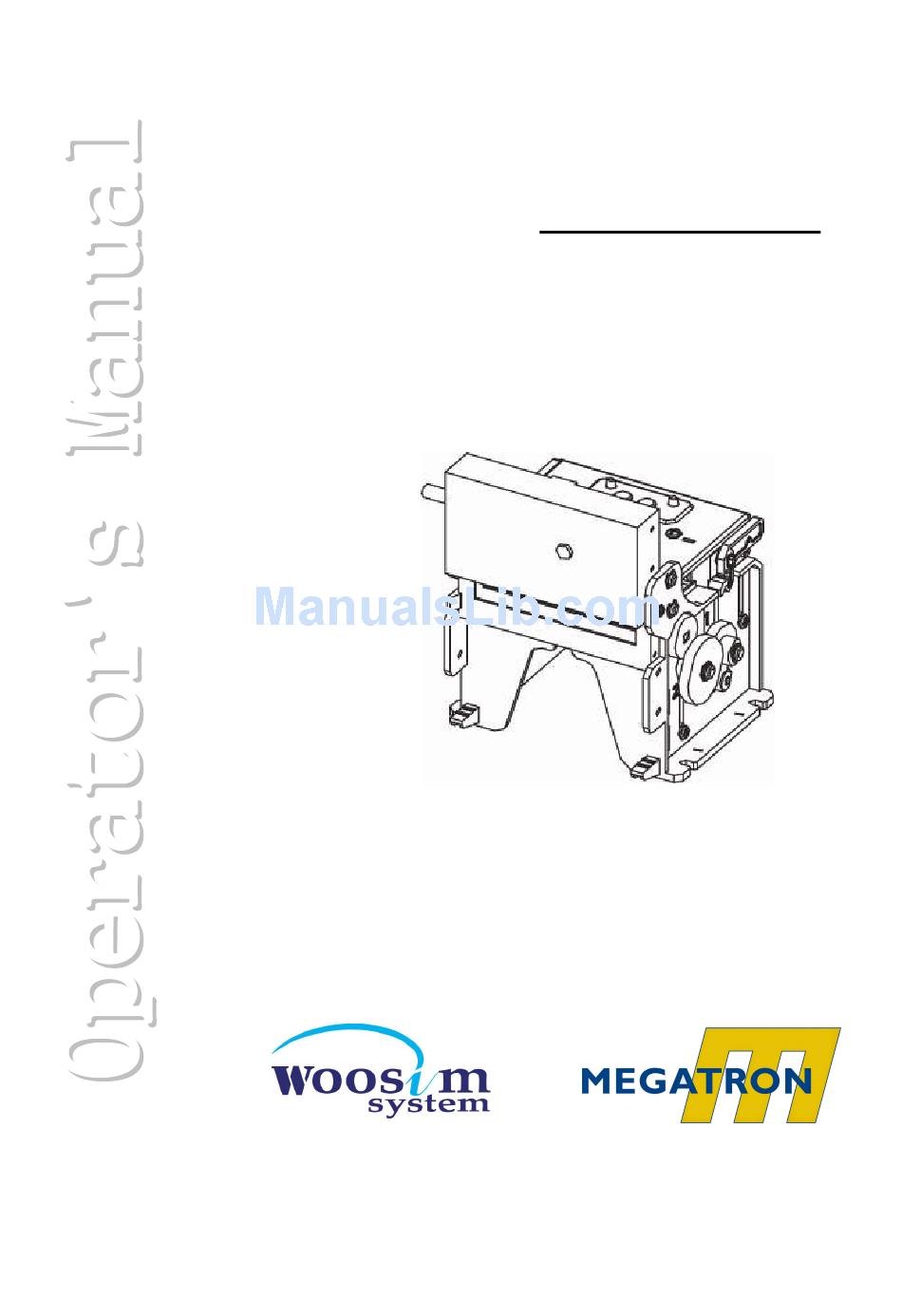

- Page 1 WSP-BT200 MODEL (Kiosk & Ticket Printer) All specifications are subjected to change without notice Megatron S.A.R.L - 451 route des Blaves - Z.I de Noyer 74200 ALLINGES - FRANCE +33 (0)4.50.70.54.54 http://www.megatron.fr...
- Page 2 150mm/sec high-speed printer. The 2inch thermal panel printer is most suitable for ticketing applications, such as transportation, coupons, industrial machine, lottery, ATM and kiosks. The general features of WSP-BT200 printer are as follows: Very silent printing thru direct thermal printing method. High speed(150mm/sec, MAX) High resolution(203dpi : 8dots/mm).
-
Page 3: Operating Precautions
¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas. Suitable environment for the use of the printer is as follows: ◆... -
Page 4: Table Of Contents
CONTENTS 1. Outline............................. 5 1.1. Model classifications ......................5 1.2. Product Part Number System ..................5 1.3. Specifications ........................6 2. Setting up the printer ........................ 7 2.1. Printer & Accessories ......................7 2.2. Printer Features ........................8 2.3. -
Page 5: Outline
WSP-BT200 ( Model name Interface None: UART Power None : DC 24V Model name / Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. -
Page 6: Specifications
Item Specification Direct thermal line printing Printing method Printing method Direct thermal line printing Character per line Characters per line 42cpl (MAX) Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request. -
Page 7: Setting Up The Printer
& & When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance. WSP-BT200... -
Page 8: Printer Features
Connecting Ground Cable to Ground(0V) or to the land, if Ground Cable is not correctly connected, it will cause malfunctioning or the printer will be damaged. -
Page 10: Replacing The Paper Roll
Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. 2. -
Page 11: Power Supply
The WSP-BT200 printer is equipped to an external supply electrical power. The functions assigned to the pins in the connector are as follows: WARNING A wrong connection of power supply connector could be damage the printer. 51004-0400 (MOLEX) Applicable connector : MOLEX 53014-0410 or equivalent. -
Page 12: Sensor
① Sensor 1 : Paper Out Sensor When using the general thermal paper, the sensor which detects the exhaust presence of the paper. ② Sensor 2 : Black Mark Sensor When using label paper etc., is detected with the black mark sensor. ③... -
Page 13: Interface
The WSP-BT200 printer has a UART(RS-232C or TTL) interface and is connected by means of 3 pin female connector. In the following table, the signals present on the connector are listed: Name Direction Function Output Transmit Data Input Receive Data Ground <Molex : 51004-0300 >... -
Page 14: Using The Printer
Button - FEED Button : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - CUTTER Button : Cutter Button is used when once cutting the paper. u Panel lamp Printer is ON and ready to receive data. -
Page 15: The Self Test
The self test procedure will check most of the printer functions. For self test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly. 2) The Self-Test prints the current printer status, which provides the control ROM version and the communication method setting. -
Page 16: Consumable Parts
Type : Thermal Paper Paper width : 60mm Paper thickness : 60±5㎛ Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has near end mark printing on its near end is recommended. 2. -
Page 17: Revision History
Date Version Comments May. 11. 2012 Renewal (Spec. modify)
