USER MANUAL – EN
IN 13147 Treadmill inSPORTline inCondi T70i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inCondi T70i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline inCondi T70i

Summary of Contents for Insportline inCondi T70i

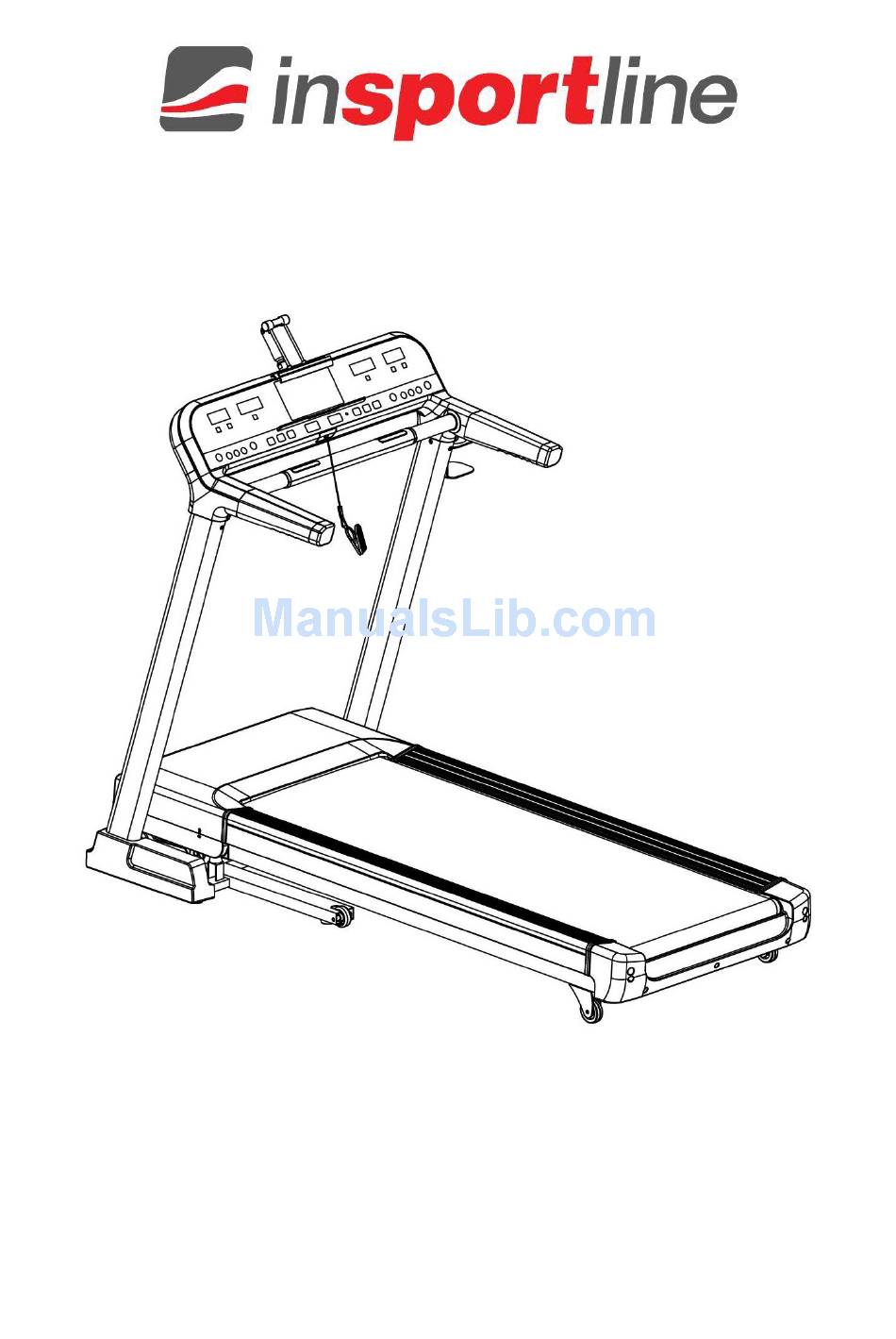

  • Page 1 USER MANUAL – EN IN 13147 Treadmill inSPORTline inCondi T70i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ........................3 Warnings .............................. 3 Electrical Safety Precautions ....................... 3 General Safety Precautions ......................... 3 ASSEMBLY ............................. 5 Package list: ............................5 Assembly tools: ............................ 5 ASSEMBLY STEPS ..........................6 How to use safety key .......................... 9 Folding steps ............................

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Thank you for purchasing this treadmill, it has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product but please take the time to read these instructions, which have been written to ensure that you get the very best from your purchase.
  • Page 4 12. Keep children and pets away from the treadmill. The treadmill is designed for adult use only. 13. Wear suitable clothing whilst using the treadmill. Avoid wearing loose clothing which may get caught in the treadmill or clothing that may restrict or prevent movement. 14.

  • Page 5: Assembly

    ASSEMBLY Please check the package list carefully before assembly. Package list: Description Specification QTY Description Specification A02 Mainframe C06 Right foam handlebar E32 Serrated gasket E22 Cross pan head screw M5*12 E13 Inner hex pan head bolt M8*15 C14 Left bottom cover B08 Cross solid wrench C15 Right bottom cover B09 5# Allen wrench...

  • Page 6: Assembly Steps

    ASSEMBLY STEPS Step 1: Open the package and put the mainframe on the floor. Attention: Don’t open the packing belt (A) before set up of the treadmill. Step 2: Lift up column A06 first; Fix the column A06 to the mainframe A02 with inner hex pan head bolt E13 and serrated gasket E32 by 5# Allen wrench B09.
  • Page 7 Step 3: 1. Connect the monitor cable D03 with D04. 2. Fix the monitor D01 to the left and right column A06\A07 with inner hex pan head bolt E13 and serrated gasket E32 by 5# Allen wrench B09. Attention: Please make sure cables are connected well before fasten.
  • Page 8 Step 5: Fix the left and right foam handlebar C05\C06 to the monitor A04 with cross pan head bolt E22 and big washer E39 by cross solid wrench B08. Step 6: Fix the left and right bottom cover C14\C15 to the mainframe. Attention: the structure of left and right bottom cover is buckle design.

  • Page 9: How To Use Safety Key

    Step 7: Fix the bottle holder B01 to the right column A07 with cross pan head bolt E22 by solid cross solid wrench B08. Step 8: 1. Cut off belt A; 2. Insert the safety key D07 into the monitor C01. How to use safety key 1.

  • Page 10: Folding Steps

    Folding steps Folding up Hold the running deck which showed in “B” position and then fold it up with the arrow direction until you hear a “bang” voice from the air cylinder. Attention: it is forbidden to fold up when the machine is in running or incline mode.
  • Page 11 Transport tips First hold the running board which showed in B position; Step onto the transportation wheel D; Pull the machine down; And then move it freely.

  • Page 12: Operation Introduction

    OPERATION INTRODUCTION Icon Function description iPad/mobile phone holder TFT color screen Inclination/calorie window Generally, it shows runner’s calories worked out. it will count from 0 to 999, when up to 999, it will count again from 0; when count down, it will count from the setting data to 0, when down to 0, the machine will stop smoothly and enter into the standby mode.

  • Page 13: Quick Start

    Play/pause key: to stop or restart the music or video. You can press this button to cycle select 3 entertainment modes in sequence: standby mode, audio mode and video mode. When getting through the power and safety key attached, press this button at any time to start the machine.

  • Page 14: Function Description

    Icon description Inclination Hold the pulse sensor for several seconds it shows your current pulse from 50 - 200 bpm. (the date is just for reference, cannot be used as the medical purpose). Time Distance Calorie Speed System will calculate the distance only if the user doing exercise on the machine or it won’t Bluetooth Count/countdown timer...
  • Page 15 finish setting the data, press START and then the machine will begin to move. Displays your exercise time from 0:00 - 18:00 hour. When the countdown reaches 18 hours, it will count again from 0 and the machine will go on working. In the countdown mode it will show a default time from 15:00 to 0:00, when down to 0:00, the treadmill will stop working.
  • Page 16 Contest mode Press MODE key continuously and enter into contest mode. There are 6 distance modes. They are 3.0km, 5.0km, 10.0km, 5.0km, 21.1km and 42.19km. Icon description Display the distance percentage of the computer C is short for The default speed of the computer is 9 km/h. you can computer adjust the computer speed by changing contest time.
  • Page 17 Contest distance Default time 3 km 18:00 5 km 30:00 10 km 01:00:00 15 km 01:30:00 21.10 km 02:06:35 42.19 km 04:13:10 After you finish exercising the system will judge your running performance automatically. Reset program Press PROG to enter into program mode. Press PROG key to select P1 - 24, U1 - U3, HP1 - HP2 and FAT in sequence.
  • Page 18 c. Press the START key to begin exercise. Press the INCLINE +/- or SPEED +/- key to change the inclination or speed during exercise at each stage. d. When you finish the previous stage, the system will go on to the next stage and the speed and inclination will be changed according to the system.
  • Page 19 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
  • Page 20 Manual mode There are 3 user programs. They are user1, user 2 and user3.  Press PROG continuously until user1 appears.  Press incline or speed adjustment key to change the exercise time.  Press MODE key to set exercise data. Press the incline or speed adjustment keys to set the exercise time, speed, and incline for the first stage.
  • Page 21 a. HRC program introduction  Each HRC program is divided into 10 stages.  In standby mode press PROG key continuously until Heart program1 or Heart program2 appeared.  Press MODE key to change the age by INCLINE +/- or SPEED +/- key. After you finish that, the system will suggest you a target heart rate.
  • Page 22  The Aerobic Zone: 70% - 80% of maximum heart rate. It is good for your heart and lungs.  The Anaerobic Threshold Zone: 80% - 90% of maximum heart rate. It is a very high intensive training and suitable for advanced user. ...
  • Page 23 8. Body fat test a. Press PROG continuously to enter into FAT mode. Please set your sex, age, height, and weight first. After that please hold the handle pulse for more than 8 seconds. At last the result will be showed on the right column of BMI. b.
  • Page 24 9. Local music Press the key to change the mode of music and video. Icon description The green words stand for the name of playing music and the size of Song1 the file. 8.36MB The white words stand for the rest of the music and the size of the file.

  • Page 25: Safety Key Function

    Icon Description The green words stand for the name of playing video and the size of ZY-VIDEO-3 the file. 160.06MB. The white words stand for the rest of the videos and the size of the file. 01:56 The data Stands for the progress of the playing video. 05:00 The data stands for the total time of the video.

  • Page 26: Lubrication Remind Function

    The display shows E03 after switch on - no sensor signal. A. If the motor starts working for about 5 - 8 seconds and then the monitor displays E03. It stands for no speed signal. Please check whether the speed sensor is connected well or not. In addition, please check whether the sensor is broken or not.

  • Page 27: Tips For Stretching

    3. After you finish the lubrication, please press the START key for 3 seconds and the tip will be swept off automatically. Then the system will display a treadmill work report. 4. Press the START key shortly and then the treadmill will enter into standby mode. TIPS FOR STRETCHING ...

  • Page 28: Hamstring Stretch

    Hamstring Stretch  Keep front leg straight, hands on bent leg (thigh). Push down and out until you begin to feel the stretch in back of knee (or straight leg).  Keep knees unlocked and back straight.  Hold for about 10 seconds. ...

  • Page 29: Inner Thigh Stretch

    Inner Thigh Stretch  Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible.  Hold for about 10 seconds. MAINTENANCE Warning: Before cleaning the machine, please make sure the power has been switched off. 1.
  • Page 30 CAUTION: In order to prolong the lifespan of the treadmill, we suggest switching off the treadmill for about 10 minutes after 2 hours exercising. If the running belt is too loose or tight, it will damage the treadmill. So keeping a suitable tightness is very important. We suggest you grasp the running belt and pull it up to a certain distance until you cannot pull it up anymore.

  • Page 31: Explosive Drawing

    EXPLOSIVE DRAWING...

  • Page 33: Part List

    PART LIST Description Specification Description Specification Bottom frame O ring Mainframe Top cover of the motor Incline frame Bottom cover of the motor Monitor frame Left bottom cover Handlebar pulse frame Right bottom cover Left column Rear protection cover Right column Side rail Motor seat Left side rail cap...
  • Page 34 Description Specification Description Specification Magnetic sensor Hexagon socket button M8*30 head screw AC single branch wire Inner hex pan head bolt M8*20 brown 350mm AC single branch wire blue 350mm Inner hex pan head bolt M8*15 Earth wire Inner hex pan head bolt M8*40 DC motor Inner hex pan head bolt...

  • Page 35: Terms And Conditions Of Warranty, Warranty Claims

    Hexagon socket button Hexagon socket button M8*70 M8*45 head screw head screw Cross recessed Φ5*φ13*1.0 M8*40 Big flat washer countersunk head tapping screw Hexagon socket button M8*40 head screw TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure.
  • Page 36 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk...
  • Page 37 Date of Sale: Stamp and Signature of Seller:...
