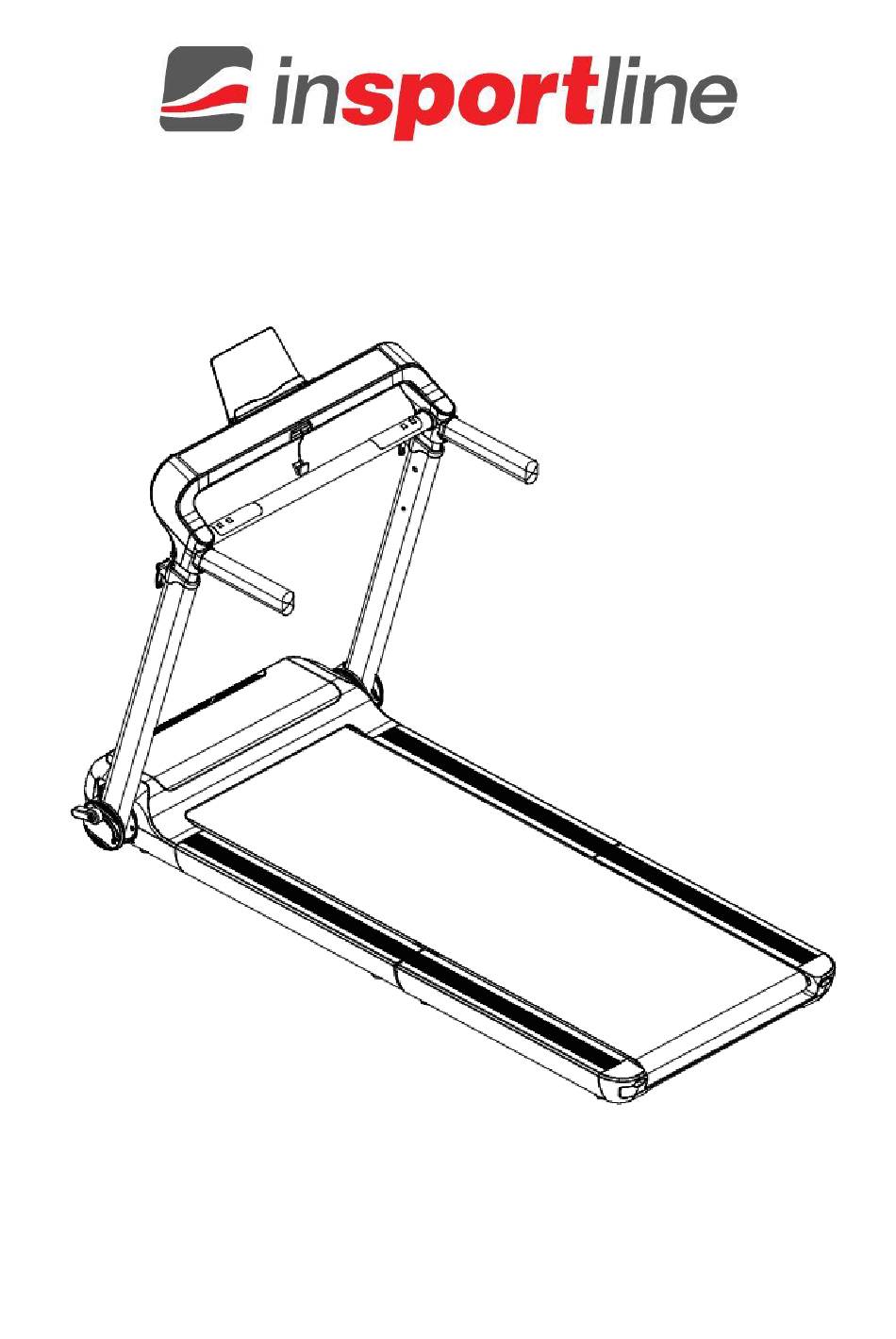

- Page 1 USER MANUAL – EN IN 26633 Folding treadmill inSPORTline ZenRun Fold 20...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 SPECIFICATIONS ........................... 4 PACKAGE CONTENTS .......................... 4 DIAGRAM AND PARTS LIST ........................5 PRODUCT DESCRIPTION ........................7 ASSEMBLY ............................. 8 CONTROL PANEL ..........................11 PROGRAMS ............................12 FAULTS AND POSSIBLE SOLUTIONS ....................15 MAINTENANCE AND STORAGE ......................16 REGULAR INSPECTION ........................ -
Page 3: Safety Instructions
SevenSport s.r.o. reserves the right to make any changes and improvements to its product without prior notice. Visit our website www.insportline.eu where you will find the latest version of the manual. SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. -
Page 4: Specifications
• Any part of the treadmill cannot prohibit the movement of the user. • Do not use outdoors. • Do not expose to direct sunlight. • Do not place in areas with high humidity (pools, sauna etc.) • Continuous use cannot be longer than 2 hours. •... -
Page 5: Diagram And Parts List
DIAGRAM AND PARTS LIST... - Page 6 Name Qty. Name Qty. Motor top cover Left post Motor bottom cover Right post Motor Column housing Controller Column cover Motor fixer Sealing pad Magnetic ring Quick-release hand screw Switch Spacer sleeve Self-reset switch Salary pad Socket Treadmill Wheels Sticker Motor mounting plate PVC mat Front roller...
-
Page 7: Product Description
M8x55 bolt M5x10 bolt M8x75 bolt M8x20 bolt Flat washer Φ8 ST4x15 bolt M5x10 bolt bolt M6x15 bolt Washer M4x10 bolt bolt ST3x10 screw ST4x10 screw M8x35x20 bolt M6x20 bolt M8x15 screw ST4x20 screw Flat washer Φ8 M5x20 bolt M8x45x20 bolt M5 nut M10x55x25 bolt ST4x10 screw... -
Page 8: Assembly
ASSEMBLY Step 1 Remove the treadmill from the packaging material. Step 2 Using the handles (1), lift the posts from their initial position (A) to an upright position. Lock in the up position. - Page 9 Step 3 Release the levers (1) and adjust the height of the control panel (2). Then secure the levers. Step 4 Lift the tablet holder (1) and secure by pulling out the pin (2).
- Page 10 Step 5 Unfold the running board as shown. Make sure the running board is on a flat surface. Step 6 Check that the treadmill is level. Step 7 Once the running surface is unfolded, it needs to be secured with security clips. Remove the clips when you need to fold the tredmill.
-
Page 11: Control Panel
Step 8 Attach the handles (1) with hand knobs (2). Step 9 Connect the safety key. CONTROL PANEL Plug into the power supply. The control panel will light up. Connect the safety key and attach it to your clothing. The system monitors for any abnormalities, if any problem occurs the treadmill will stop, and an audible signal will sound. -
Page 12: Programs
FUNCTION Distance Calories TIME Time PULSE Pulse SPEED Speed STEP Number of steps BUTTONS By pressing a button, you can choose from preset programs P01 - P36, user programs U1 - U3 and a body fat measurement program By pressing the button, you can set programs for counting time - distance - calories - regular program. -
Page 13: Preset Programs
Only one type of countdown can be set at a time. The set value will always be subtracted, other values will be added. If you run a manual program without a countdown, all values will be added, press STOP to stop, the treadmill will begin to slow down until it stops and then all values will reset to their original settings. - Page 14 F5 - all values are set, grab the sensors on the handles and after 8 seconds all BMI will be displayed. The measured values are indicative and do not serve for medical purposes. SAFETY KEY Before any use of the treadmill, clip the safety key to your clothing. If necessary, remove the key from the control panel, the treadmill will stop, the display will show "---".
-
Page 15: Faults And Possible Solutions
FAULTS AND POSSIBLE SOLUTIONS A sudden stop The safety key is not secured Plug in the safety key properly Console error Ask service for repair Replace buttons Buttons are not responding communication cable Replace the motherboard for the buttons Replace the console E1 communication error The cable is loose or damaged Check the cable between the... -
Page 16: Maintenance And Storage
correct position connection of the key Intermittent current fault Check cable connections Switch in wrong position Turn the switch to the correct position The treadmill rubs Slightly lubricated surface Lubricate The running belt is too tight Adjust the running belt tension The treadmill is slipping The running belt is too loose Tighten the running belt... -
Page 17: Safe Exercising
SAFE EXERCISING Please consult your doctor before starting any exercise program. They can recommend the frequency, intensity and duration of the exercise based on your age and health condition. If you feel any or similar symptoms during exercising – pain or tightness on the chest, irregular heart rate, shortness of breath, dizziness or other discomfort - please stop immediately! Consult your doctor before you continue exercising. -
Page 18: Warm - Up Exercise
exercise for 1 hour at this speed. You can exercise while watching TV. Add 0.3 km/h speed every time you see advertisements and return to the former speed by the end of the advertisement so that you increase the intensity only during advertisements. Slow down for at least 4 minutes. CLOTHING All you need is a pair of shoes, which let you stretch your feet fully and at the same time don’t stick to foreign matters under your shoe’s soles, so that you do not carry dirt onto the running belt and running... -
Page 19: Important Notice
IMPORTANT NOTICE • This treadmill comes with standard safety regulations and is suitable home use. Any other use is prohibited and may be dangerous to users. We are not responsible for any injury caused by improper and forbidden use of the machine. •... -
Page 20: Lubricating The Treadmill
LUBRICATING THE TREADMILL Lubricating the running belt & the running board is essential as the friction affects the life span and operations of the treadmill. Therefore, we suggest you to inspect the running belt regularly. WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or repairing the unit. -
Page 21: Environment Protection
ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. By proper disposal you will protect the environment and natural sources. Moreover, you can help protect human health. - Page 22 Warranty Period The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
- Page 23 SEVEN SPORT s.r.o. Stores inSPORTline SK, s.r.o. Strakonická 1151/2c, Praha 5, 150 00, ČR Headquaters, warranty & service center: Električná 6471, Registered Office: Dělnická 957, Vítkov, 749 01 Trenčín 911 01, SK Headquaters: Warranty & Service: Čermenská 486, Vítkov 749 01...
