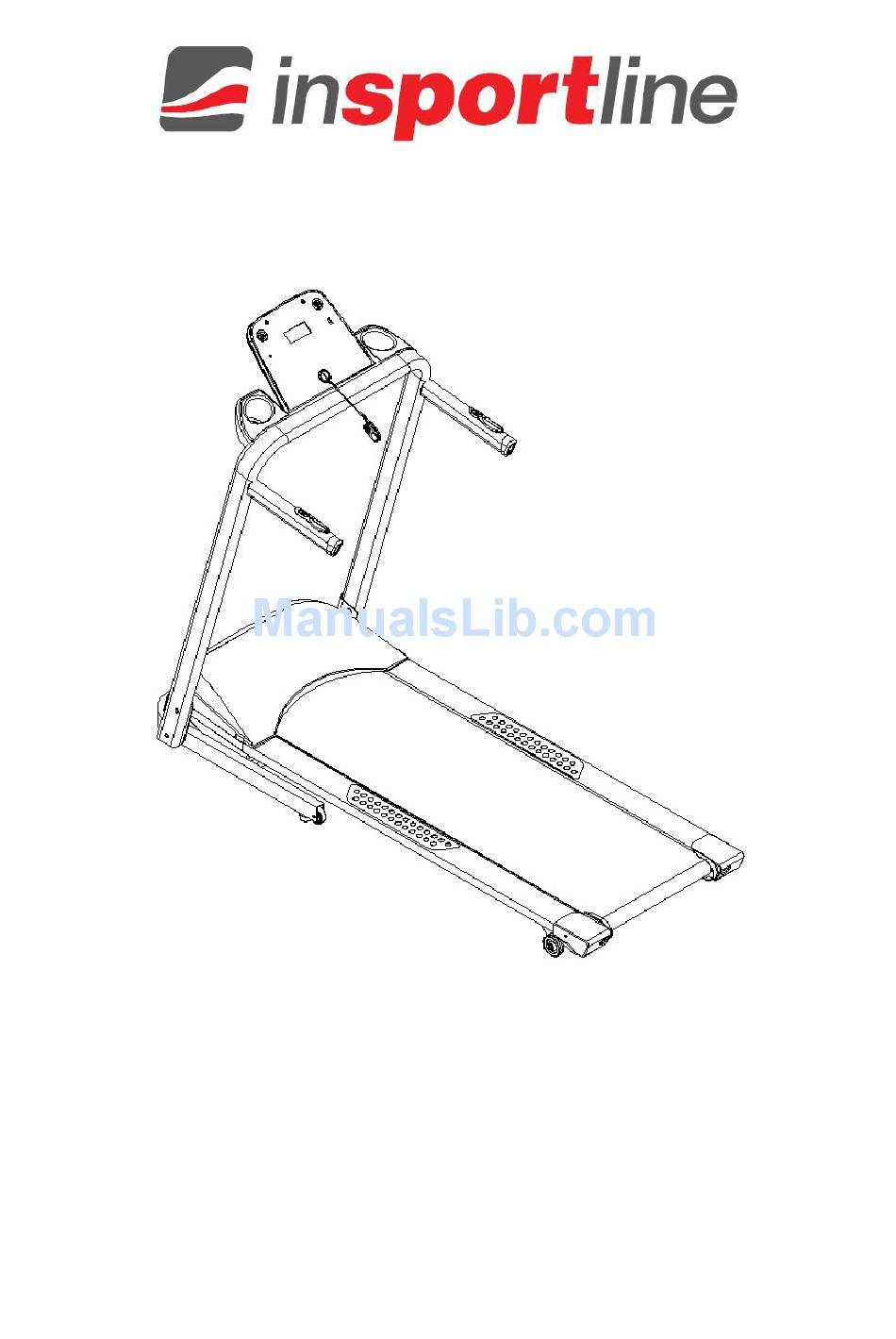

- Page 1 USER MANUAL – EN IN 12999 Treadmill inSPORTline SANGAR...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY PRECAUTIONS ....................3 ASSEMBLY INSTRUCTIONS ......................... 4 Assembly steps ............................ 5 Folding instuctions ..........................7 TECHNICAL PARAMETERS ........................8 GROUND GUIDE ............................ 8 OPERATION GUIDE ..........................9 WIndow display ............................ 9 Button Function ..........................10 Quick start-up (manual) ........................10 Manual mode ............................. -
Page 3: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS 1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be grounded well. If it has breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. 2. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS When you open the carton, you will find the below spare parts: Spare parts list Q’TY Q’TY DESCRIPTION SPEC. DESCRIPTION SPEC. Main Frame Bolt M6*12 Left Upright Bolt M8*40 Right Upright Bolt M8*20 5# Allen 5 mm ARC Washer Wrench Allen Wrench S=13, 14,... -
Page 5: Assembly Steps
Assembly steps Notice: Do not turn power on before assembly is done. Step 1: Open the carton, take out the MAIN FRAME (A) and put on the ground. Step 2: Use Allen Wrench (12), Bolt (41), lock the left Computer set (A-1) onto the main frame. ATTENTION: Please keep all the computer wires to be inside of the computer A-1. - Page 6 Step 4: 1. Use 5# wrench (11), Lock the Upright (A-2) onto the Main Frame (A-3) by Bolt M8*40 (#46) and Lock Washer (#59). 2. Use 5# wrench (11), Lock the Upright (A-2) onto the Main Frame (A-3) by Bolt M8*20 (#50) and ARC Washer (51).
-
Page 7: Folding Instuctions
Attention: Please don’t put the power on until you make sure that all the above steps are finished and all the bolts are tightened well. Please also read all the following instructions when you operate the treadmill. Folding instuctions Pulling up: Hold the place F &... -
Page 8: Technical Parameters
TECHNICAL PARAMETERS GROUND GUIDE This product must be grounded. If it malfunctions or breaks down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 9: Operation Guide
OPERATION GUIDE WIndow display 1. “TIME” Window: Display the running exercise time. Counting from 0:00 to 99:59, when it reaches 99:59, the speed of the treadmill will be slowly decreased. After the treadmill stops completely, the unit will become STANDBY status after 5 seconds. Counting from the target data down to 0:00, when it reaches 0:00, the speed of the treadmill will also be slowly decreased. -
Page 10: Button Function
same time, pulse range is 50 - 200 hypo/min. (the data is just for reference, can not be used as medical data). 5. “CAL.” Window: Display the runner’s calories. Counting from 0 to 999, when it is over 999, the display will be reset to be 0 and the counting will start again from 0 to 999. -
Page 11: Manual Mode
Manual mode 1. When the treadmill is under the standby state, press START button, the treadmill will start to run from the speed of 1.0km/h. The other windows will also start to count up from “0”, press “SPEED+”, “SPEED-” to change the speed. 2. -
Page 12: Hrc Program (Option)
1. User’s programs setting: Under standby state, press the button “PROGRAM” until it shows the user’s program（U1-U3）, then press the “MODE” to enter into the setting. For the first time section, press “SPEED+”、 “SPEED -” to set the speed. Press “MODE” to complete the setting of the first time section and go on to the setting of the next section until all the 10 sections are completed. - Page 13 1. When the treadmill is on, press “PROGRAM” button till the speed window display “HRC”. The highest speed is 10.0km/h or 6mph (NOTE: Press “START” button when window shows HRC, the program will automatically provide the parameter: age 30, pulse: 114) 2.
-
Page 14: Safety-Lock Function
to the body proportion. The body FAT suits for any male and female, offering reference information of adjusting people’s weight. The ideal FAT should be 20-25, if under 19, it means too thin. If between 25 and 29, it means overweight, if over 30, it means obesity. (The data is just for reference, can not be used as medicinal data). -
Page 15: Maintenance Instructions
exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP. 2. The Exercise Phase This is the stage where you put the effort in. After regular use, the muscles in your legs will become Stronger. -
Page 16: Cleaning
Picture A: If the belt has drifted to the RIGHT Picture B: If the belt has drifted to the LEFT WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR SERVICING THE UNIT. Cleaning General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. -
Page 17: Exploded Drawing
EXPLODED DRAWING... -
Page 18: Parts List
PARTS LIST DESC. SPEC. Q´TY DESC. SPEC. Q´TY Base Main Frame ARC Washer Main Frame Bolt M4*8 Upright Frame Bolt M6*22 Computer Frame Screw ST4.0*15 Wheel Base Frame Screw ST4.2*45 Handle Bar Tube Frame Flat Washer Motor Base Spring Washer Enhance Tube Lock Washer Front Roller... -
Page 19: Trouble Shooting Guide
Moving Wheel Pulse Key-Press Up Wire Flat Foot Pad Bellows EVA Pad AC Single Wire Safety Key Spring Ball AC Single Wire Loudspeaker (100) Bolt M8*25 Loudspeaker Press Board Bolt M4*16 Screw Bolt M5*8 MP3 Connection Wire Bolt M6*12 Audio Plug Connection Wire Bolt M6*55... -
Page 20: Terms And Conditions Of Warranty, Warranty Claims
The probable reason is that the speed sensor signal has not been received during 10 seconds, check if the sensor signal light of the bottom control board is flashing, if not, please use the new part to do the replacement. Check if the sensor plug is connected well or if the magnetic sensor is broken, re-connect the sensor plug or change the magnetic sensor with the new one. - Page 21 By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features. The Warranty does not cover defects resulting from (if applicable): ...
- Page 22 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk Date of Sale: Stamp and Signature of Seller:...
