6.5.2

Board power supply - Hardware configuration

The power supply is configured by setting the related JP3, JP29, and JP37 jumpers as described in
Jumper
JP3
JP29
UM2662 - Rev 4
Table 10.
JP3 is used to measure current consumption manually with a multimeter.

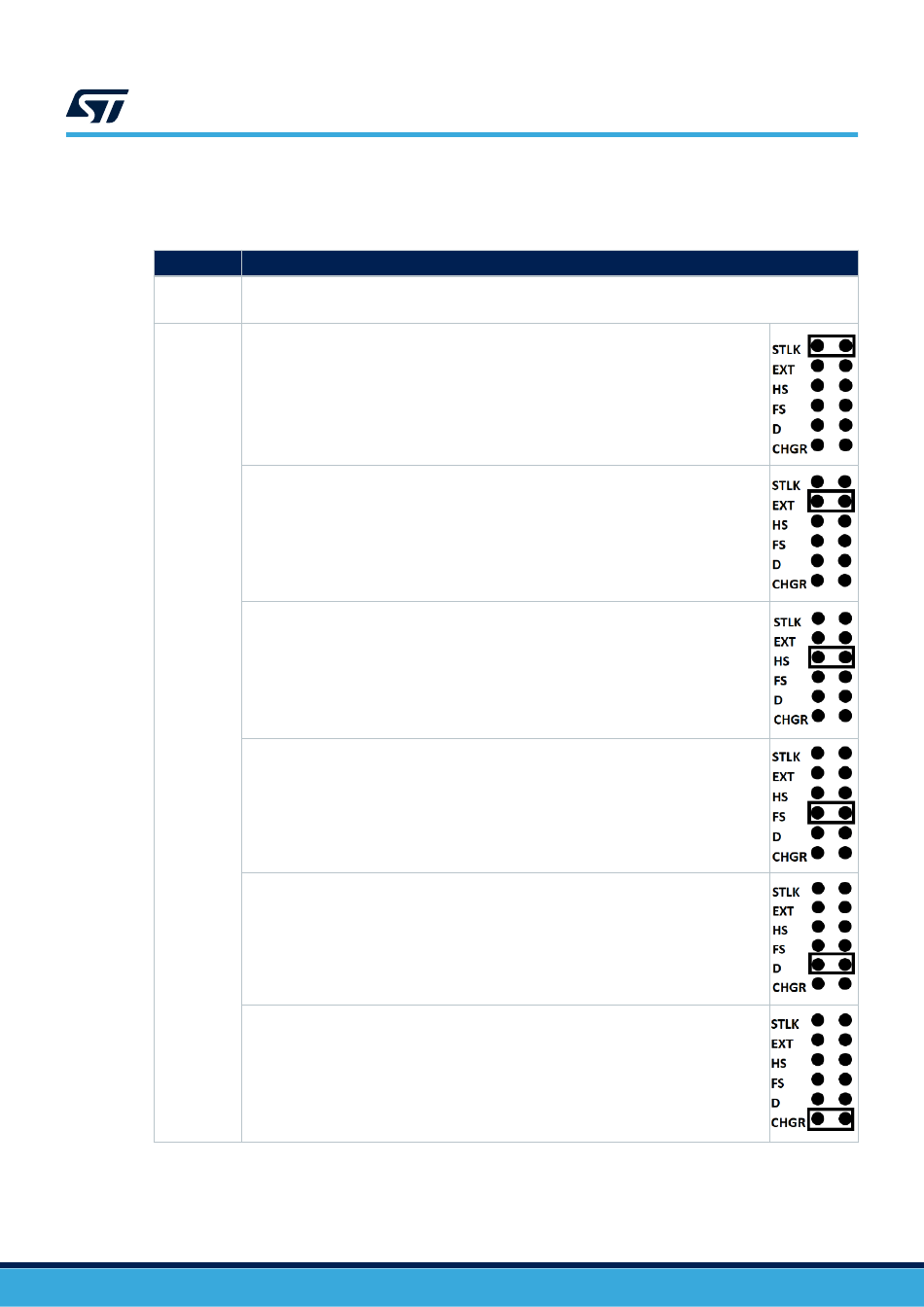

JP29 is used to select one of the six possible power supply resources:
For power supply, from the STLINK-V3E USB connector (CN21) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For the power supply socket (CN17) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply from USB OTG HS (CN14) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply from USB OTG FS (CN27) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply, from the daughterboard connectors (CN5 and CN6) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply from a USB wall charger plugged into CN21
to STM32H7B3I-EVAL, JP29 is set as shown on the right.
Power related jumpers
Description (1)
ON
