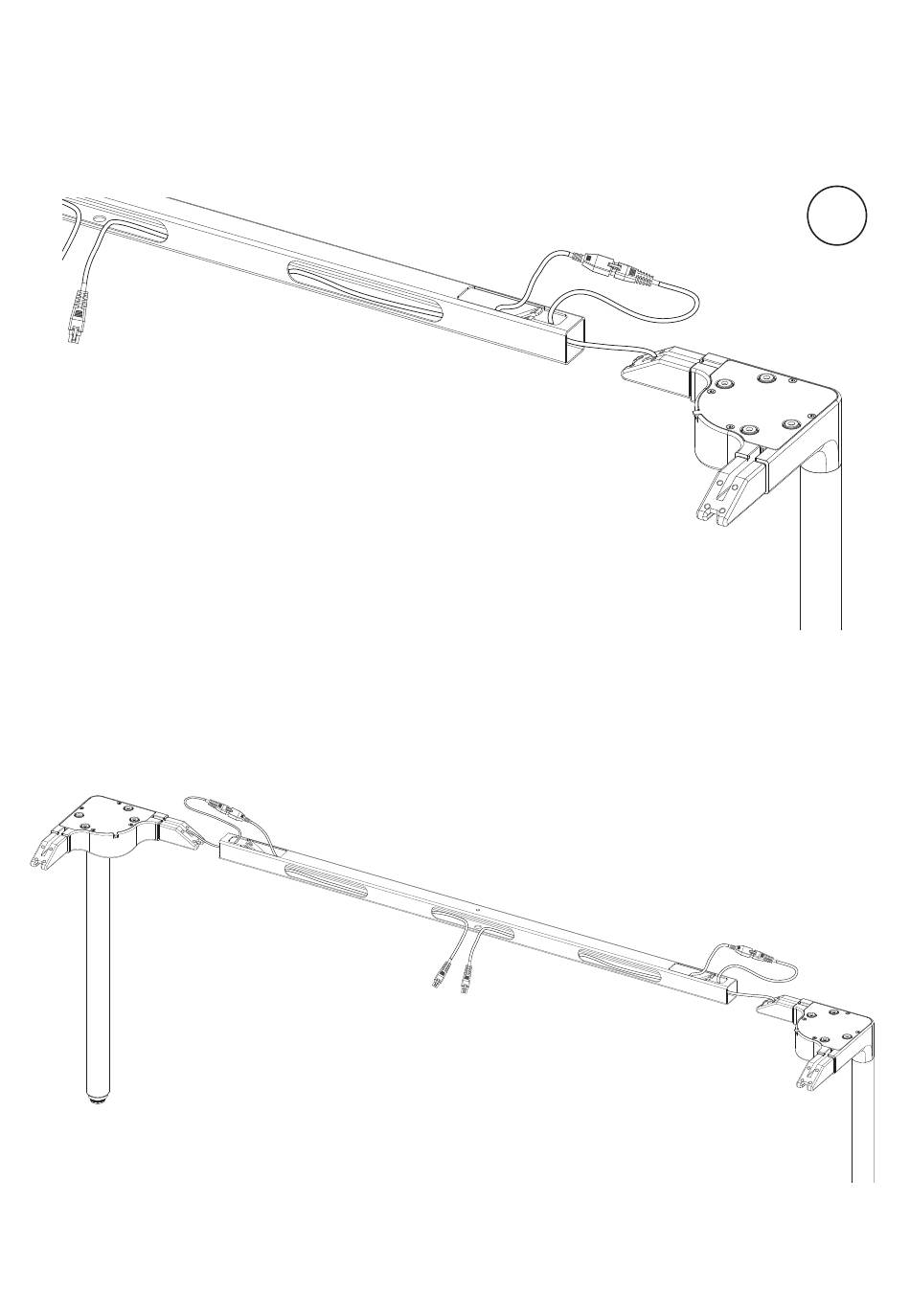

Frame Assembly

5

Repeat steps 1-4 on the other side of the crossbeam using a leg marked (R)

③

6

Repeat steps 1-5 using the remaining two legs and long crossbeam

NOTE: Frame proportions may vary based on size and model purchased.
