Assembly Instructions
Frame Assembly
1

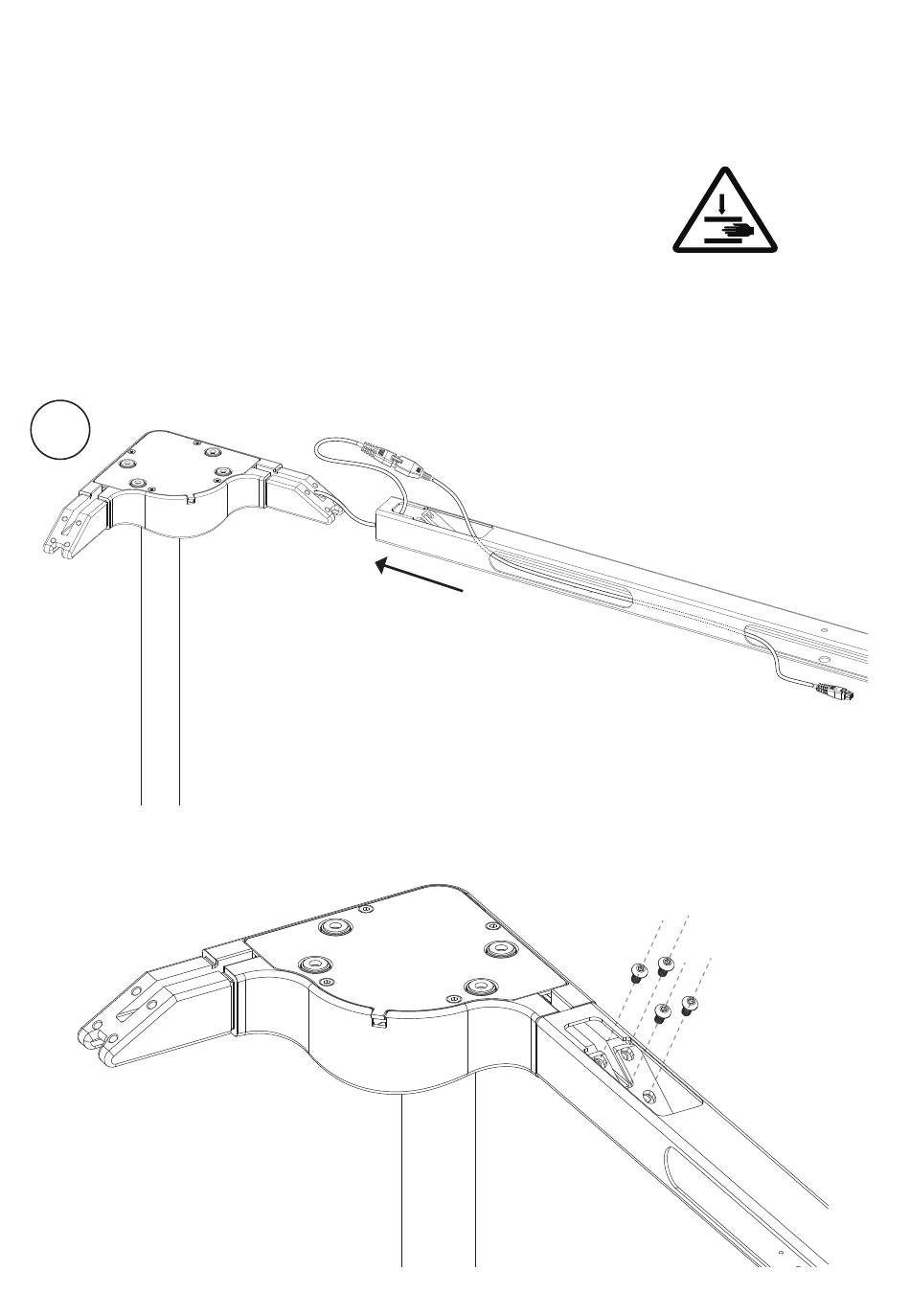

Using a leg marked (L), connect one extension cord, to the leg power cable. Thread the cable
through the inner channel on one long cross beam.
2
Slide the long crossbeam over the mounting post, being careful to first
feed the cable connection through beam channel. Be careful to avoid
pinching fingers between the beam and the leg.
3
Feed the cable through the center punchout on the inside of the long cross beam.
CAUTION: Crushing hazards
During moving and installation, safety protection measures are necessary.
L
4
Loosely install the 4 connecting screws with provided hex key. Do not tighten.
③
②
①
④
