INSTALLING THE UNIT (CONTINUED)

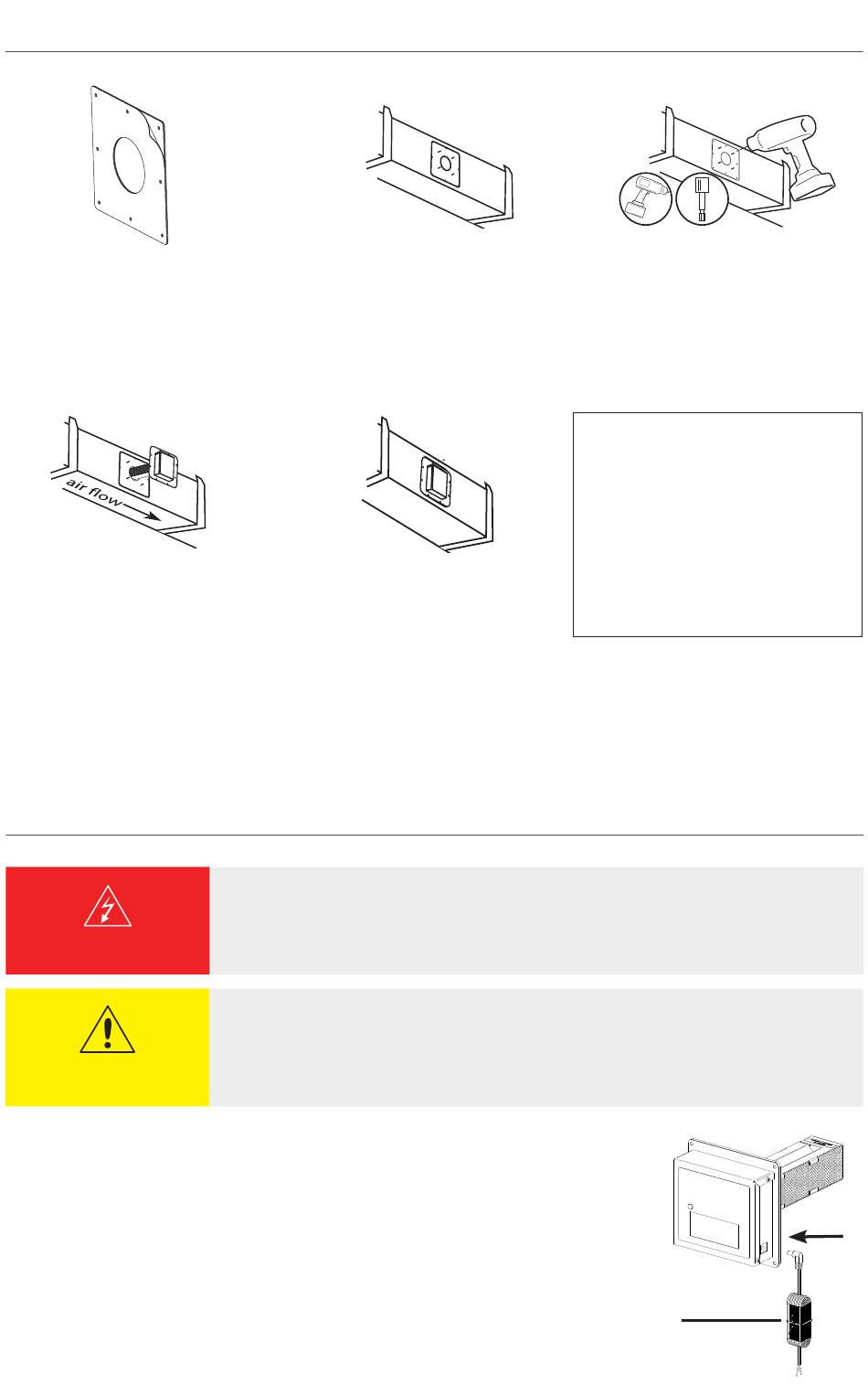

5. Remove backing from Duct
Mounting Plate adhesive
gasket.
8. Insert unit into opening.
Be sure the air will pass though
the activTek
Cell Assembly
®
Honeycomb matrix.
NOTE: The Air Scrubber
Do not install where power to the unit will be cycled on and off.
WIRING THE UNIT
WARNING
CAUTION
1. The Power Cable is separate from the unit. Attach the Power Cable to the
transformer, then plug the Power Cable into the side of the unit.
2. Check indicator light for proper operation with fan on.
6. Center openings and press Duct
Mounting Plate onto duct. The
adhesive gasket will hold the
mounting plate in place.
9. Secure the unit to the
Duct Mounting Plate with
four (4) off-white thumb
nuts.
Ozone by activTek
+
®
Disconnect power at the breaker or fuse panel before servicing unit.
Always follow OSHA lockout procedures to prevent accidental exposure
to electrical energy.
• Hard wiring unit into HVAC system should be done by a licensed HVAC
installer or qualified electrical contractor only
• The Air Scrubber
install where power to the unit will be cycled on and off
requires power 24/7.
Ozone by activTek requires power 24/7; DO NOT
+
1/4
7. Secure the Duct Mounting
Plate using eight (8) #8
self-tapping screws.
Vertical Mount Option
If installing in a vertical up flow
duct, it may be necessary to rotate
the activTek Cell Assembly 90
(degrees) to keep the honeycomb
in the airflow. Use (2) black thumb
nuts to secure the activTek Cell
Assembly onto the unit.
Power Cable
7
